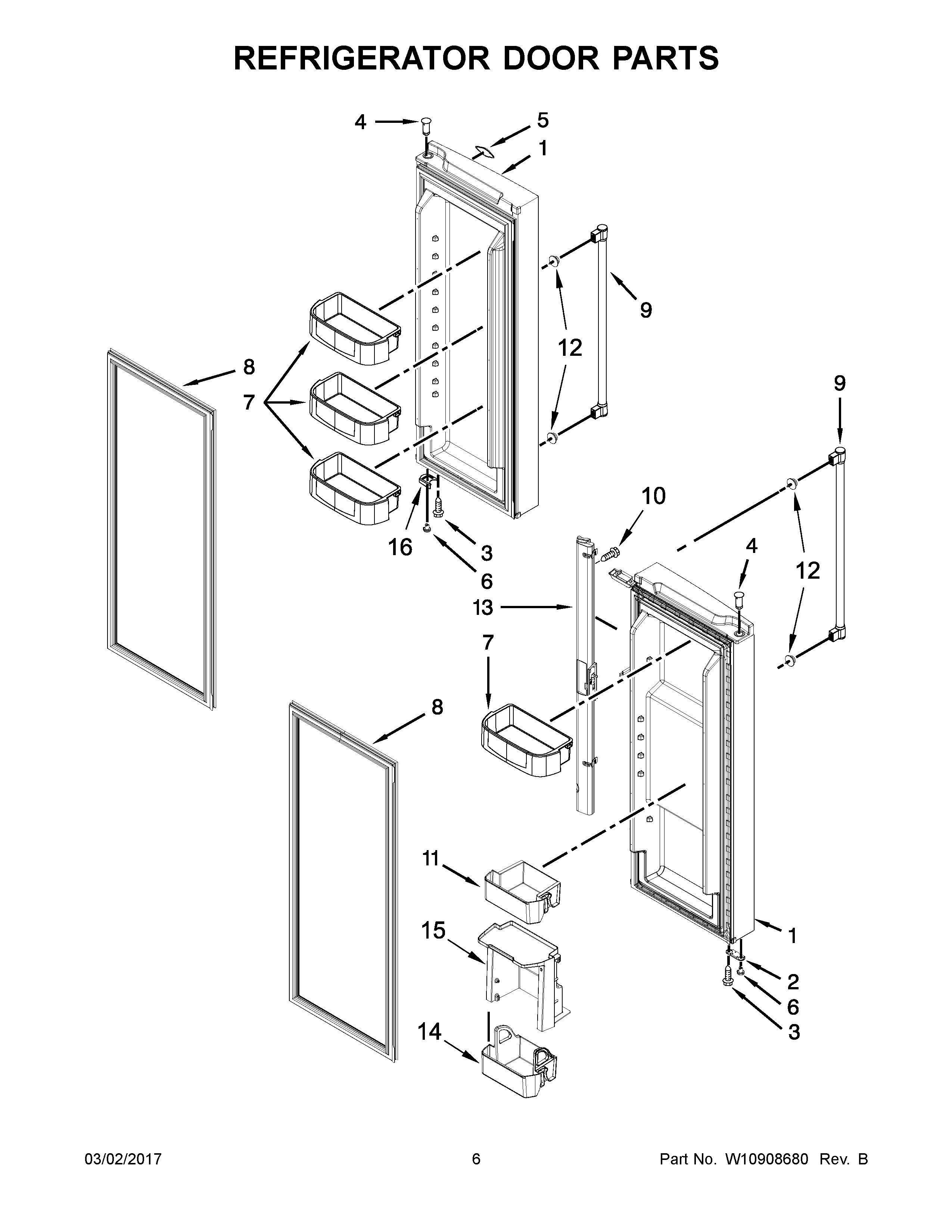

MFF2055FRZ00 04 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1	MAY W10858415
1A	DOOR, REFRIGERATOR (INCLUDES ILLUSTRATION 8) RIGHT HAND (STAINLESS)
2	MAY 2189202
3	MAY 489276
4	THIMBLE (WHITE)
5	BADGE
6	CLOSURE, DOOR
7	BIN, MEDIUM
8	GASKET, DOOR (GREY)
9	ASSEMBLY, HANDLE (STAINLESS)
10	Screw (4)
11	BIN, SHALLOW
12	STUD SCREW
13	ASSEMBLY, MULLION (GREY)
14	BIN, LOW PROFILE
15	COMPARTMENT, UTILITY
16	BRACKET, DOOR STOP
