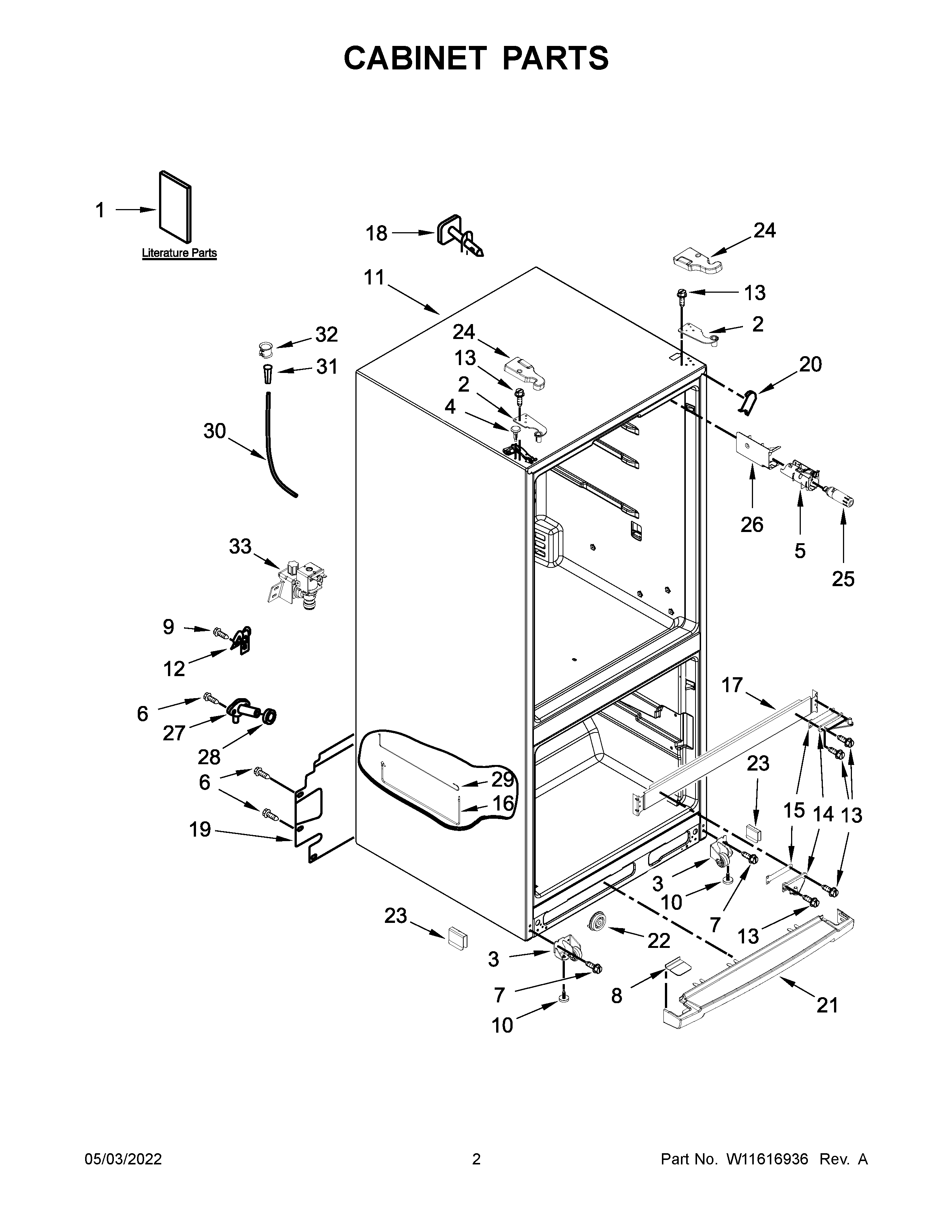

MFF2055FRZ02 02 – CABINET PARTS

Products

PositionProduct
1AENERGY GUIDE
1TECH SHEET
1BUSE AND CARE GUIDE
1CModular Icemaker Service Sheet
2W10546298 Whirlpool Refrigerator Door Hinge
2AW11573371 Whirlpool Refrigerator Door Hinge
3AWPW10359255 Whirlpool Cabinet Wheel
3WPW10359256 Whirlpool Cabinet Roller
4WPW10520307 Whirlpool Refrigerator Replacement Plug Button
5W10844267 Whirlpool Refrigerator Housing
6WP488729 Whirlpool Refrigerator Door Screw
7BOLT
8WPW10353932 Whirlpool Refrigerator Grille Endcap
9WP489442 Whirlpool Refrigerator Screw
10WPW10141622 Whirlpool Leveler
12W11234470 Whirlpool Refrigerator Clamp
13WP489497 Whirlpool Screw
14AW11417064 Whirlpool Refrigerator Door Hinge
14W10770878 Whirlpool Refrigerator Door Hinge
15WPW10450363 Whirlpool Refrigerator Shim
16WPW10449611 Whirlpool Refrigerator Water Tube
18CABINET (NOT A SERVICEABLE PART)
19W11700600 Whirlpool Unit Cover
20W11219642 Whirlpool Refrigerator Filler
21WPW10353935 Whirlpool Refrigerator Grille
22W10331226 Whirlpool Refrigerator Clip
23WP2174706 Whirlpool Refrigerator Pin Hitch
24AW10465767 Whirlpool Refrigerator Cover
24W10465768 Whirlpool Hinge Cover
25EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
26WPW10306392 Whirlpool Refrigerator Filter Cover
27W11292468 Whirlpool Refrigerator Fitting
28WP1106508 Whirlpool Refrigerator Gasket
29W10449880 Whirlpool Microwave Water Tube
30WPW10496649 Whirlpool Refrigerator Water Tube
314387491 Whirlpool Refrigerator Insert
32W10861184 Whirlpool Refrigerator Clamp
33WPW10279909 Whirlpool Refrigerator Inlet Valve
