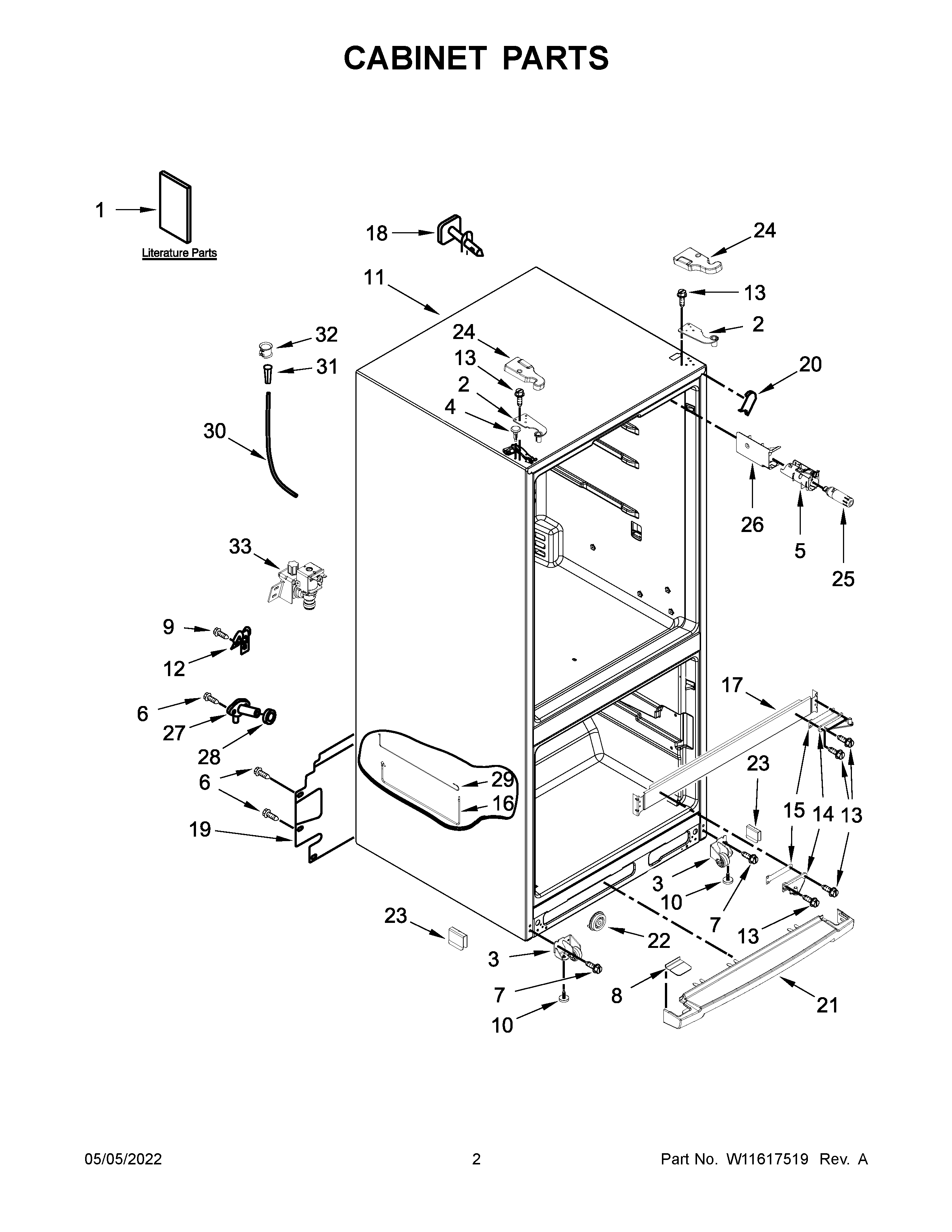

MFF2055FRZ03 02 – CABINET PARTS

Products

Position	Product
1A	ENERGY GUIDE
1	TECH SHEET
1B	USE AND CARE GUIDE
1C	Modular Icemaker Service Sheet
2	W10546298 Whirlpool Refrigerator Door Hinge
2A	W11573371 Whirlpool Refrigerator Door Hinge
3A	WPW10359255 Whirlpool Cabinet Wheel
3	WPW10359256 Whirlpool Cabinet Roller
4	WPW10520307 Whirlpool Refrigerator Replacement Plug Button
5	W10844267 Whirlpool Refrigerator Housing
6	WP488729 Whirlpool Refrigerator Door Screw
7	BOLT
8	WPW10353932 Whirlpool Refrigerator Grille Endcap
9	WP489442 Whirlpool Refrigerator Screw
10	WPW10141622 Whirlpool Leveler
12	W11234470 Whirlpool Refrigerator Clamp
13	WP489497 Whirlpool Screw
14	W10770878 Whirlpool Refrigerator Door Hinge
14A	W11417064 Whirlpool Refrigerator Door Hinge
15	WPW10450363 Whirlpool Refrigerator Shim
16	WPW10449611 Whirlpool Refrigerator Water Tube
18	CABINET (NOT A SERVICEABLE PART)
19	W11700600 Whirlpool Unit Cover
20	W11219642 Whirlpool Refrigerator Filler
21	WPW10353935 Whirlpool Refrigerator Grille
22	W10331226 Whirlpool Refrigerator Clip
23	WP2174706 Whirlpool Refrigerator Pin Hitch
24A	W10465767 Whirlpool Refrigerator Cover
24	W10465768 Whirlpool Hinge Cover
25	EDR1RXD1 Whirlpool EveryDrop® Filter 1 Refrigerator Water
26	WPW10306392 Whirlpool Refrigerator Filter Cover
27	W11292468 Whirlpool Refrigerator Fitting
28	WP1106508 Whirlpool Refrigerator Gasket
29	W10449880 Whirlpool Microwave Water Tube
30	WPW10496649 Whirlpool Refrigerator Water Tube
31	4387491 Whirlpool Refrigerator Insert
32	W10861184 Whirlpool Refrigerator Clamp
33	WPW10279909 Whirlpool Refrigerator Inlet Valve
