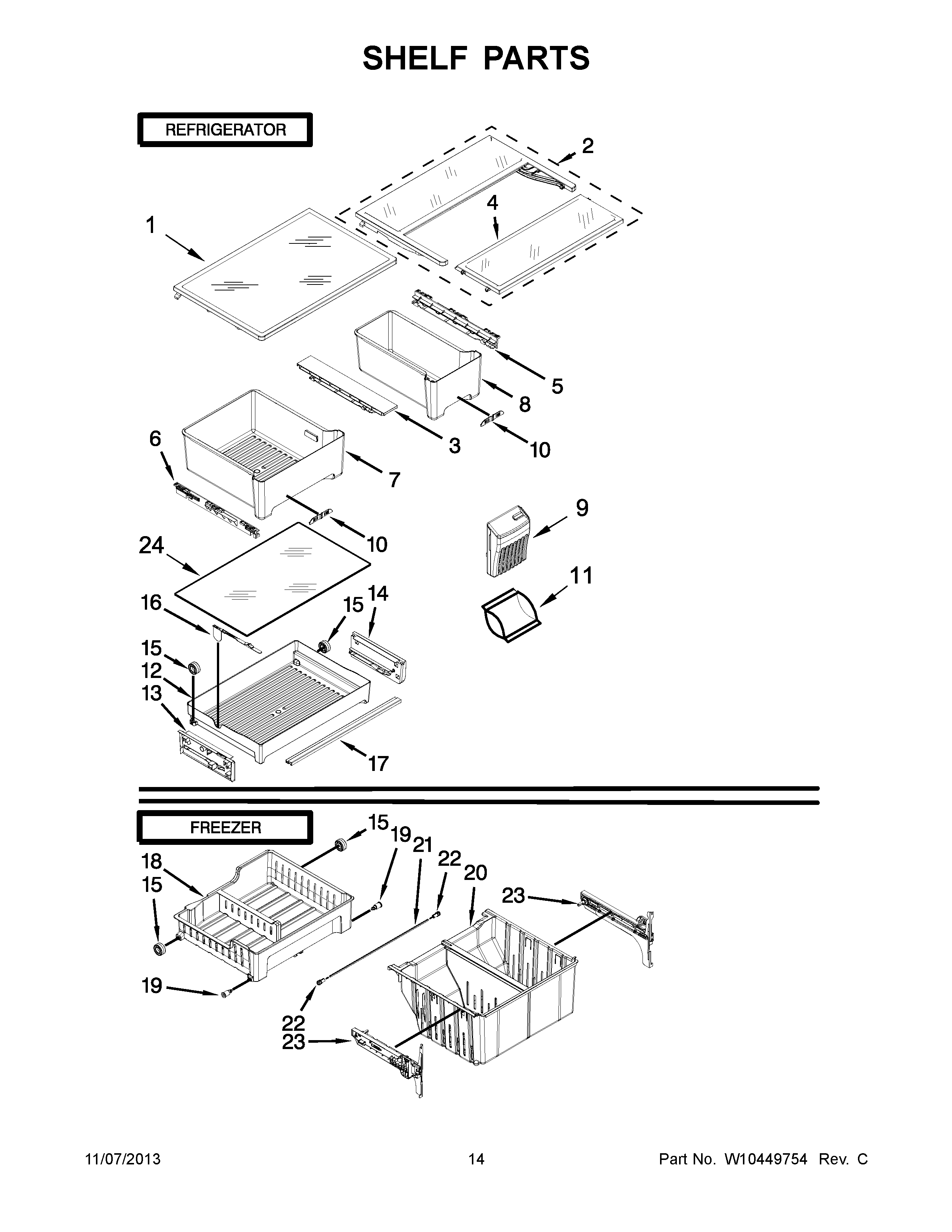

MFF2055YEB00 08 – SHELF PARTSadmin2025-04-26T09:11:07+00:00MFF2055YEB00 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | ASSEMBLY, FULL SHELF (30") |
| 2 | ASSEMBLY, FLIP DOWN SHELF |
| 3 | RAIL, TRACK (CENTER) |
| 4 | SHELF, FLIP DOWN |
| 5 | RAIL, TRACK (RIGHT HAND) |
| 6 | RAIL, TRACK (LEFT HAND) |
| 7 | PAN, CRISPER (16") |
| 8 | PAN, CRISPER (8") |
| 9 | MAY W10408748 |
| 10 | CONTROL, HUMIDITY |
| 11 | MAY W10346771 |
| 12 | ASSEMBLY, PANTRY DELI PAN |
| 13 | RAIL, PANTRY (LEFT HAND) |
| 14 | RAIL, PANTRY (RIGHT HAND) |
| 15 | MAY W10278139 |
| 16 | MAY W10411411 |
| 17 | ASSEMBLY, PANTRY COVER SUPPORT |
| 18 | BIN, UPPER FREEZER |
| 19 | MAY W10257246 |
| 20 | BASKET, LOWER FREEZER |
| 21 | MAY W10371538 |
| 22 | COLLAR, GEAR |
| 23 | ADAPTOR, FREEZER (RIGHT HAND) |
| 23 | ADAPTOR, FREEZER (LEFT HAND) |
| 24 | GLASS, PANTRY COVER |
