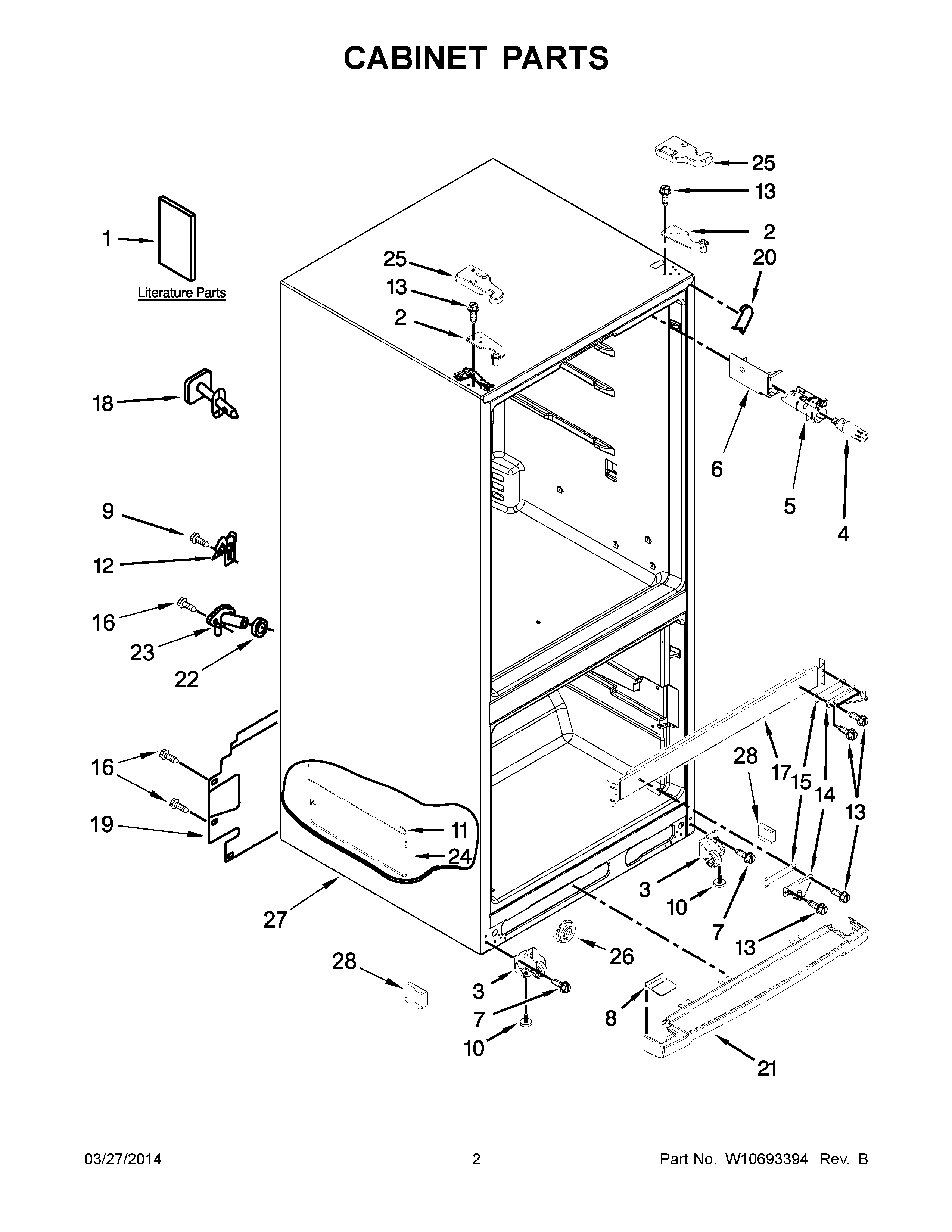

MFF2055YEB02 02 – CABINET PARTS

MFF2055YEB02 02 – CABINET PARTS

Written by

in

MFF2055YEB02 02 – CABINET PARTS

Products

PositionProduct
1USE AND CARE GUIDE
1MAY W10596092
1ICEMAKER SERVICE SHEET
1MAY W10458271
2HINGE, TOP (LEFT HAND)
2HINGE, TOP (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
3ROLLER, FRONT (RIGHT HAND)
4MAY W10569758
5MAY W10346257
6COVER, WATER FILTER
8ENDCAP, GRILLE (BLACK)
8COVER, TOE GRILLE (GREY)
8ENDCAP, GRILLE (WHITE)
9MAY 489442
10Brake, Foot
11MAY W10449880
12MAY 549193
13MAY 489497
14MAY W10521409
14MAY W10521411
15SHIM, CENTER HINGE
16MAY 2262176
19MAY W10444800
20FILLER, CORNER (GREY)
20CORNER FILLER (WHITE)
20CORNER FILLER (BLACK)
21GRILLE (GREY)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21GRILLE (INCLUDES ILLUS. 20) (BLACK)
22Seal
23FITTING, WATER TUBE
24MAY W10449611
25COVER, HINGE (RIGHT HAND (GREY))
25COVER, HINGE (LEFT HAND (GREY))
25COVER, HINGE (RIGHT HAND (BLACK))
25COVER, HINGE (LEFT HAND (BLACK))
25COVER, HINGE (RIGHT HAND (WHITE))
25COVER, HINGE (LEFT HAND (WHITE))
26DRUM, TOE GRILLE
27LINER (NOT A SERVICEABLE PART)
28CLIP, ROLLER
