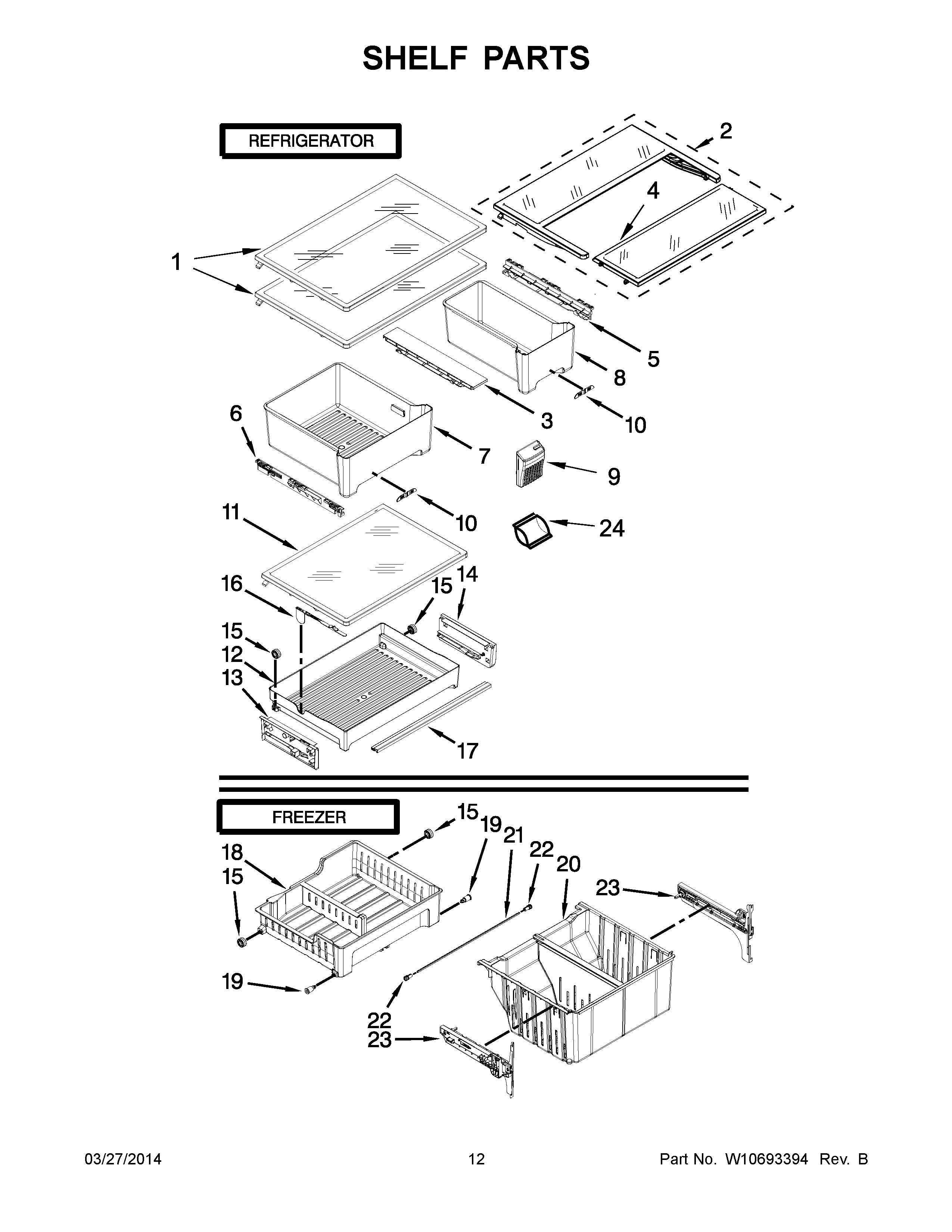

MFF2055YEB02 07 – SHELF PARTS

MFF2055YEB02 07 – SHELF PARTS

Written by

in

MFF2055YEB02 07 – SHELF PARTS

Products

PositionProduct
1ASSEMBLY, FULL SHELF (30")
2FLIP DOWN SHELF ASSEMBLY
3RAIL, TRACK (CENTER)
4SHELF, FLIP DOWN
5RAIL, TRACK (RIGHT HAND)
6RAIL, TRACK (LEFT HAND)
7PAN, CRISPER (16")
8PAN, CRISPER (8")
9MAY W10408748
10CONTROL, HUMIDITY
11GLASS, PANTRY COVER
12ASSEMBLY, PANTRY DELI PAN
13RAIL, PANTRY (LEFT HAND)
14RAIL, PANTRY (RIGHT HAND)
15MAY W10278139
16MAY W10411411
17ASSEMBLY, PANTRY COVER SUPPORT
18FREEZER BIN, UPPER
19MAY W10257246
20BASKET, LOWER FREEZER
21MAY W10371538
22COLLAR, GEAR
23ADAPTOR, FREEZER (LEFT HAND)
23ADAPTOR, FREEZER (RIGHT HAND)
24MAY W10346771
