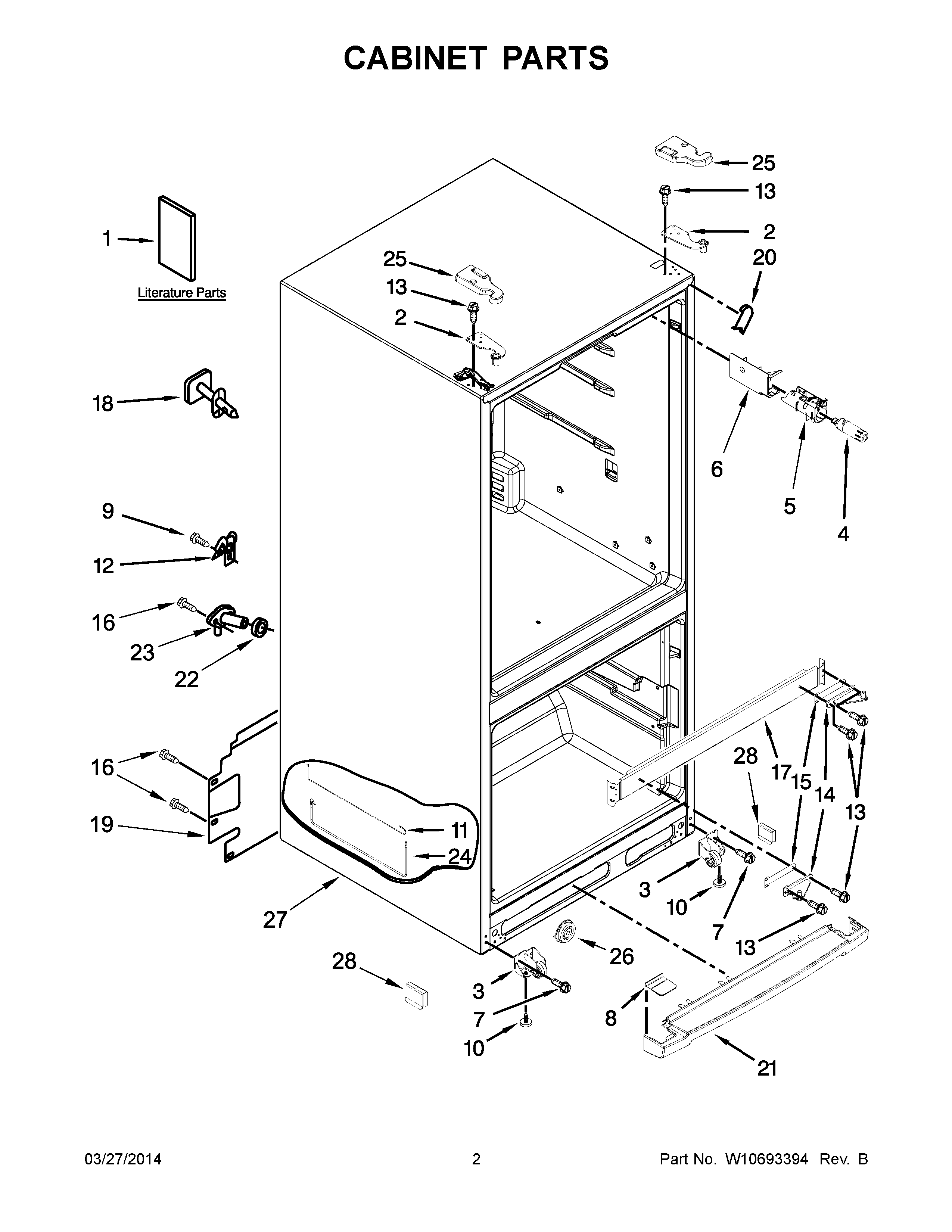

MFF2055YEM02 02 – CABINET PARTSadmin2025-04-26T09:12:06+00:00MFF2055YEM02 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | USE AND CARE GUIDE |
| 1 | MAY W10596092 |
| 1 | ICEMAKER SERVICE SHEET |
| 1 | MAY W10458271 |
| 2 | HINGE, TOP (LEFT HAND) |
| 2 | HINGE, TOP (RIGHT HAND) |
| 3 | ROLLER, FRONT (LEFT HAND) |
| 3 | ROLLER, FRONT (RIGHT HAND) |
| 4 | MAY W10569758 |
| 5 | MAY W10346257 |
| 6 | COVER, WATER FILTER |
| 8 | ENDCAP, GRILLE (BLACK) |
| 8 | COVER, TOE GRILLE (GREY) |
| 8 | ENDCAP, GRILLE (WHITE) |
| 9 | MAY 489442 |
| 10 | Brake, Foot |
| 11 | MAY W10449880 |
| 12 | MAY 549193 |
| 13 | MAY 489497 |
| 14 | MAY W10521409 |
| 14 | MAY W10521411 |
| 15 | SHIM, CENTER HINGE |
| 16 | MAY 2262176 |
| 19 | MAY W10444800 |
| 20 | FILLER, CORNER (GREY) |
| 20 | CORNER FILLER (WHITE) |
| 20 | CORNER FILLER (BLACK) |
| 21 | GRILLE (GREY) |
| 21 | GRILLE (INCLUDES ILLUS. 20) (WHITE) |
| 21 | GRILLE (INCLUDES ILLUS. 20) (BLACK) |
| 22 | Seal |
| 23 | FITTING, WATER TUBE |
| 24 | MAY W10449611 |
| 25 | COVER, HINGE (RIGHT HAND (GREY)) |
| 25 | COVER, HINGE (LEFT HAND (GREY)) |
| 25 | COVER, HINGE (RIGHT HAND (BLACK)) |
| 25 | COVER, HINGE (LEFT HAND (BLACK)) |
| 25 | COVER, HINGE (RIGHT HAND (WHITE)) |
| 25 | COVER, HINGE (LEFT HAND (WHITE)) |
| 26 | DRUM, TOE GRILLE |
| 27 | LINER (NOT A SERVICEABLE PART) |
| 28 | CLIP, ROLLER |
