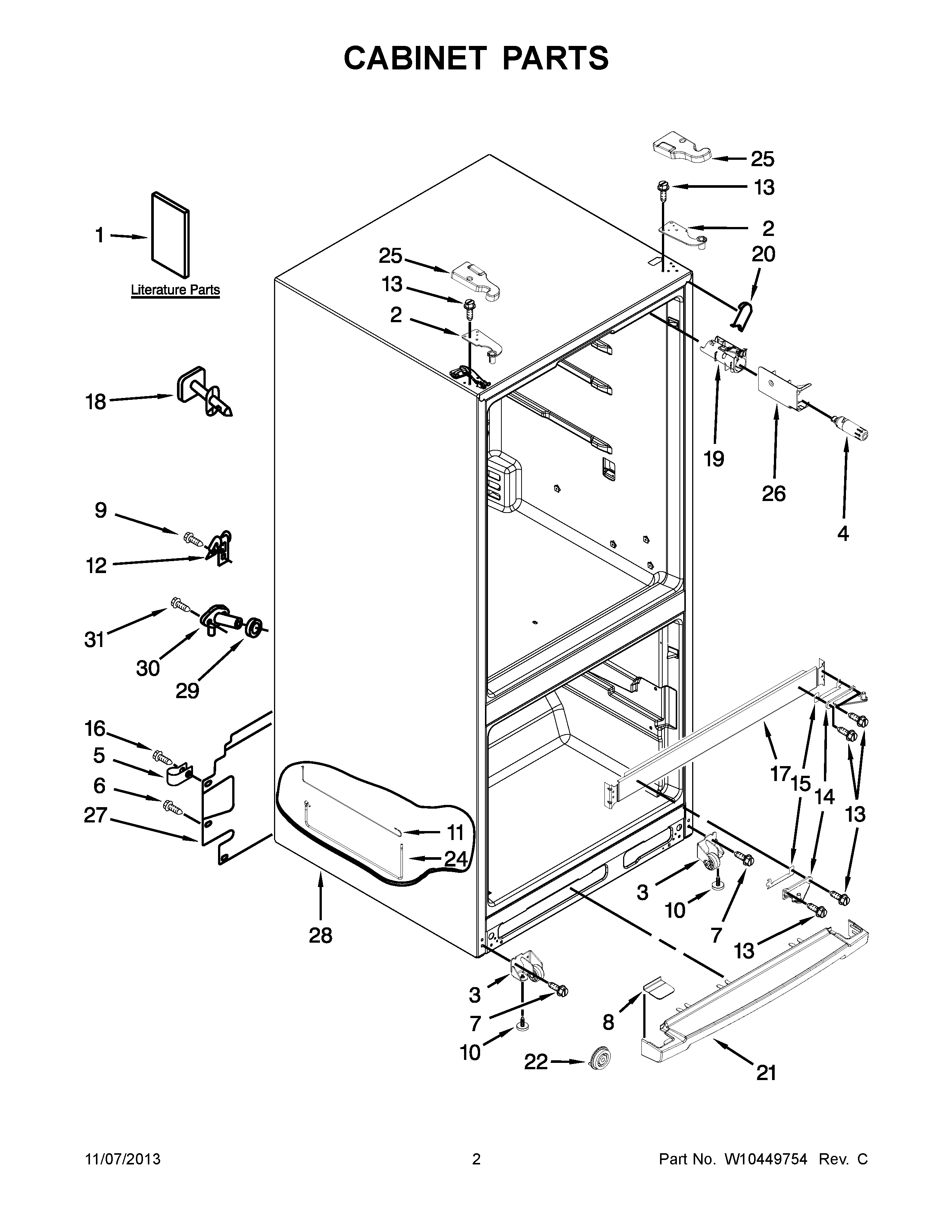

MFF2055YEW00 02 – CABINET PARTS
Written by
in
MFF2055YEW00 02 – CABINET PARTS
Products
Position
Product
1
MAY W10458271
1
SERVICE & WIRING SHEET
1
ICEMAKER SERVICE SHEET
1
USE AND CARE GUIDE
2
HINGE, TOP (RIGHT HAND)
2
HINGE, TOP (LEFT HAND)
3
ROLLER, FRONT (RIGHT HAND)
3
ROLLER, FRONT (LEFT HAND)
4
MAY W10217316
5
CLAMP, TUBE
6
MAY 2262176
8
COVER, TOE GRILLE (GREY)
8
ENDCAP, GRILLE (WHITE)
8
ENDCAP, GRILLE (BLACK)
10
Brake, Foot
11
MAY W10449880
12
MAY 549193
13
MAY 489497
14
MAY W10521411
14
MAY W10521409
15
SHIM, CENTER HINGE
16
MAY 489442
19
MAY W10346257
20
FILLER, CORNER (GREY)
20
CORNER FILLER (BLACK)
20
CORNER FILLER (WHITE)
21
GRILLE (INCLUDES ILLUS. 20) (WHITE)
21
GRILLE (INCLUDES ILLUS. 20) (BLACK)
21
GRILLE (GREY)
22
DRUM, TOE GRILLE
24
MAY W10449611
25
COVER, HINGE (LEFT HAND (GREY))
25
COVER, HINGE (RIGHT HAND (BLACK))
25
COVER, HINGE (LEFT HAND (BLACK))
25
COVER, HINGE (RIGHT HAND (WHITE))
25
COVER, HINGE (LEFT HAND (WHITE))
25
COVER, HINGE (RIGHT HAND (GREY))
26
COVER, WATER FILTER
27
MAY W10444800
28
LINER (NOT A SERVICEABLE PART)
29
Seal
30
FITTING, WATER TUBE
31
Screw
←
