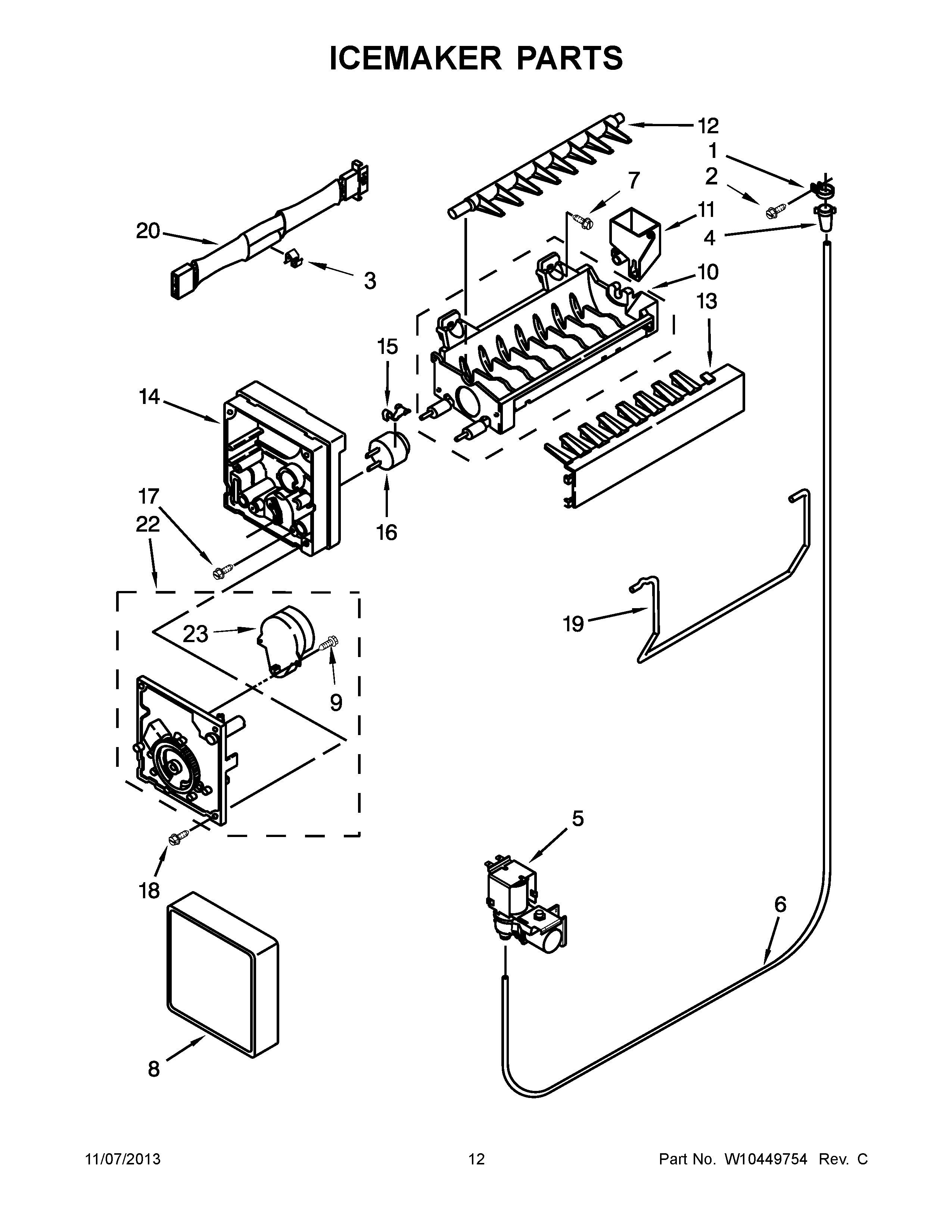

MFF2055YEW00 07 – ICEMAKER PARTS

Products

Position	Product
1	CLAMP, TUBE
2	MAY 489478
3	Clip
4	MAY 2181939
5	MAY W10279909
6	TUBE, WATER
7	Screw
8	COVER
9	MAY 489136
10	MAY W10122527
11	MAY W10435665
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	MAY W10290336
17	Screw (2)
18	MAY 489276
19	ARM, SHUT OFF
20	ASSEMBLY, ICE MAKER WIRE
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	LINER (NOT A SERVICEABLE PART)
100	MAY W10190952
