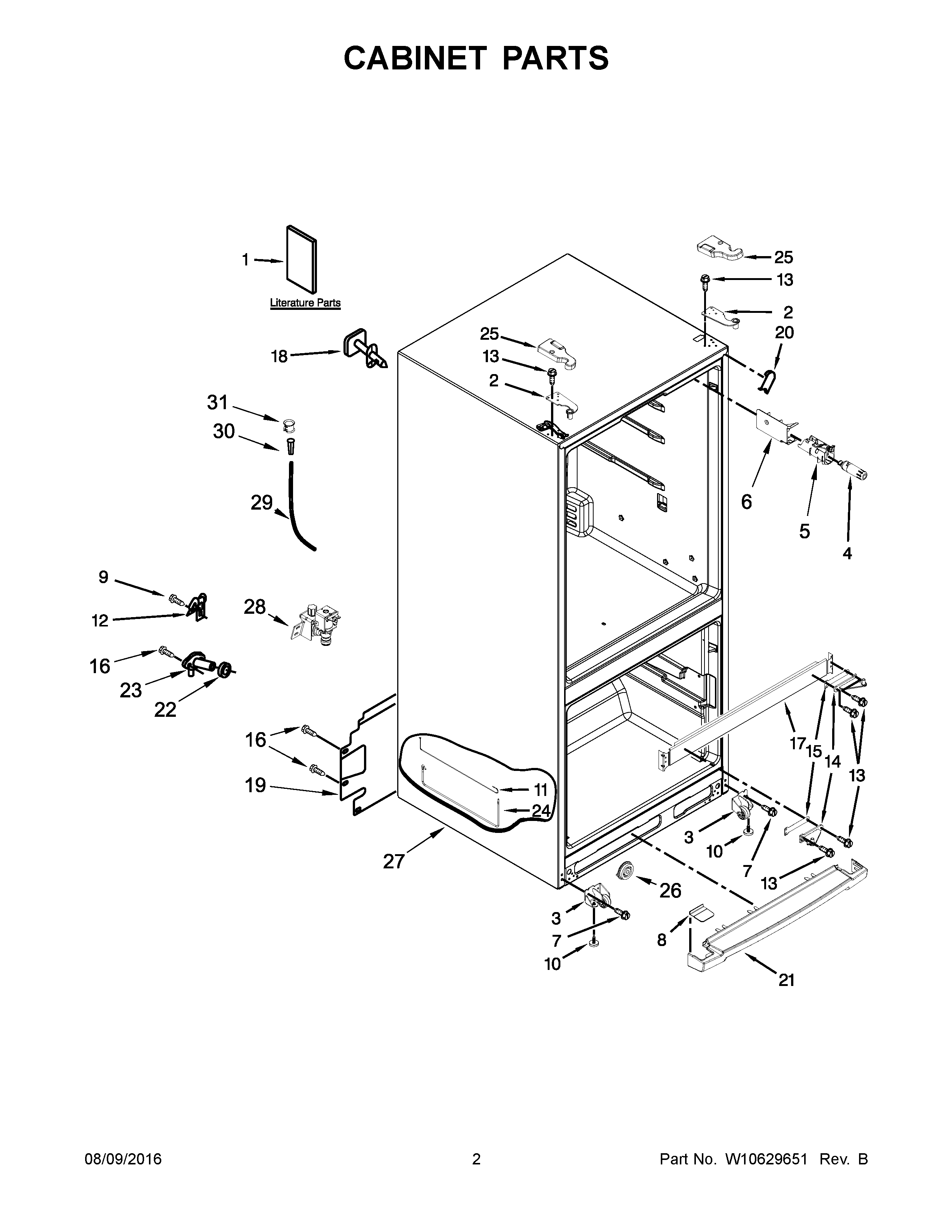

MFF2055YEW01 02 – CABINET PARTS

MFF2055YEW01 02 – CABINET PARTS

Written by

in

MFF2055YEW01 02 – CABINET PARTS

Products

PositionProduct
1BUSE AND CARE GUIDE
1CICEMAKER SERVICE SHEET
1AMAY W10458271
1SERVICE & WIRING SHEET
2HINGE, TOP (LEFT HAND)
2AHINGE, TOP (RIGHT HAND)
3ROLLER, FRONT (LEFT HAND)
3AROLLER, FRONT (RIGHT HAND)
4MAY W10217316
5MAY W10346257
6COVER, WATER FILTER
8BCOVER, TOE GRILLE (GREY)
8ENDCAP, GRILLE (WHITE)
8AENDCAP, GRILLE (BLACK)
9MAY 489442
10Brake, Foot
11MAY W10449880
12MAY 549193
13MAY 489497
14MAY W10521411
14AMAY W10521409
15SHIM, CENTER HINGE
16MAY 2262176
19MAY W10444800
20CORNER FILLER (WHITE)
20ACORNER FILLER (BLACK)
20BFILLER, CORNER (GREY)
21AGRILLE (INCLUDES ILLUS. 20) (BLACK)
21GRILLE (INCLUDES ILLUS. 20) (WHITE)
21BGRILLE (GREY)
22Seal
23FITTING, WATER TUBE
24MAY W10449611
25COVER, HINGE (LEFT HAND (WHITE))
25DCOVER, HINGE (LEFT HAND (GREY))
25ACOVER, HINGE (RIGHT HAND (WHITE))
25ECOVER, HINGE (RIGHT HAND (GREY))
25BCOVER, HINGE (LEFT HAND (BLACK))
25CCOVER, HINGE (RIGHT HAND (BLACK))
26DRUM, TOE GRILLE
27LINER (NOT A SERVICEABLE PART)
28MAY W10279909
29TUBE, WATER
30MAY 2181939
31CLAMP, TUBE
