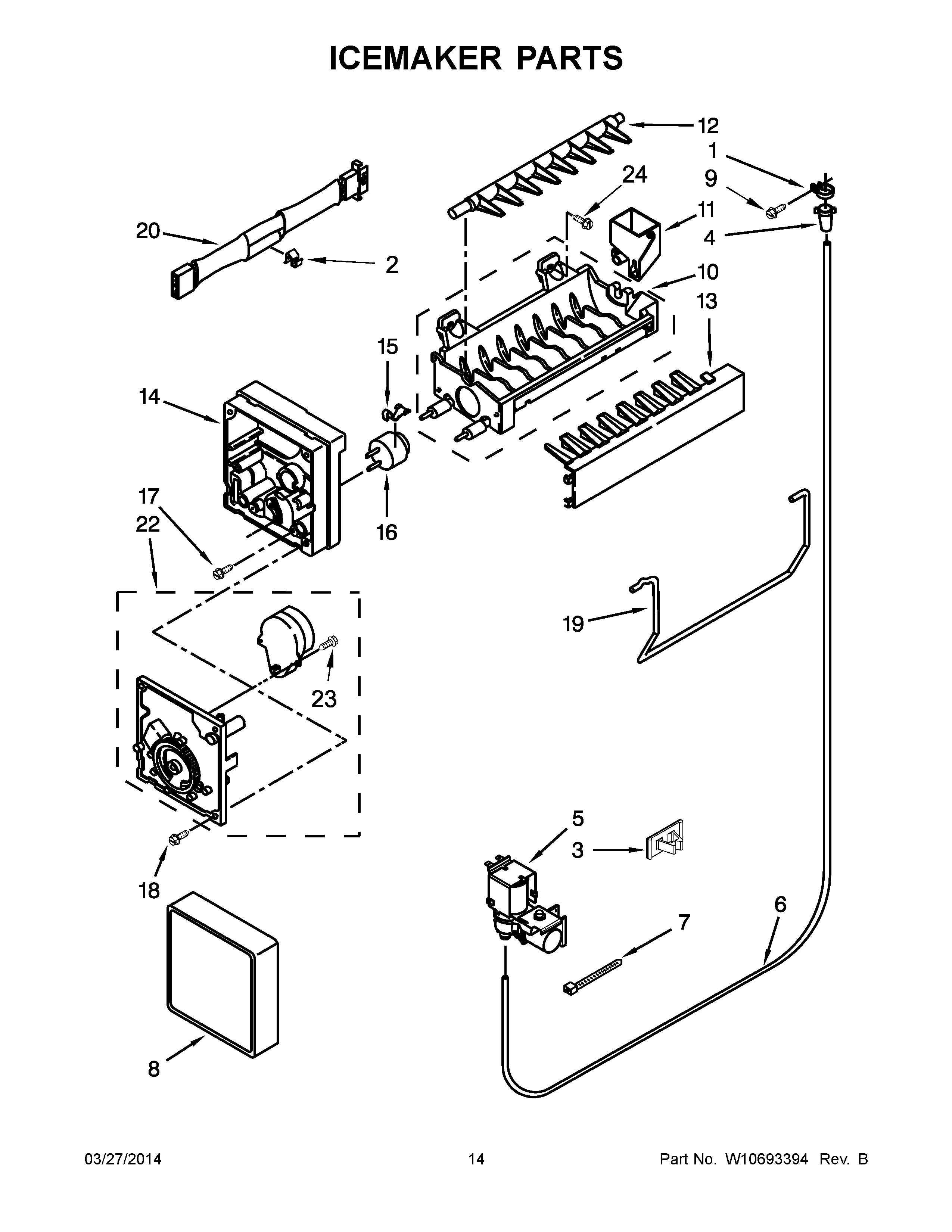

MFF2055YEW02 08 – ICEMAKER PARTS

Products

Position	Product
1	CLAMP, TUBE
2	Clip
3	CLIP, TUBE
4	MAY 2181939
5	MAY W10279909
6	TUBE, WATER
7	MAY 2263990
8	COVER
9	MAY 488886
10	ASSEMBLY, MOLD AND HEATER (ALSO ORDER 542638)
11	MAY W10435665
12	MAY 627843
13	ICE STRIPPER
14	MAY 2194712
15	MAY 2315522
16	Thermostat (Also Order 542369 Cement Alumilastic)
17	Screw (2)
18	MAY 489276
19	ARM, SHUT OFF
20	ASSEMBLY, ICE MAKER WIRE
22	MODULE ASSEMBLY (INCLUDES ITEM 24)
23	MAY 489136
24	Screw
100	ASSEMBLY, ICEMAKER
