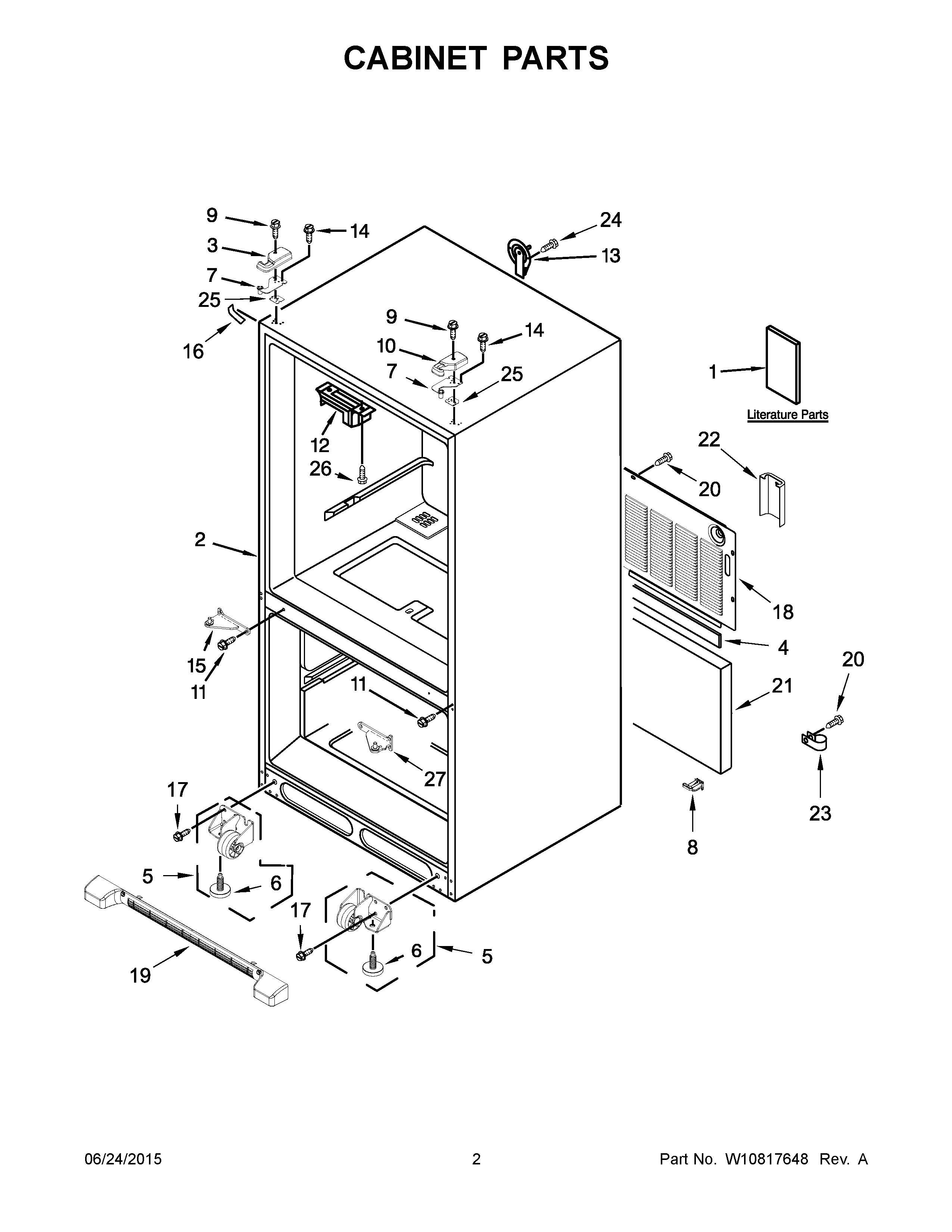

MFF2258DEE01 02 – CABINET PARTSadmin2025-04-26T09:10:14+00:00MFF2258DEE01 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1B | MAY W10787416 |
| 1 | MAY W10621529 |
| 1A | MAY W10673870 |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3B | COVER, TOP HINGE (LEFT) (GREY) |
| 3 | MAY W10337634 |
| 3A | COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK) |
| 4 | MAY B5759655 |
| 5 | ROLLER ASSEMBLY (LEFT HAND) |
| 5A | ROLLER ASSEMBLY (RIGHT HAND) |
| 6 | Brake, Foot |
| 7A | MAY 12963205EDN |
| 7 | MAY 12963204EDN |
| 8 | MAY W10485986 |
| 9 | MAY 12992602 |
| 10 | MAY 12962302W |
| 10B | COVER, RIGHT HINGE (GREY) |
| 10A | MAY 12962302B |
| 11 | MAY 12990101 |
| 12 | Block, Pivot |
| 13 | MAY 12726003 |
| 14 | SCREW (6) |
| 15A | HINGE, CENTER (BLACK, LEFT) |
| 15B | HINGE, CENTER (LT) (GREY) |
| 15 | Hinge, Center (LT) (White) |
| 16 | Cover, Corner (2) (White) |
| 16A | COVER, CORNER (BLACK) |
| 16B | COVER, CORNER (GREY) |
| 17 | Screw (8) |
| 18 | MAY W10210979 |
| 19B | ASSEMBLY, GRILLE (GREY) |
| 19 | ASSEMBLY, GRILLE (WHITE) |
| 19A | ASSEMBLY, GRILLE (BLACK) |
| 20 | SCREW (10) |
| 21 | Insulation, Sound |
| 22 | GUARD-WATER VALVE |
| 23 | CLAMP, TUBE |
| 24 | MAY 12990504 |
| 25 | MAY 12999502 |
| 26 | Screw (4) |
| 27B | HINGE, CENTER (RT) (GREY) |
| 27A | HINGE, CENTER (BLACK, RIGHT ) |
| 27 | Hinge, Center (RT) (White) |
