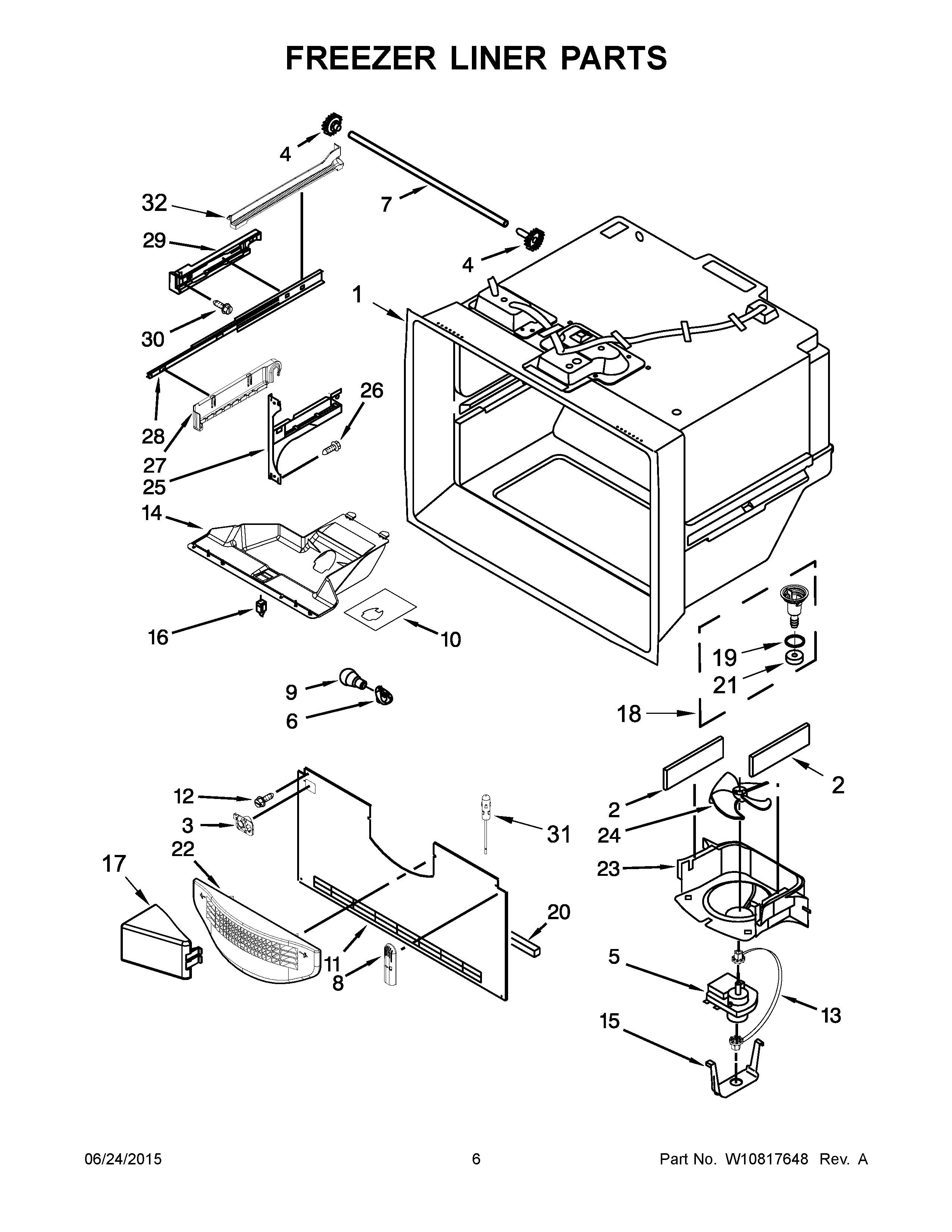

MFF2258DEH01 04 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	MAY 13062901
6	W11447232 Whirlpool Refrigerator Socket
7	MAY 12812902WD
8	MAY 12815301
9	MAY W10745744
10	FOIL-FZ LIGHT
11	MAY W10308415
12	SCREW (10)
13	MAY W10150583
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY W10157765
18	MAY W10662407
19	MAY M0500703
20	MAY A3189395
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	MAY W10330991
25A	MAY W10330993
26	Screw (8)
27A	CRADLE-BASKET (RIGHT HAND)
27	CRADLE-BASKET (LEFT HAND)
28	MAY W10120018
29	ADAPTER, SLIDE (LEFT HAND)
29A	ADAPTER, SLIDE (RIGHT HAND)
30	Screw (6)
31	THERMISTOR
32A	MAY W10516602
32	MAY W10516603
