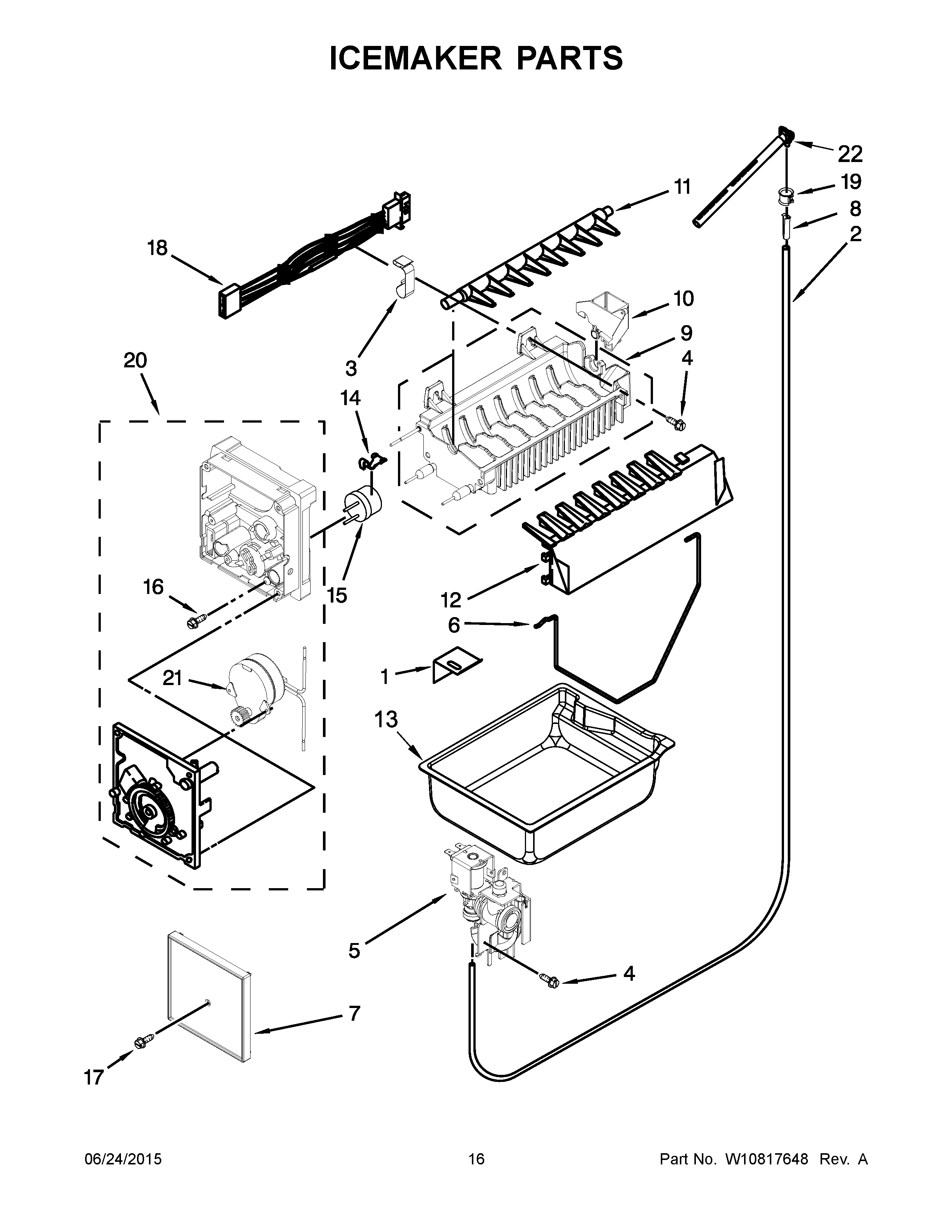

MFF2258DEM01 09 – ICEMAKER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	Icemaker Install Kit
1	MAY 2256086
2	MAY B5705333
3	CLAMP, WIRE
4	Screw (3)
5	MAY W10498976
6	ARM, SHUT OFF
7	MAY W10377174
8	MAY A3223101
9	ASSEMBLY, MOLD AND HEATER
10	MAY W10410073
11	MAY W10318914
12	MAY W10699925
13	MAY W10171529N
14	Clip
15	Thermostat (Also Order 542369 Cement Alumilastic)
16	MAY 8533917
17	SCREW
18	MAY W10458985
19	Clip
20	ASSEMBLY, MODULE AND MOTOR
22	MAY 10463203
100	ASSEMBLY, ICEMAKER (COMPLETE)
