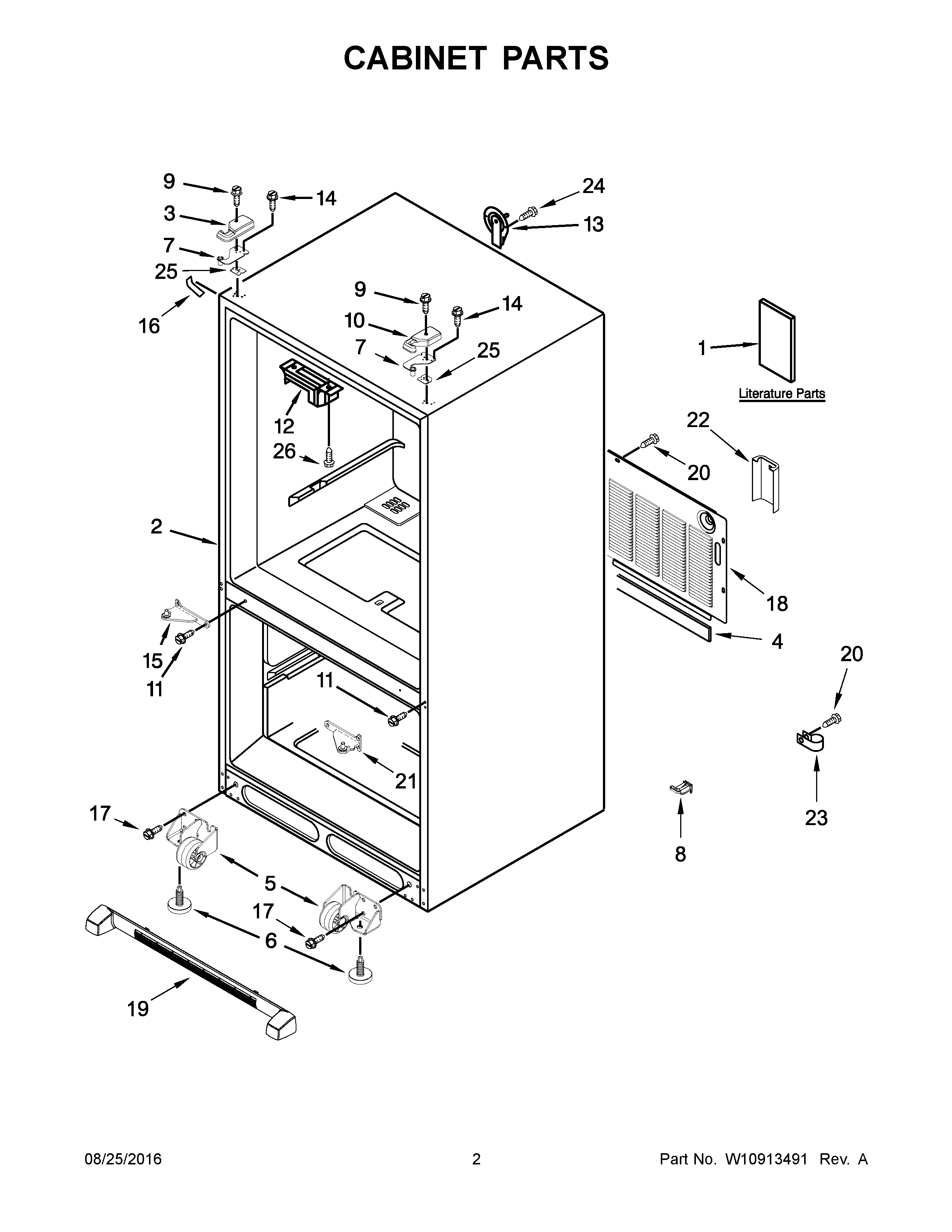

MFF2258FEZ00 02 – CABINET PARTS

MFF2258FEZ00 02 – CABINET PARTS

Written by

in

MFF2258FEZ00 02 – CABINET PARTS

Products

PositionProduct
1BMAY W10787416
1AMAY W10853959
1MAY W10621529
2LINER (NOT A SERVICEABLE PART)
3COVER, TOP HINGE (LEFT) (GREY)
4MAY B5759655
5AROLLER ASSEMBLY (LEFT HAND)
5ROLLER ASSEMBLY (RIGHT HAND)
6Brake, Foot
7MAY 12963204ED
7AMAY 12963205ED
8MAY W10485986
9MAY 12992602
10MAY 12962302AP
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15HINGE, CENTER (LT) (GREY)
16COVER, CORNER (GREY)
17MAY W10709365
18MAY W10210979
19ASSEMBLY, GRILLE (GREY)
20SCREW (10)
21HINGE, CENTER (RT) (GREY)
22GUARD-WATER VALVE
23CLAMP, TUBE
24MAY 12990504
25AMAY 12999502
25MAY 12999501
26Screw (4)
