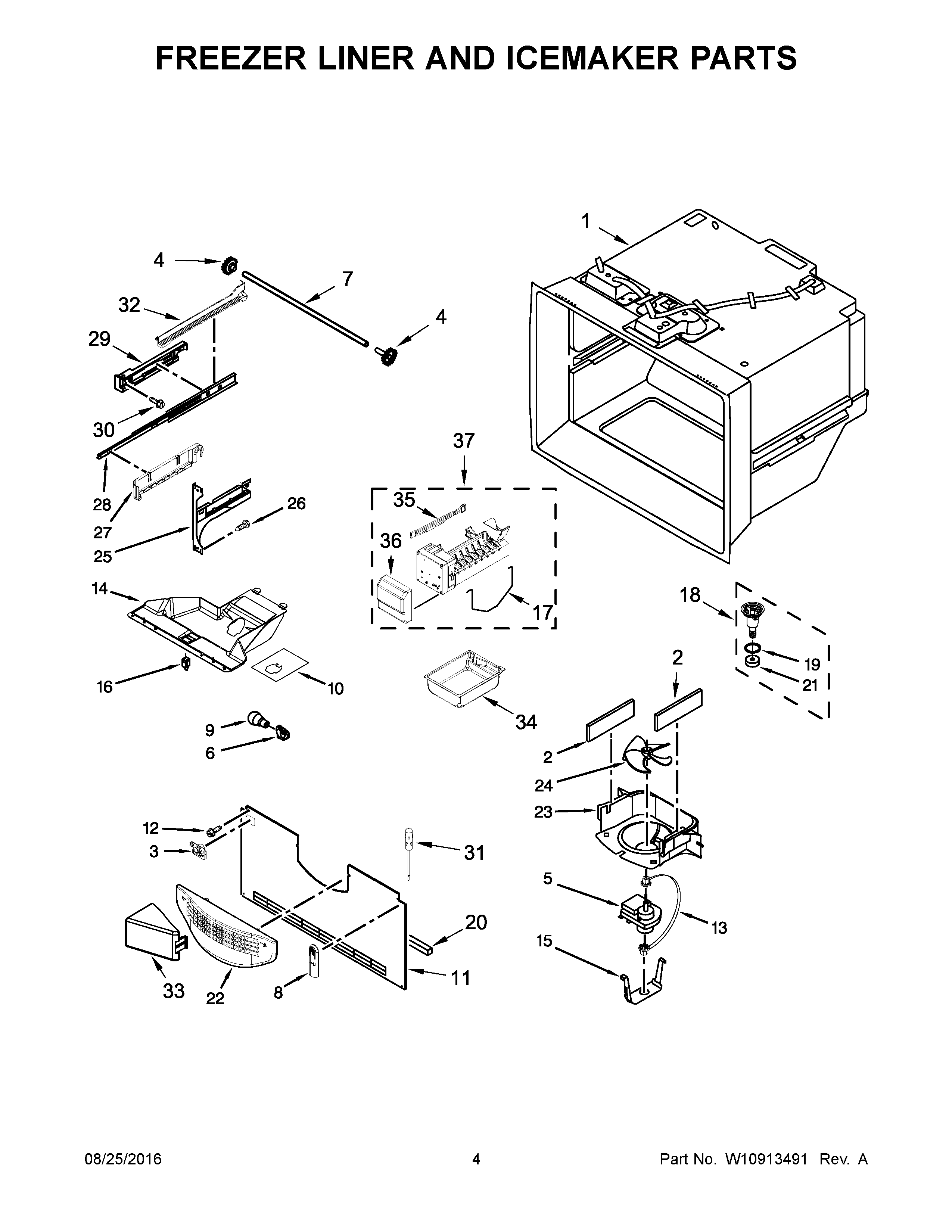

MFF2258FEZ00 03 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
412002497 Whirlpool Refrigerator Drawer Gear Kit
5MAY 13062901
6W11447232 Whirlpool Refrigerator Socket
7SHAFT, RACK
8MAY 12815301
9MAY W10820003
10FOIL-FZ LIGHT
11MAY W10308415
12SCREW (10)
13MAY W10150583
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17ARM-SHUT OFF
18MAY W10662407
19MAY M0500703
20MAY A3189395
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25AMAY W10330993
25MAY W10330991
26Screw (8)
27ACRADLE-BASKET (RIGHT HAND)
27CRADLE-BASKET (LEFT HAND)
28MAY W10120018
29AADAPTER, SLIDE (RIGHT HAND)
29ADAPTER, SLIDE (LEFT HAND)
30Screw (6)
31THERMISTOR
32AMAY W10516602
32MAY W10516603
33MAY W10157765
34MAY W10740448N
35MAY W10793621
36COVER, ICEMAKER
37ASSEMBLY, ICEMAKER (COMPLETE)
