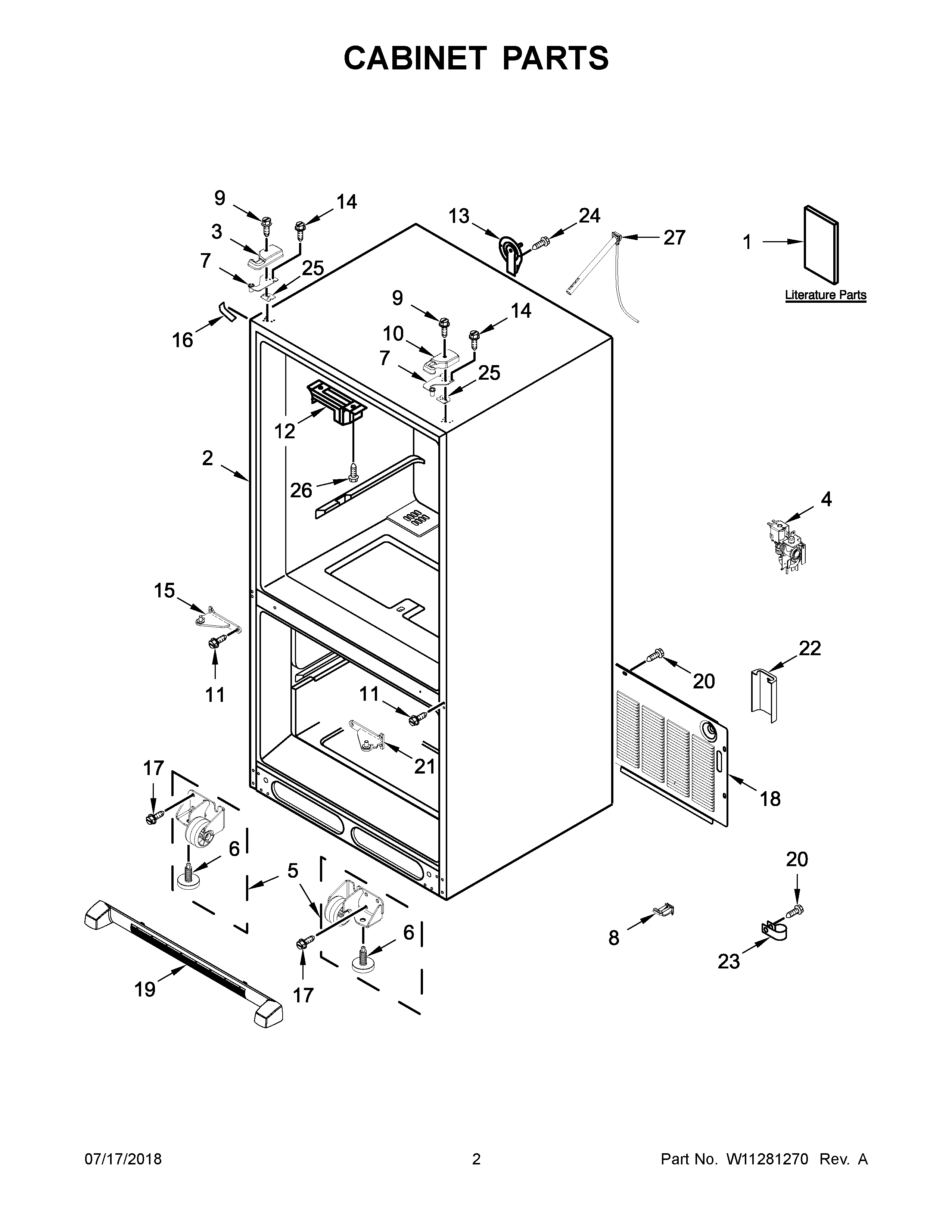

MFF2258FEZ02 02 – CABINET PARTS

Products

Position	Product
1A	MAY W11112822
1C	TECH SHEET (FRENCH)
1B	TECH SHEET (ENGLISH)
1	MAY W10621529
2	LINER (NOT A SERVICEABLE PART)
3	COVER, TOP HINGE (LEFT) (GREY)
4	MAY W10498976
5A	ROLLER ASSEMBLY (RIGHT HAND)
5	ROLLER ASSEMBLY (LEFT HAND)
6	Brake, Foot
7	MAY 12963204ED
7A	MAY 12963205ED
8	MAY W10485986
9	MAY 12992602
10	MAY 12962302AP
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER LEFT HAND (GREY)
16	COVER, CORNER (GREY)
17	MAY W10709365
18	MAY W10210979
19	ASSEMBLY, GRILLE (GREY)
20	SCREW (10)
21	HINGE, CENTER RIGHT HAND (GREY)
22	GUARD-WATER VALVE
23	CLAMP, TUBE
24	MAY 12990504
25A	MAY 12999502
25	MAY 12999501
26	SCREW
27	ASSEMBLY, FILL TUBE (INCLUDES TUBING, FILL TUBE ELBOW, TUBE INSERT AND CLAMP)
