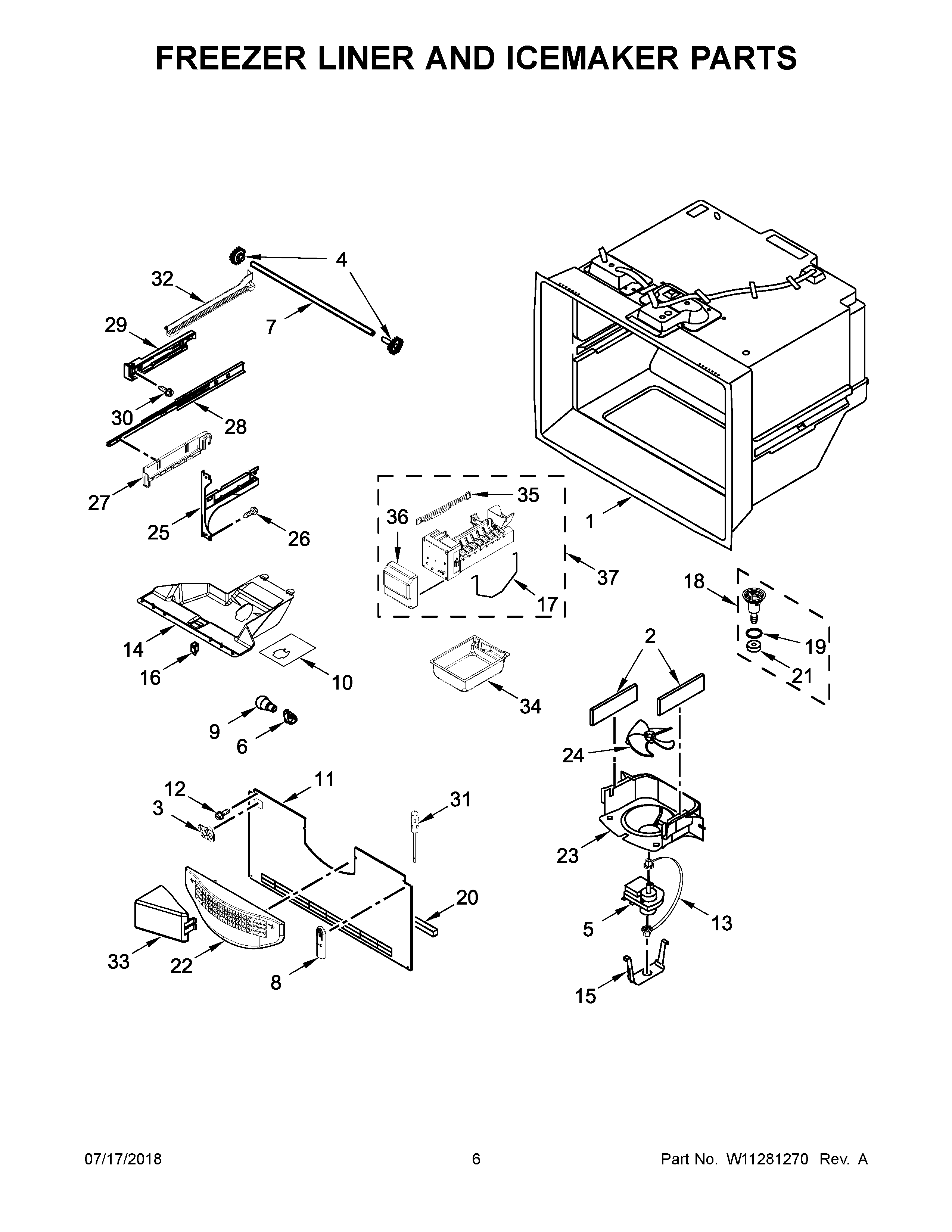

MFF2258FEZ02 04 – FREEZER LINER & ICEMAKER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	MAY 13062901
6	W11447232 Whirlpool Refrigerator Socket
7	SHAFT, RACK
8	MAY 12815301
9	LAMP, LED
10	FOIL-FZ LIGHT
11	MAY W10308415
12	SCREW (10)
13	MAY W10150583
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	ARM-SHUT OFF
18	MAY W10662407
19	MAY M0500703
20	MAY A3189395
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25A	MAY W10330993
25	MAY W10330991
26	Screw (8)
27A	CRADLE-BASKET (RIGHT HAND)
27	CRADLE-BASKET (LEFT HAND)
28	MAY W10120018
29A	ADAPTER, SLIDE (RIGHT HAND)
29	ADAPTER, SLIDE (LEFT HAND)
30	Screw (6)
31	THERMISTOR
32A	MAY W10516602
32	MAY W10516603
33	MAY W10157765
34	MAY W10171529N
35	MAY W10793621
36	COVER, ICEMAKER
37	ASSEMBLY, ICEMAKER (COMPLETE)
