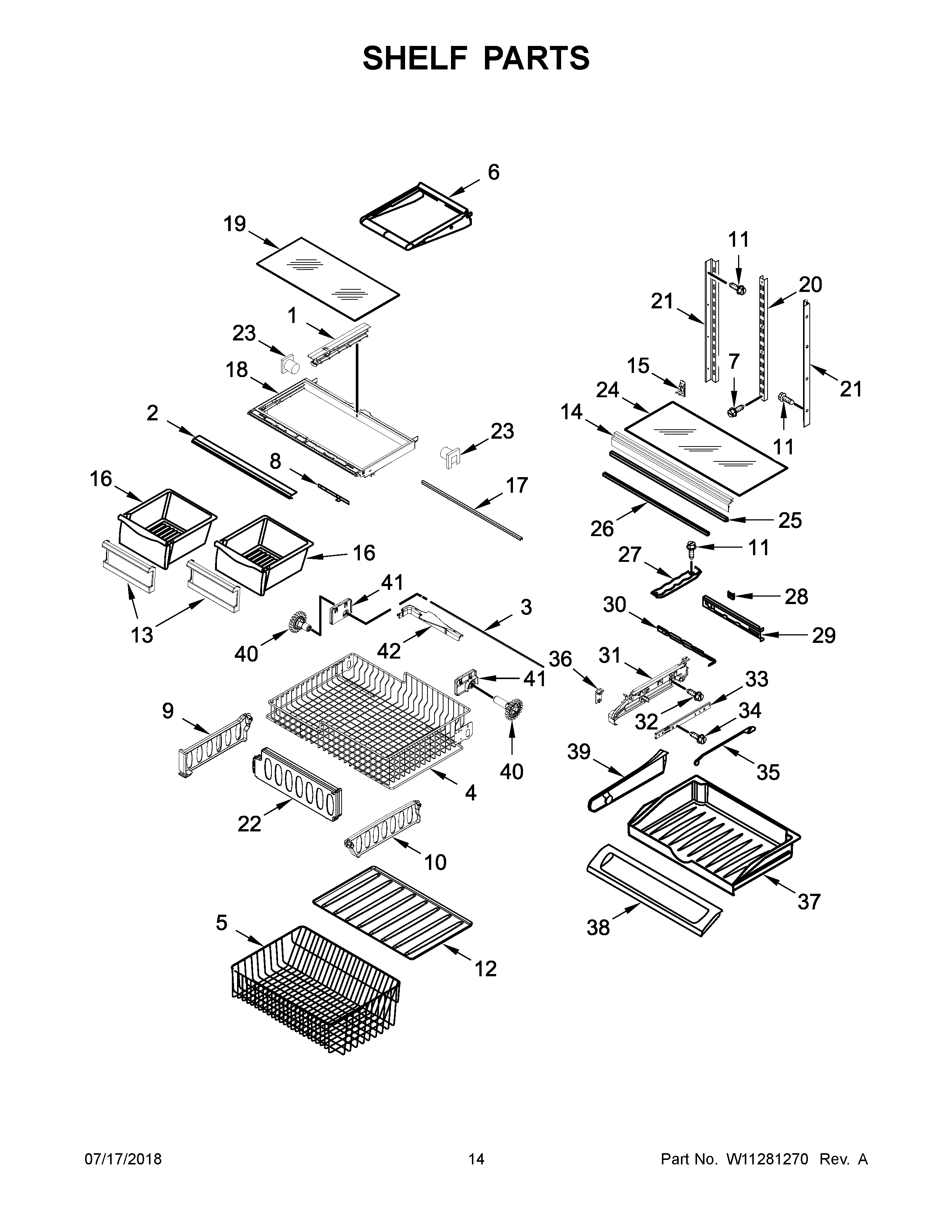

MFF2258FEZ02 08 – SHELF PARTSadmin2025-04-26T09:09:42+00:00MFF2258FEZ02 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY W10671238 |
| 2 | TRIM, CRISPER |
| 3 | SHAFT, RACK |
| 4 | BASKET, FREEZER (UPPER) |
| 5 | BASKET, FREEZER (LOWER) |
| 6 | MAY W10743546 |
| 7 | MAY W10215666 |
| 8 | MAY 12530805SP |
| 9 | Divider, Upper Basket |
| 10 | Divider, Lower Basket |
| 11 | MAY 12990513 |
| 12 | MAY W10316995 |
| 13 | FRONT, CRISPER |
| 14 | MAY 13048801 |
| 15 | HOOK-LADDER (2) |
| 16 | MAY 12530505SP |
| 17 | BRACE, CRISPER FRAME |
| 18 | FRAME, CRISPER |
| 19 | MAY 12204822 |
| 20 | MAY W10273463 |
| 21 | MAY W10251969 |
| 22 | DIVIDER, UPPER |
| 23A | SUPPORT-RIGHT |
| 23 | SUPPORT-LEFT |
| 24 | MAY 12204820 |
| 25 | MAY W10528936 |
| 26 | MAY W10783763 |
| 27 | TRACK, PANTRY |
| 28 | MAY 12656902 |
| 29 | MAY 13048301 |
| 30 | MAY 13048401 |
| 31 | ENDCAP, PANTRY (LEFT HAND) |
| 31A | ENDCAP, PANTRY (RIGHT HAND) |
| 32 | MAY 12990504 |
| 33 | MAY W10235370 |
| 34 | SCREW (2) |
| 35 | MAY 13048201 |
| 36 | KNOB, TEMP CONTROL |
| 37 | MAY 13048501SP |
| 38 | MAY 12656823 |
| 39 | MAY 13048601SP |
| 40A | MAY W10474715 |
| 40 | MAY W10474716 |
| 41 | MOUNT-GEAR (LEFT HAND) |
| 41A | MOUNT-GEAR (RIGHT HAND) |
| 42 | MAY W10149389N |
