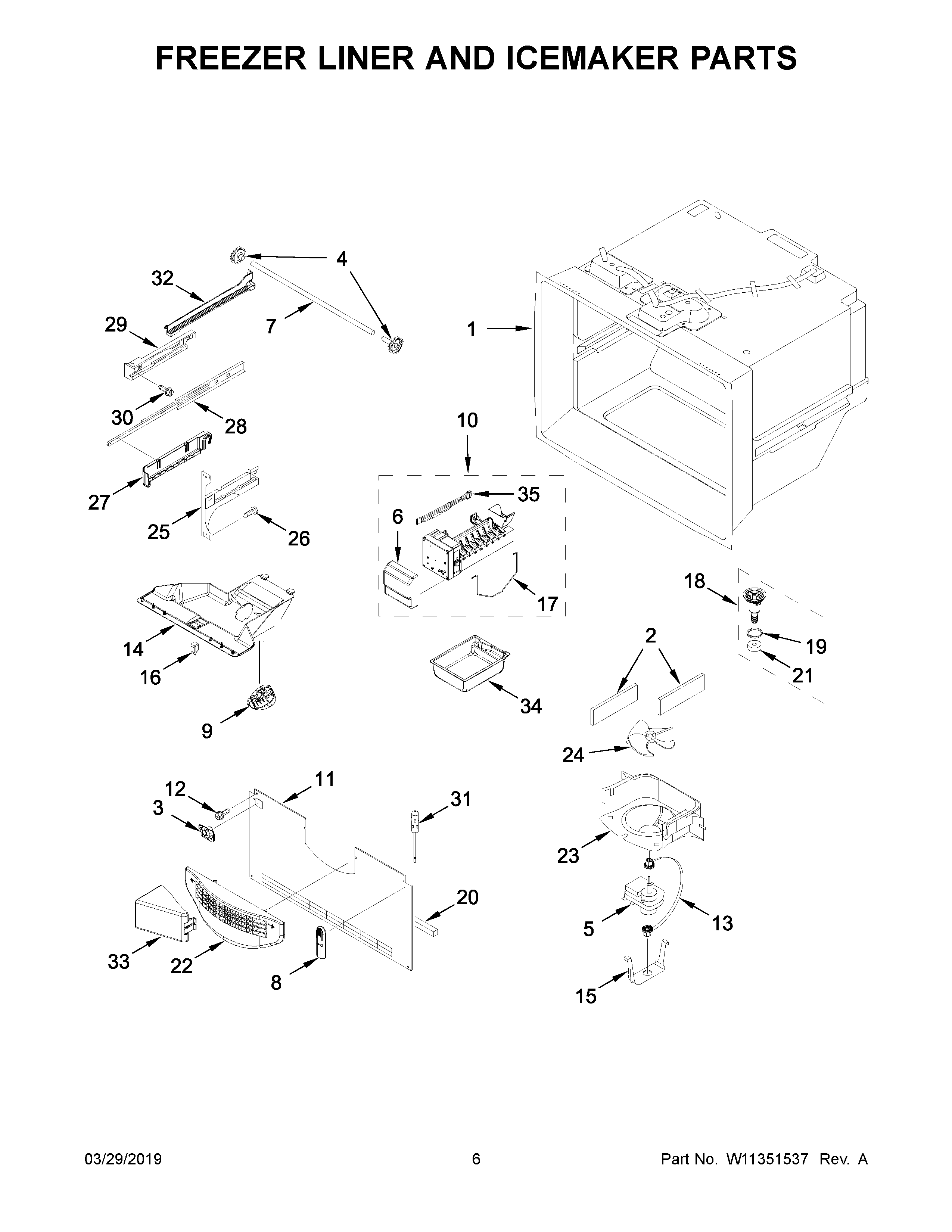

MFF2258FEZ03 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY W11261524
412002497 Whirlpool Refrigerator Drawer Gear Kit
5MAY 13062901
6COVER, ICEMAKER
7SHAFT, RACK
8MAY 12815301
9MAY W11251749
10ASSEMBLY, ICEMAKER (COMPLETE)
11MAY W10308415
12SCREW (10)
13MAY W10150583
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16SWITCH, LIGHT
17ARM, SHUT OFF
18MAY W10662407
19MAY M0500703
20MAY A3189395
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25AMAY W10330993
25MAY W10330991
26Screw (8)
27CRADLE-BASKET (LEFT HAND)
27ACRADLE-BASKET (RIGHT HAND)
28SLIDE, DOOR
29ADAPTER, SLIDE (LEFT HAND)
29AADAPTER, SLIDE (RIGHT HAND)
30Screw (6)
31MAY 12791409SP
32AMAY W10516602
32MAY W10516603
33MAY W10157765
34MAY W10171529N
35MAY W10793621
