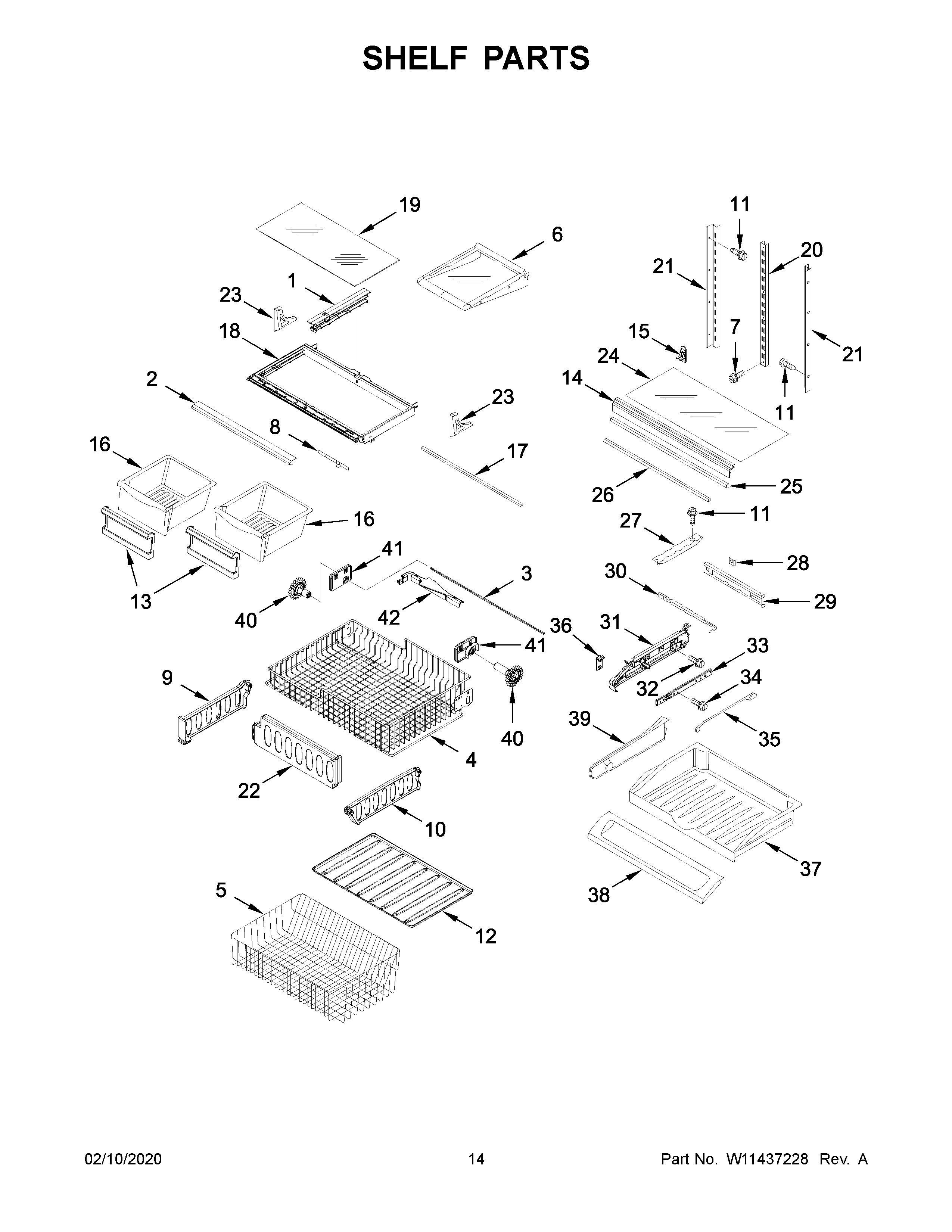

MFF2258FEZ04 08 – SHELF PARTS

MFF2258FEZ04 08 – SHELF PARTS

Written by

in

MFF2258FEZ04 08 – SHELF PARTS

Products

Position	Product
1	MAY W10671238
2	TRIM, CRISPER
3	SHAFT, RACK
4	BASKET, FREEZER (UPPER)
5	BASKET, FREEZER (LOWER)
6	MAY W10743546
7	MAY W10215666
8	MAY 12530805SP
9	Divider, Upper Basket
10	Divider, Lower Basket
11	MAY 12990513
12	MAY W10316995
13	FRONT, CRISPER
14	MAY 13048801
15	HOOK-LADDER (2)
16	MAY 12530505SP
17	BRACE, CRISPER FRAME
18	FRAME, CRISPER
19	MAY 12204822
20	MAY W10273463
21	MAY W10251969
22	DIVIDER, UPPER
23A	SUPPORT-RIGHT
23	SUPPORT-LEFT
24	MAY 12204820
25	MAY W10528936
26	MAY W10783763
27	TRACK, PANTRY
28	MAY 12656902
29	MAY 13048301
30	MAY 13048401
31	ENDCAP, PANTRY (LEFT HAND)
31A	ENDCAP, PANTRY (RIGHT HAND)
32	MAY 12990504
33	MAY W10235370
34	SCREW (2)
35	MAY 13048201
36	KNOB, TEMP CONTROL
37	MAY 13048501SP
38	MAY 12656823
39	MAY 13048601SP
40A	MAY W10474715
40	MAY W10474716
41	MOUNT-GEAR (LEFT HAND)
41A	MOUNT-GEAR (RIGHT HAND)
42	MAY W10149389N
