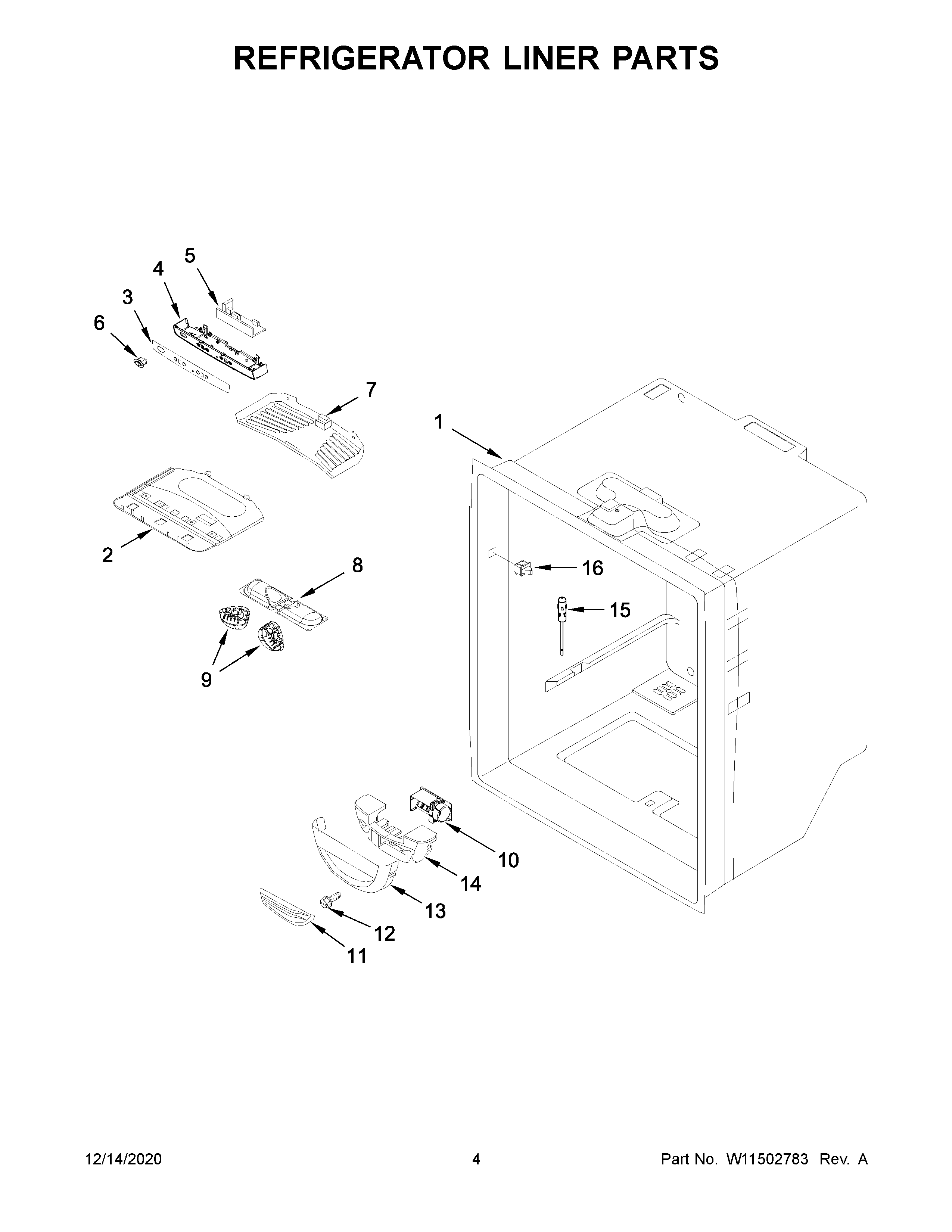

MFF2258FEZ05 03 – REFRIGERATOR LINER PARTS

Products

PositionProduct
NICABINET (NOT A SERVICEABLE PART)
NIW11469744 Whirlpool Refrigerator Wire Harness
2W10464766 Whirlpool Refrigerator Housing Assembly
3W11469742 Whirlpool Refrigerator Overlay
4W11469741 Whirlpool Refrigerator Housing
5WPW10637328-includeCORE Whirlpool WPW10637328 Refrigerator Electronic Control Board + Core
6W11469740 Whirlpool Refrigerator Switch
7W11284721 Whirlpool Refrigerator Cover
8W10443023 Whirlpool Refrigerator Housing
9MODULE
10WPW10594330 Whirlpool Refrigerator Control
1167003900 Whirlpool Refrigerator Insert Damper Cover
12WP400021-1 Whirlpool Screw
13WP12806701 Whirlpool Refrigerator Box Cover
14INSULATION
1512002355 Whirlpool Refrigerator Thermistor Kit
16W11291138 Whirlpool Refrigerator Door Switch
