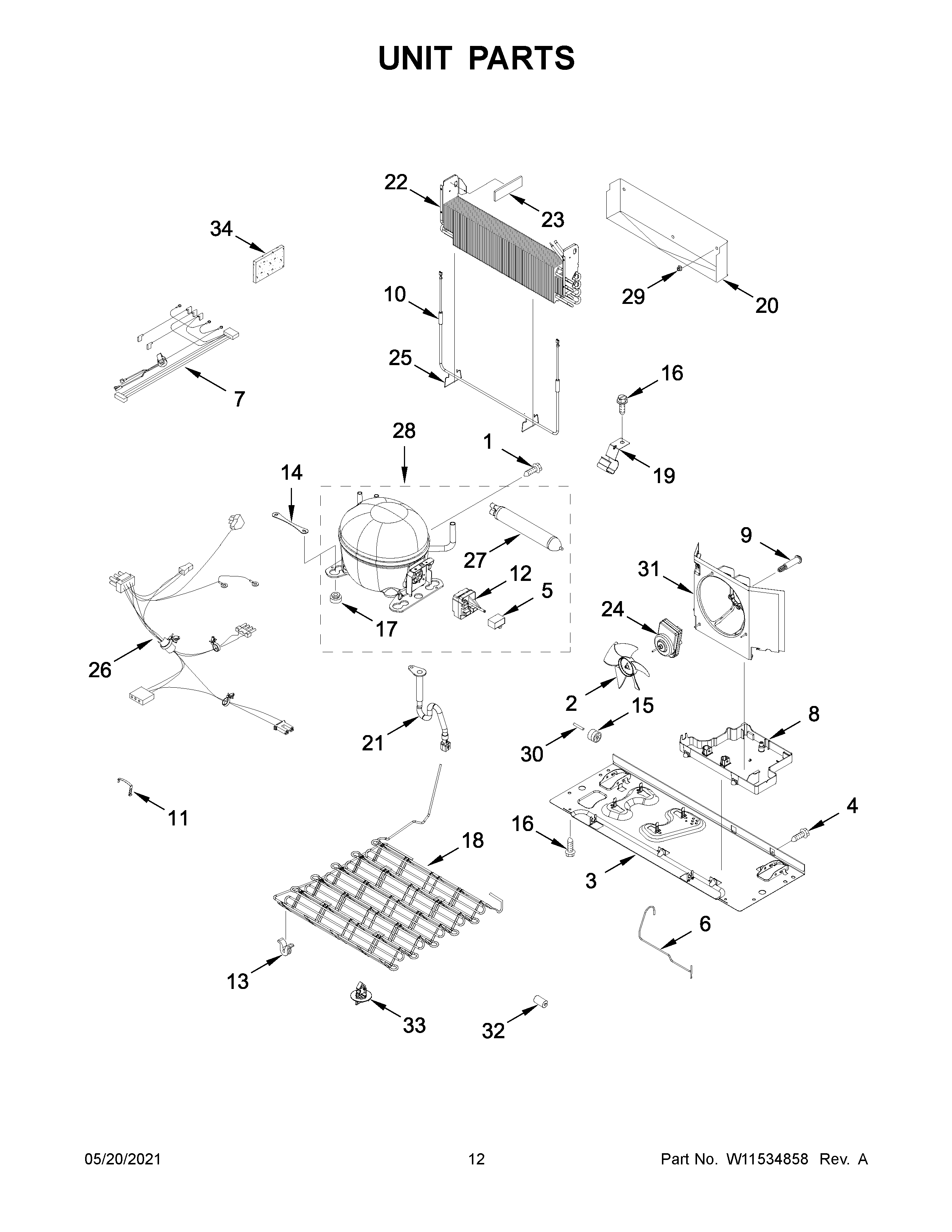

MFF2258FEZ06 07 – UNIT PARTS

Products

Position	Product
NI	CABINET (NOT A SERVICEABLE PART)
1	12992301 Whirlpool Refrigerator Screw
2	WP12825803 Whirlpool Refrigerator Fan Blade
3	W10480110 Whirlpool Refrigerator Plate
4	67006425 Whirlpool Refrigerator Screw
5	WPW10350564 Whirlpool Refrigerator Freezer Capacitor
6	W11566600 Whirlpool Tube
7	HARNESS, EVAPORATOR (INCLUDES DEFROST THERMOSTAT)
8	WPW10655367 Whirlpool Refrigerator Drip Pan
9	W10829281 Whirlpool Refrigerator Screw
10	W11524652 Whirlpool Refrigerator Heater
11	W11661170 Whirlpool Clip
12	WPW10197428 Whirlpool Start Device
13	WPW10137529 Whirlpool Refrigerator Grommet
14	W10236396 Whirlpool Refrigerator Strap
15	WP67005149 Whirlpool Roller
16	Screw
17	WPW10169124 Whirlpool Refrigerator Grommet
18	W11482308 Whirlpool Refrigerator Condenser
18B	W11504432 Whirlpool Refrigerator Coupler
18A	W11506623 Whirlpool Refrigerator Coupler
19	W10281329 Whirlpool Clamp
20	TRAY, DRIP
21	W10619951 Whirlpool Drain Tube with Grommet
22A	W11504423 Whirlpool Refrigerator Coupler
22	W11598432 Whirlpool Refrigerator Evaporator Repair
22B	W11504415 Whirlpool Refrigerator Coupler
23	W11451451 Whirlpool Refrigerator Gasket
24	W11613295 Whirlpool Condenser Motor
25	W11380964 Whirlpool Clip Assembly
26	W11741475 Whirlpool Wire Harness
27B	W11504447 Whirlpool Refrigerator Coupler
27	W11109499 Whirlpool Refrigerator Tube
27A	W11504445 Whirlpool Refrigerator Coupler
28C	W11506621 Whirlpool Refrigerator Coupler
28D	W11506635 Whirlpool Refrigerator Valve Coupler
28A	W11504416 Whirlpool Refrigerator Coupler
28B	W11504431 Whirlpool Microwave Coupler
28	COMPRESSOR
29	CLIP, EVAP (2)
30	67006434 Whirlpool Axle Pin
31	W11556315 Whirlpool Shroud
32	W10852725 Whirlpool Refrigerator Grommet
33	W10815863 Whirlpool Clip
34	W11553819 Whirlpool Refrigerator Insulation
