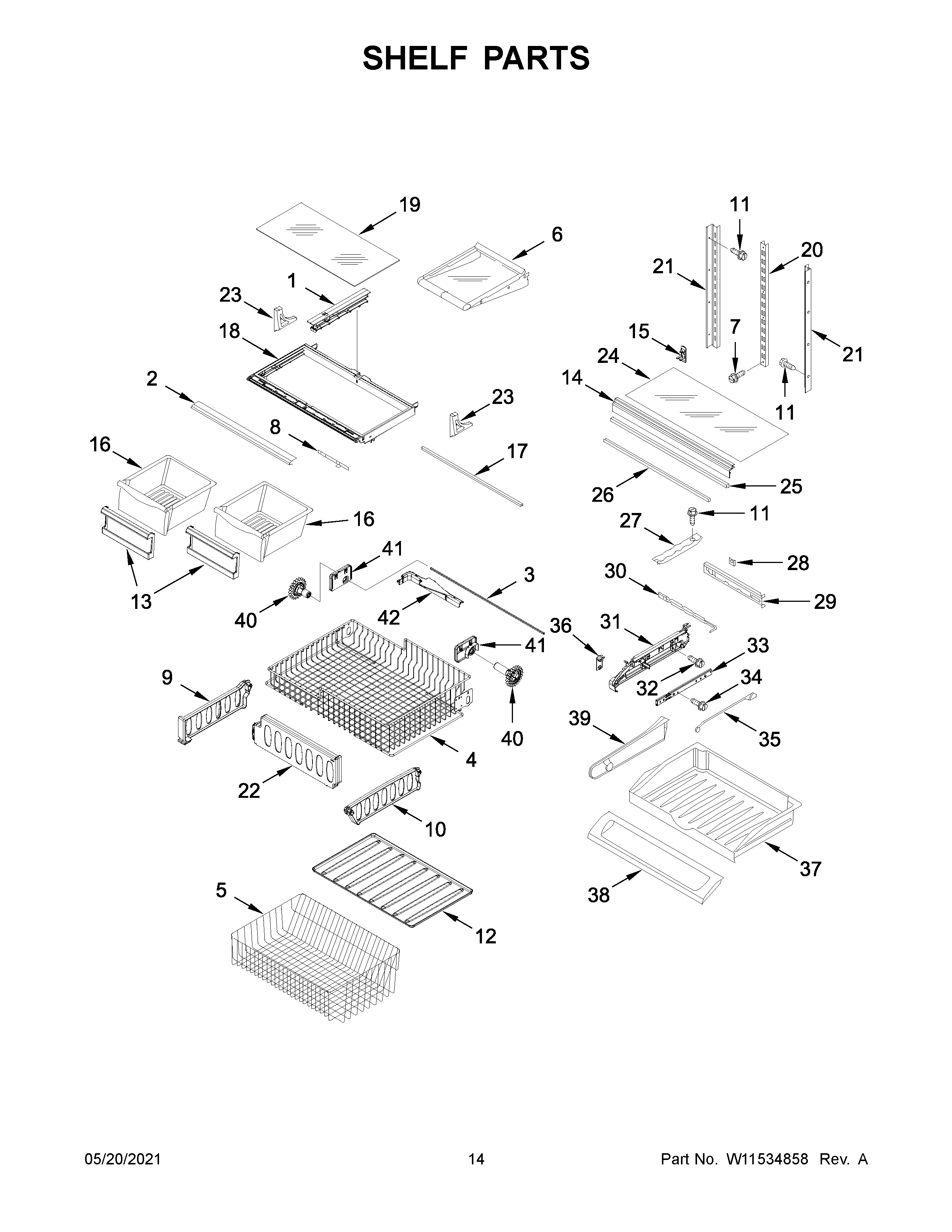

MFF2258FEZ06 08 – SHELF PARTS

MFF2258FEZ06 08 – SHELF PARTS

Written by

in

MFF2258FEZ06 08 – SHELF PARTS

Products

Position	Product
1	RAIL-CENTR CRISPER
2	WPW10231343 Whirlpool Shelf Trim
3	W10802339 Whirlpool Refrigerator Shaft
4	W11281084 Whirlpool Refrigerator Freezer Basket
5	W11281087 Whirlpool Refrigerator Freezer Basket
6	W10801691 Whirlpool Refrigerator Glass Shelf
7	W10215666 Whirlpool Refrigerator Screw
8	SLIDE
9	W10241046 Whirlpool Refrigerator Divider
10	W10847995 Whirlpool Divider Assembly
11	67006425 Whirlpool Refrigerator Screw
12	W10316995 Whirlpool Refrigerator Mat
13	WP67005920 Whirlpool Refrigerator Crisper Drawer Front
14	W11245261 Whirlpool Refrigerator Trim
15	WP67001716 Whirlpool Refrigerator Shelf Support Clip Ladder Hook
16	WP67002633 Whirlpool Crisper Pan
17	WP12227303WD Whirlpool Refrigerator Crisper Brace
18	W10858393 Whirlpool Shelf Frame
19	WP67006878 Whirlpool Refrigerator Crisper Glass
20	W10273463 Whirlpool Refrigerator Ladder
21	W10251969 Whirlpool Refrigerator Ladder
22	W10311695 Whirlpool Refrigerator Divider
23	WP67001721 Whirlpool Refrigerator Support
23A	WP67001722 Whirlpool Refrigerator Support
24	WPW10165870 Whirlpool Refrigerator Glass Shelf
25	W10528936 Whirlpool Refrigerator Trim
26	W10783763 Whirlpool Refrigerator Brace
27	WP67001719 Whirlpool Refrigerator Track
28	GASKET, PANTRY
29	W10165876 Whirlpool Refrigerator Housing
30	W10165882 Whirlpool Refrigerator Slide
31	W11222065 Whirlpool Drawer Support
31A	W11222066 Whirlpool Refrigerator Endcap
32	WP98165 Whirlpool Screw
33	WPW10235370 Whirlpool Refrigerator Glide
34	WP67006415 Whirlpool Refrigerator Screw
35	W10165910 Whirlpool Refrigerator Rod
36	W11498983 Whirlpool Refrigerator Knob
37	W11513151 Whirlpool Refrigerator Utility Pan
38	W10827914 Whirlpool Refrigerator Pantry Drawer Top Front Lid
39	WPW10165967 Whirlpool Divider Assembly
40A	WPW10474715 Whirlpool Refrigerator Gear
40	WPW10474716 Whirlpool Refrigerator Gear
41	W10348259 Whirlpool Refrigerator Bracket Assembly
41A	W10348260 Whirlpool Refrigerator Bracket
42	W10149389 Whirlpool Refrigerator Handle
