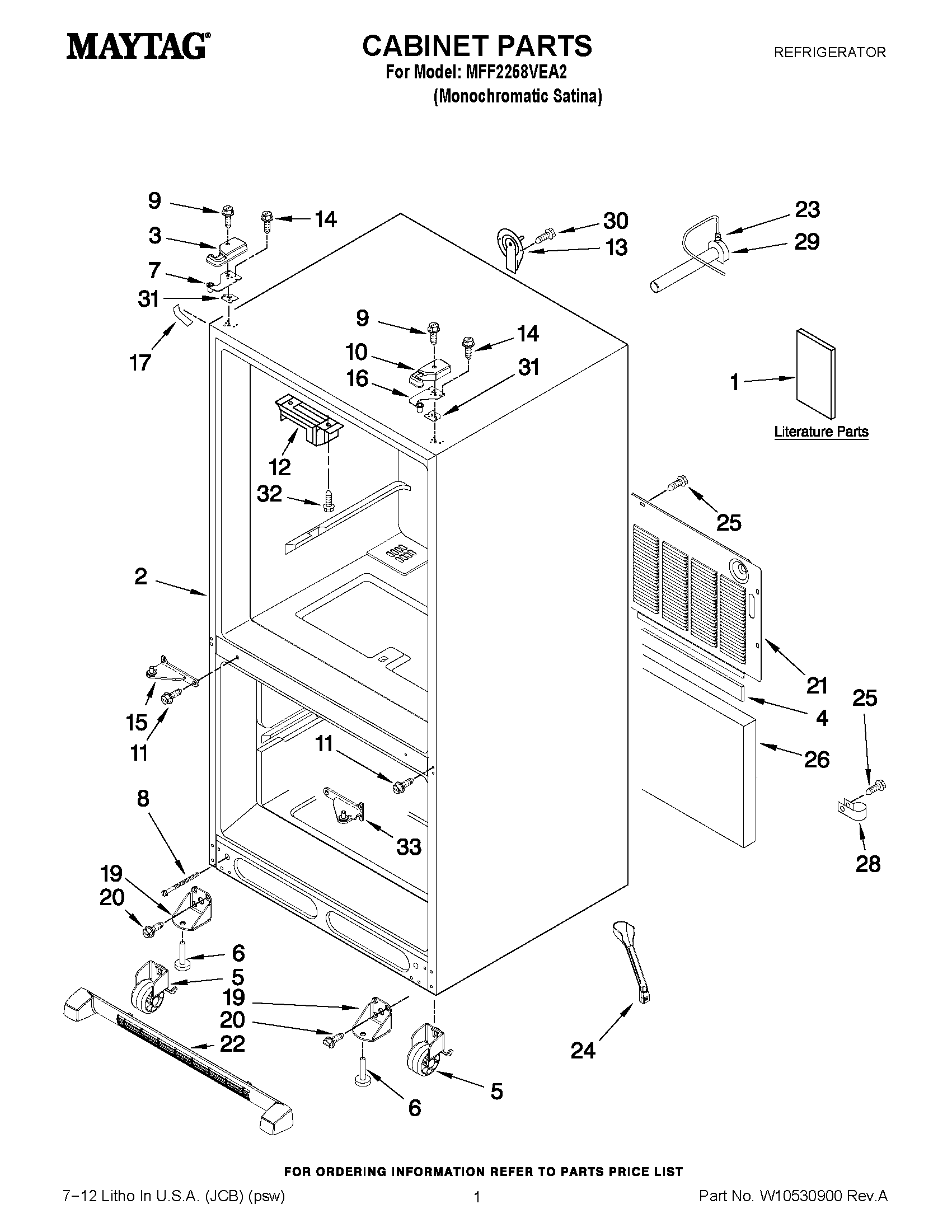

MFF2258VEA2 01 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1	MAY W10260549
1	MAY W10255316
2	LINER (NOT A SERVICEABLE PART)
3	Cover, Left Hinge (Apollo Grey)
4	MAY B5759655
5	ROLLER ASSY.(REAR)
6	Foot Brake (2)
7	MAY 12963204ED
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10	MAY 12962302AP
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (LT) (GREY)
16	MAY 12963205ED
17	COVER, CORNER (GREY)
19	Bracket, Foot
20	Screw (8)
21	MAY W10210979
22	Grille, Toe (Apollo Grey)
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY 10463203SP
30	MAY 12990504
31	MAY 12999502
31	MAY 12999501
32	SCREW (2)
33	HINGE, CENTER (RT) (GREY)
