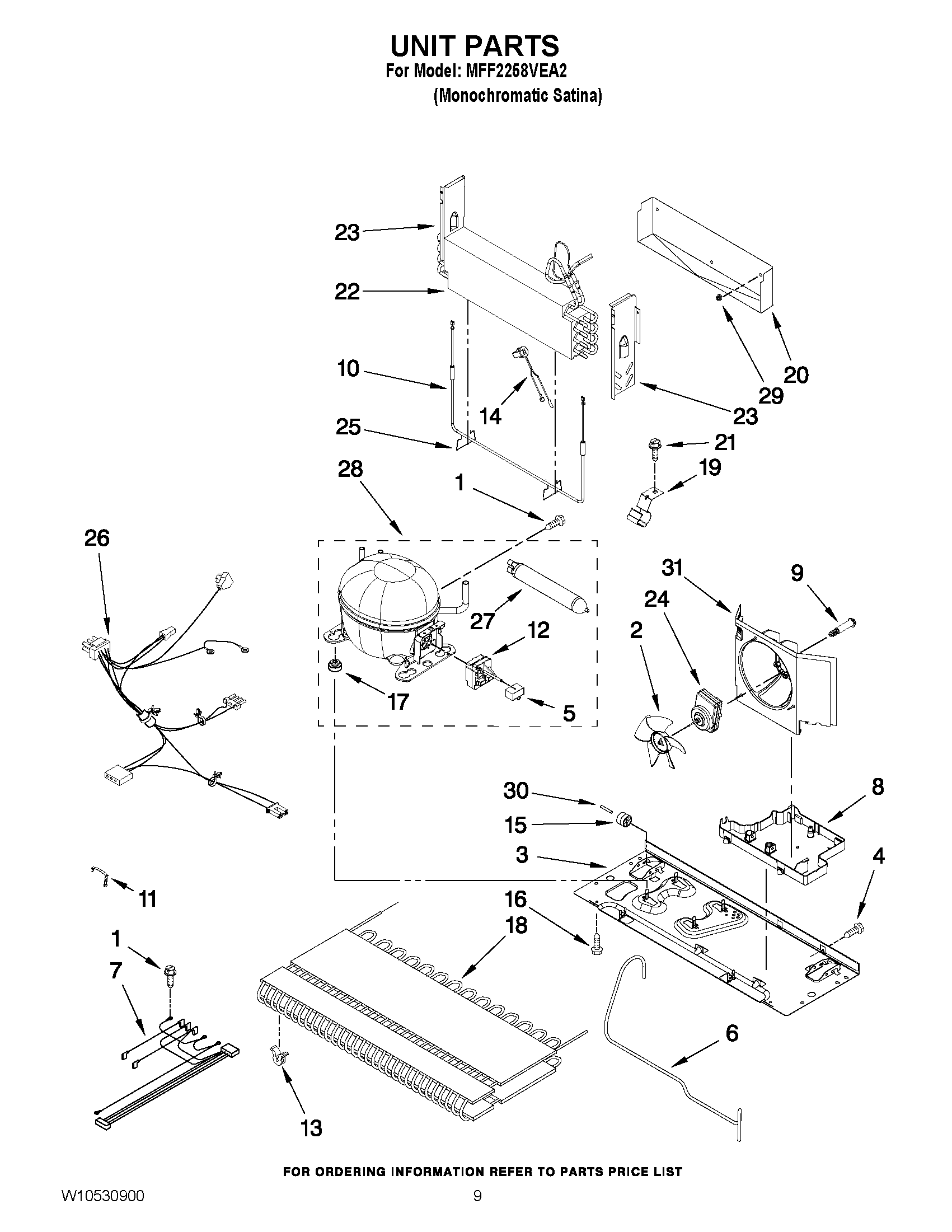

MFF2258VEA2 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	LINER (NOT A SERVICEABLE PART)
NI	VALVE, ACCESS (1/4“)
NI	Valve, Access (5/16“)
NI	Valve, Access (1/2“)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	MAY 876764
1	MAY 12992301
2	MAY 12825803
3	MAY W10210983
4	SCREW (10)
5	Capacitator (Production)
6	MAY W10217748
7	HARNESS, EVAP HEATER
8	Drain Pan
9	MAY W10216919
10	MAY 12729128
11	Clip, Retaining
12	START DEVICE, COMBINATION (START RELAY AND OVERLOAD FOR PRODUCTION COMPRESSOR ONLY) (PRODUCTION)
13	GROMMET, COND (4)
14	Thermostat
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10135027
19	MAY 10547003
20	MAY 12225402WD
21	MAY 12990701
22	MAY 12726402
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY 12825101
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	Compressor (Includes items 11,12,17,27,29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
