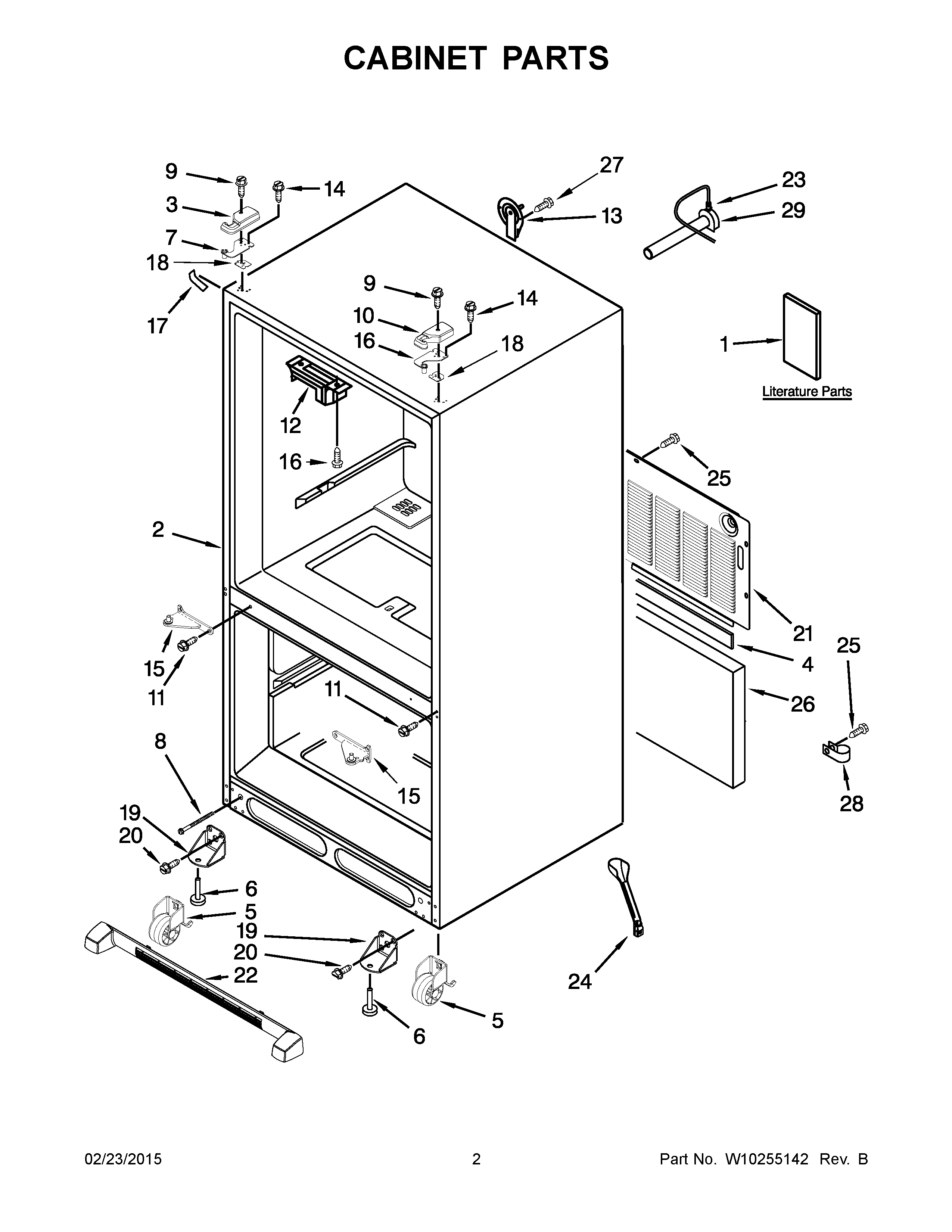

MFF2258VEB10 02 – CABINET PARTS

Products

Position	Product
1	Owners Manual
1A	MAY W10183275
1B	MAY W10238844
2	LINER (NOT A SERVICEABLE PART)
3	Cover, Left Hinge (White)
3A	COVER, TOP HINGE (LEFT) (BLACK)
3B	Cover, Left Hinge (Apollo Grey)
4	Gasket
5	ROLLER ASSY.(REAR)
6	Foot Brake (2)
7	MAY 12963204ED
7A	MAY 12963205ED
8	Bolt, Adjusting (Rear)
9	MAY 12992602
10B	MAY 12962302AP
10	MAY 12962302W
10A	MAY 12962302B
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15B	HINGE, CENTER (LT) (GREY)
15E	HINGE, CENTER (RT) (GREY)
15C	Hinge, Center (RT) (White)
15	Hinge, Center (LT) (White)
15D	Hinge, Center (RT) (Black)
15A	Hinge, Center (LT) (Black)
16	SCREW (2)
17	Cover, Corner (2) (White)
17B	COVER, CORNER (GREY)
17A	COVER, CORNER (BLACK)
18	MAY 12999501
18A	MAY 12999502
19	Bracket, Foot
20	Screw (8)
21	MAY W10210979
22	MAY W10236195
22B	MAY W10534155
22A	MAY W10236196
23	Clip
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	MAY 12990504
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY 10463203SP
