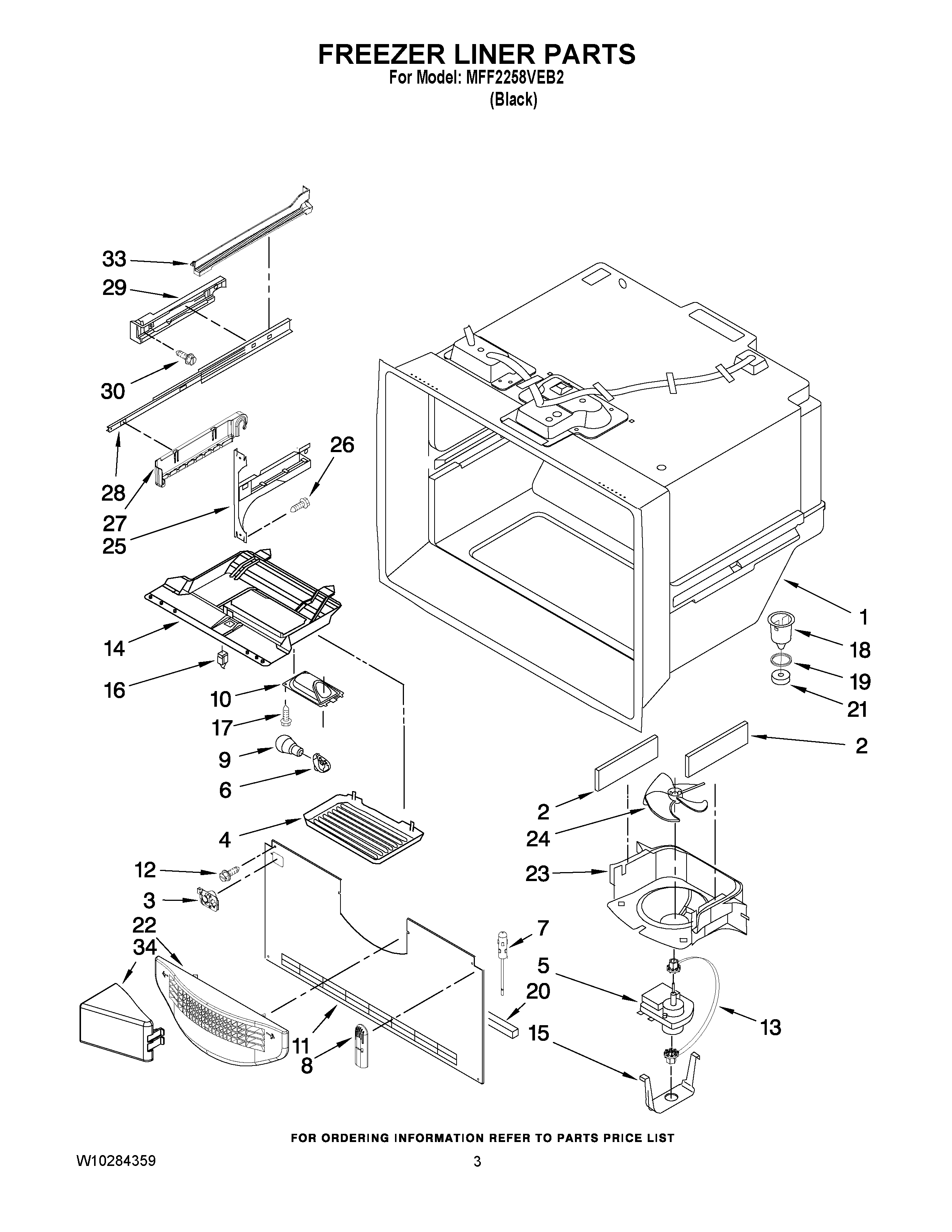

MFF2258VEB2 02 – FREEZER LINER PARTS

Products

Position	Product
NI	MAY 13014801
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	MAY 12804901
5	MAY W10128551
6	Socket, Light
7	12002355 Whirlpool Refrigerator Thermistor Kit
8	MAY 12815301
9	Bulb, Light (2)
10	MAY 12476401V
11	MAY 12226111
12	SCREW (10)
13	MAY W10121318
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12991603V
18	MAY D7753903
19	MAY M0500703
20	MAY A3189395
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	BRACKET, DOOR (RIGHT)
25	BRACKET, DOOR (LEFT)
26	Screw (8)
27	Bracket, Basket (Left)
27	Bracket, Basket (Right)
28	MAY W10120018
29	MAY W10149390
29	MAY W10149391
30	Screw (6)
33	RAIL, SIDE (LEFT HAND)
33	RAIL, SIDE (RIGHT HAND)
34	MAY W10157765
