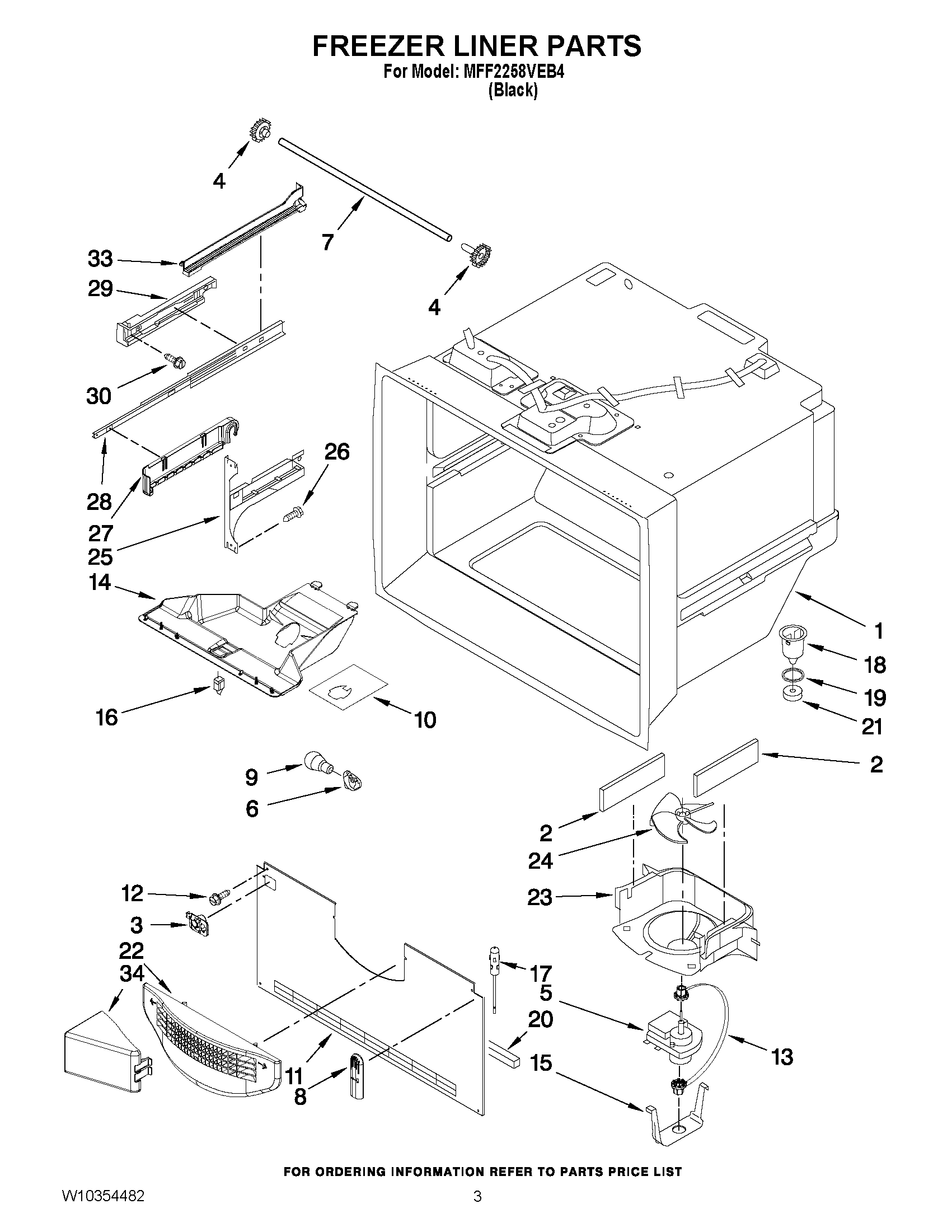

MFF2258VEB4 02 – FREEZER LINER PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	Gasket, Bottom
3	MAY 12932103
4	12002497 Whirlpool Refrigerator Drawer Gear Kit
5	MAY W10128551
6	Socket, Light
7	MAY 12812902WD
8	MAY 12815301
9	BULB, LIGHT (2)
10	FOIL-FZ LIGHT
11	MAY W10308415
12	SCREW (10)
13	MAY W10121318
14	MODULE-FZ LIGHT
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12791409SP
18	MAY D7753903
19	MAY M0500703
20	Gasket, Bottom
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25	BRACKET, DOOR (RIGHT)
25	BRACKET, DOOR (LEFT)
26	Screw (8)
27	CRADLE-BASKET (LEFT HAND)
27	CRADLE-BASKET (RIGHT HAND)
28	MAY W10120018
29	ADAPTER, SLIDE (RIGHT HAND)
29	ADAPTER, SLIDE (LEFT HAND)
30	Screw (6)
33	RACK-SIDE (RIGHT)
33	RACK-SIDE (LEFT)
34	MAY W10157765
