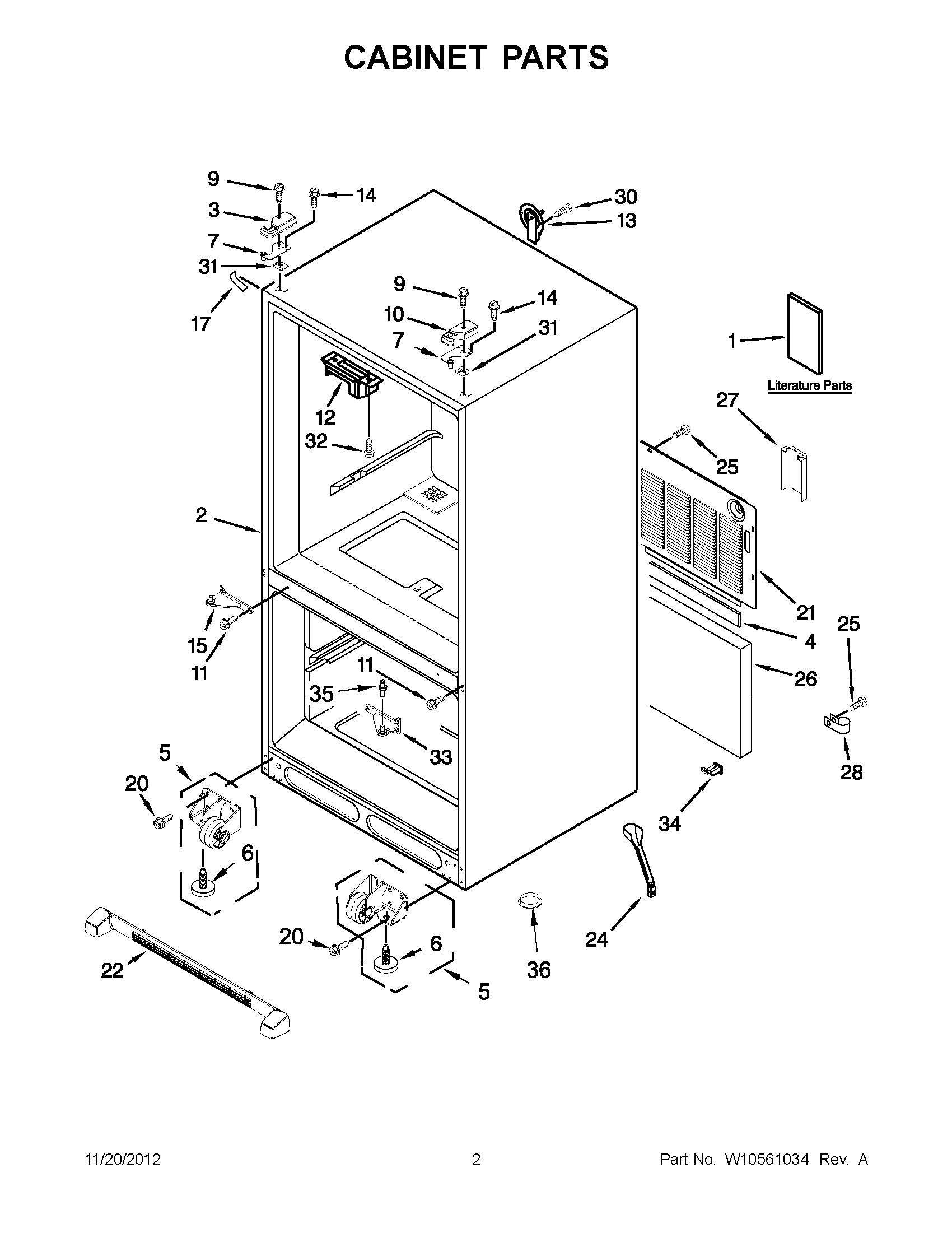

MFF2258VEB7 01 – CABINET PARTS

MFF2258VEB7 01 – CABINET PARTS

Written by

in

MFF2258VEB7 01 – CABINET PARTS

Products

PositionProduct
1MAY W10260549
1MAY W10366206
1MAY W10517966
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301B
4MAY B5759655
5ROLLER ASSEMBLY (LEFT HAND)
5ROLLER ASSEMBLY (RIGHT HAND)
6Brake, Foot
7MAY 12963204ED
7MAY 12963205ED
9MAY 12992602
10MAY 12962302B
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15HINGE, CENTER (BLACK, LEFT)
17COVER, CORNER (BLACK)
20Screw (8)
21MAY W10210979
22GRILLE ASSEMBLY (INCLUDES CLIPS) (BLACK)
24TUBE-DRAIN
25SCREW (10)
26Insulation, Sound
27GUARD-WATER VALVE
28CLAMP, TUBE
30MAY 12990504
31MAY 12999502
31MAY 12999501
32Screw (4)
33HINGE, CENTER (BLACK, RIGHT )
34MAY W10485986
35MAY 10351006
36A3076901 Whirlpool Refrigerator Plug
