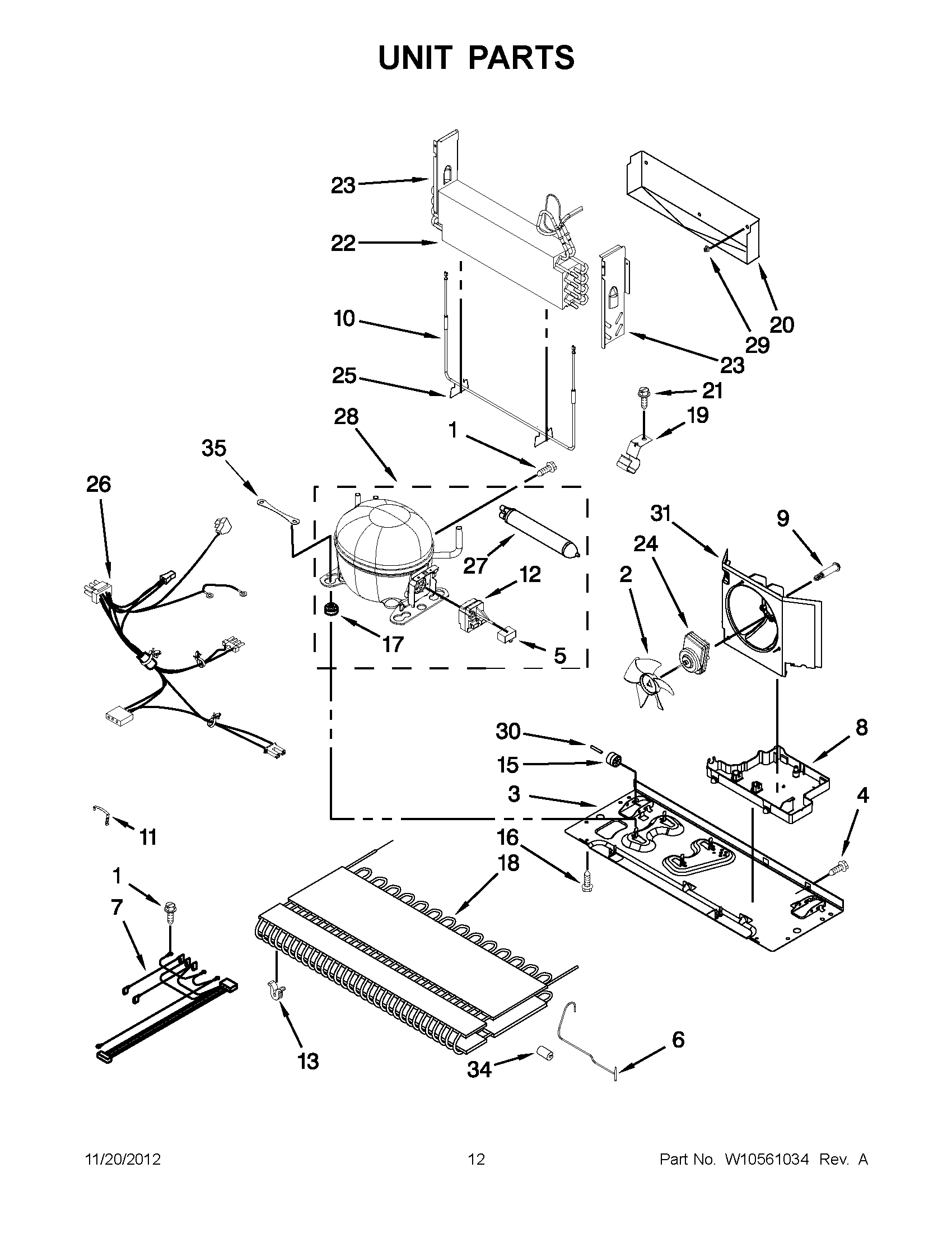

MFF2258VEB7 06 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	MAY 876764
NI	Valve, Access (5/16“)
NI	Valve, Access (1/2“)
NI	LINER (NOT A SERVICEABLE PART)
NI	Valve, Access (5/8“)
NI	Valve, Access (3/4“)
NI	VALVE, ACCESS (1/4“)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480110
4	SCREW (10)
5	MAY W10350564
6	MAY W10233570
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10296784
9	MAY W10216919
10	MAY 12729128
11	MAY W10216075
11	START DEVICE, COMBINATION (START RELAY AND OVERLOAD) (PRODUCTION)
13	GROMMET, COND (4)
15	Roller (2)
16	MAY 12992101
17	Grommet (4)
18	MAY W10505456
19	MAY W10281329
20	MAY W10292802
21	MAY 12990701
22	MAY W10317013
23	DAM (LEFT SIDE)
23	Dam (Right Side)
24	MAY W10239053
25	W11673433 Whirlpool Clip
26	HARNESS, UNIT (INCLUDES POWER CORD)
27	Drier
28	COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & 29)
29	MAY 10623002
30	Axle, Roller (2)
31	SHROUD
34	GROMMET, CONDENSER
35	MAY W10236396
