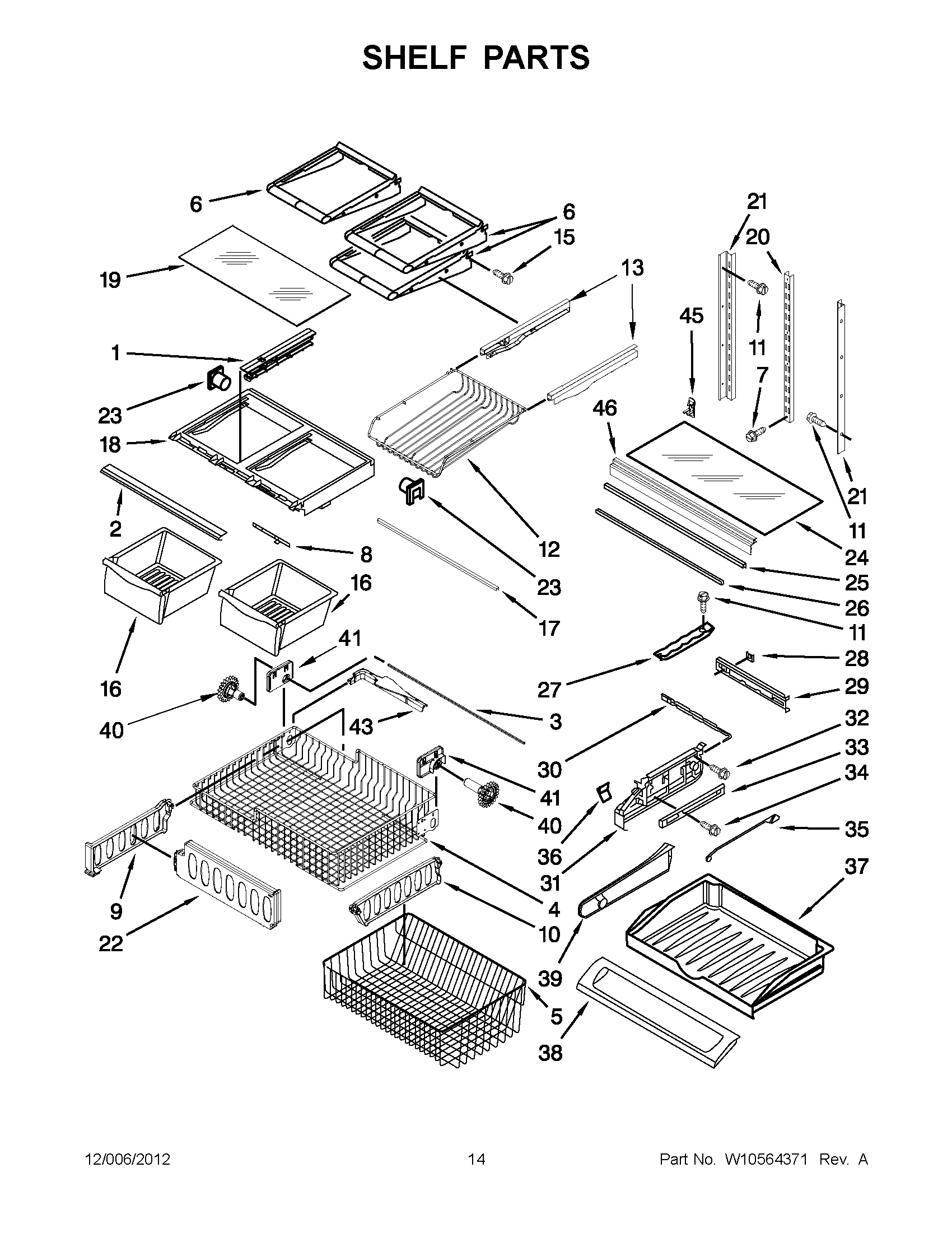

MFF2258VEB8 07 – SHELF PARTS
Written by
in
MFF2258VEB8 07 – SHELF PARTS
Products
Position
Product
1
MAY 12530701N
2
MAY W10231343N
3
MAY 12812905WD
4
BASKET, UPPER
5
MAY W10503183
6
MAY 12463509
7
MAY W10215666
8
MAY 12530805SP
9
Divider, Upper Basket
10
Divider, Lower Basket
11
MAY 12990513
12
RACK-CAN
13
GLIDE, LEFT
13
GLIDE, RIGHT
15
SCREW
16
MAY 12530505N
17
BRACE, CRISPER FRAME
18
FRAME, CRISPER
19
MAY 12204822N
20
MAY W10273463
21
MAY W10251969
22
DIVIDER, UPPER
23
SUPPORT-RIGHT
23
SUPPORT-LEFT
24
MAY 12204820
25
MAY 12655903
26
MAY 12227301WD
27
TRACK, PANTRY
28
MAY 12656902
29
MAY 13048301
30
MAY 13048401
31
MAY 13047701
31
MAY 13047801
32
MAY 12990504
33
MAY W10235370
34
SCREW (2)
35
MAY 13048201
36
KNOB, TEMP CONTROL
37
MAY 13048501SP
38
MAY 12656820
39
MAY 13048601SP
40
MAY W10474715
40
MAY W10474716
41
MOUNT-GEAR (LEFT HAND)
41
MOUNT-GEAR (RIGHT HAND)
43
MAY W10149389N
45
HOOK-LADDER (2)
46
MAY 13048801
←
