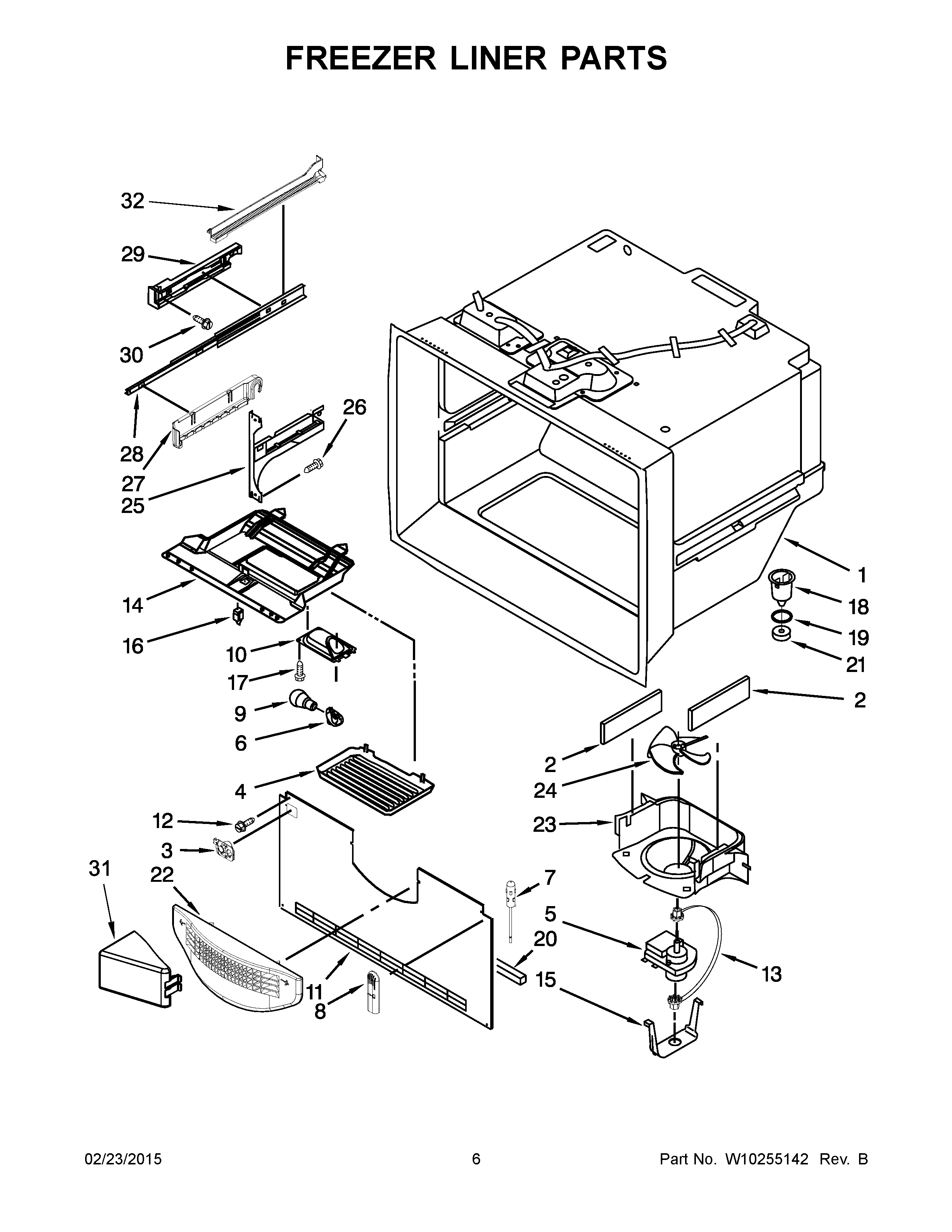

MFF2258VEM10 04 – FREEZER LINER PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY 13014801
2	Gasket, Bottom
3	MAY 12932103
4	MAY 12804901
5	MAY W10128551
6	W11447232 Whirlpool Refrigerator Socket
7	12002355 Whirlpool Refrigerator Thermistor Kit
8	MAY 12815301
9	MAY W10194422
10	HOUSING, FRZ. LIGHT
11	MAY 12226111
12	SCREW (10)
13	MAY W10121318
14	MODULE, FZ CONTROL
15	CLIP, EVAP. MOTOR
16	MAY 12466105
17	MAY 12991603
18	MAY D7753903
19	MAY M0500703
20	MAY A3189395
21	Gasket
22	Grille, Fz Air
23	SHROUD, EVAP.FAN
24	Blade, Fan (Evaporator)
25A	BRACKET, DOOR (RIGHT)
25	BRACKET, DOOR (LEFT)
26	Screw (8)
27A	Bracket, Basket (Right)
27	Bracket, Basket (Left)
28	MAY W10120018
29	MAY W10149390
29A	MAY W10149391
30	Screw (6)
31	MAY W10157765
32	RAIL, SIDE (LEFT HAND)
32A	RAIL, SIDE (RIGHT HAND)
