MFF2258VEM10 05 – REFRIGERATOR DOOR PARTS – Aparts

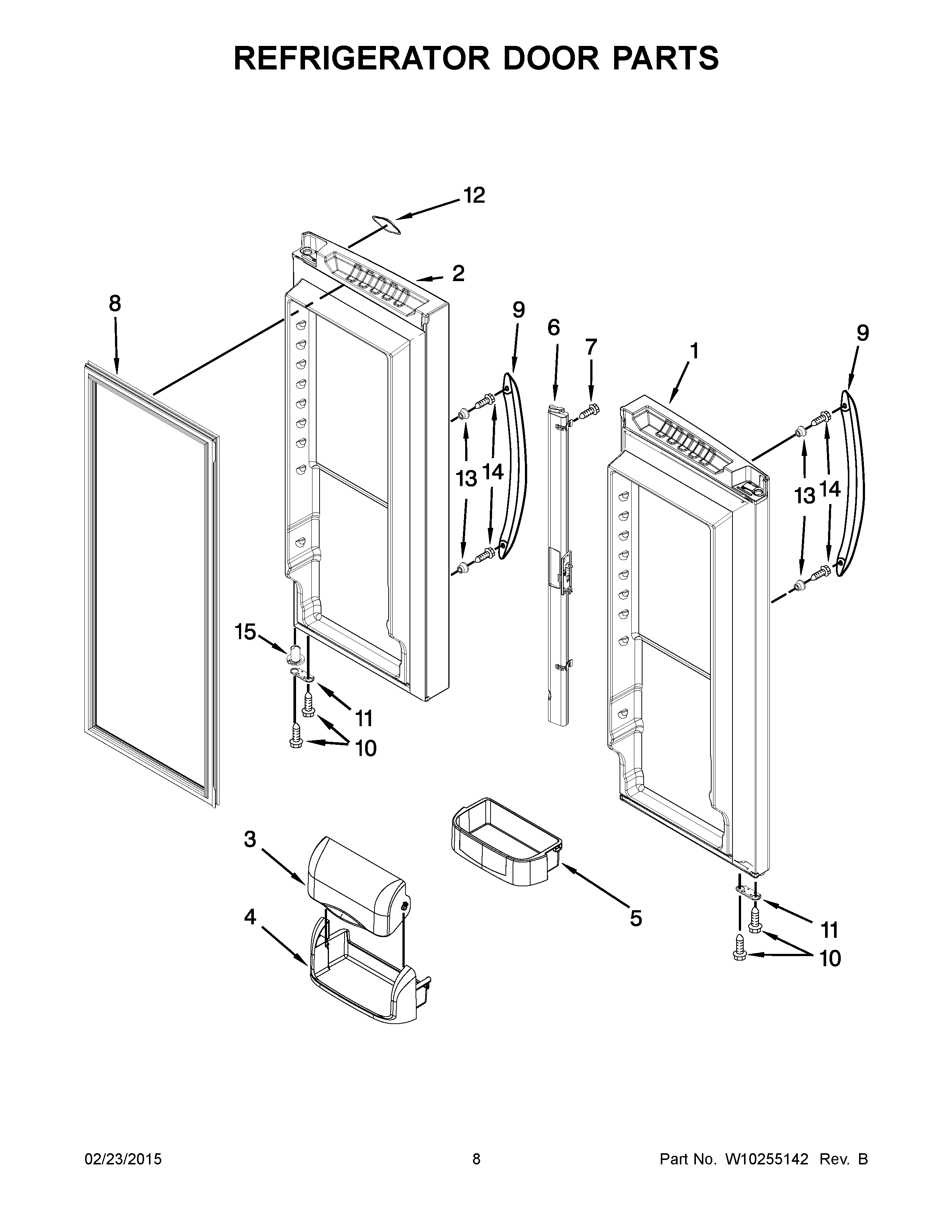

MFF2258VEM10 05 – REFRIGERATOR DOOR PARTS

Products

Position	Product
1B	MAY 12978046SQ
1C	MAY 12978046LQ
1A	MAY W10258327
1	MAY W10258326
2C	MAY 12978045LQ
2B	MAY 12978045SQ
2A	MAY W10258329
2	MAY W10258328
3	MAY 12804701
4	MAY 12369502
5A	MAY 12801902
5B	MAY 12840003
5	BUCKET, SMALL
6	MAY 12722803W
6A	MAY 12722803B
6B	MAY 12722803AP
7	MAY 12990204
8D	MAY W10163895
8B	MAY W10218680
8A	MAY W10218679
8	MAY W10218678
8E	Gasket, Door (2) (Apollo Grey)
8C	Gasket, Door (2) (White)
9A	MAY W10197298
9	MAY W10197296
9B	Handle, Door (Stainless)
10	MAY 12990504
11B	MAY 12968202AP
11	MAY 12968202W
11A	MAY 12968202B
12	Nameplate
13	MAY 13001201
14	SCREW
15B	MAY 12028505AP
15A	MAY 12028505B
15	MAY 12028505W
