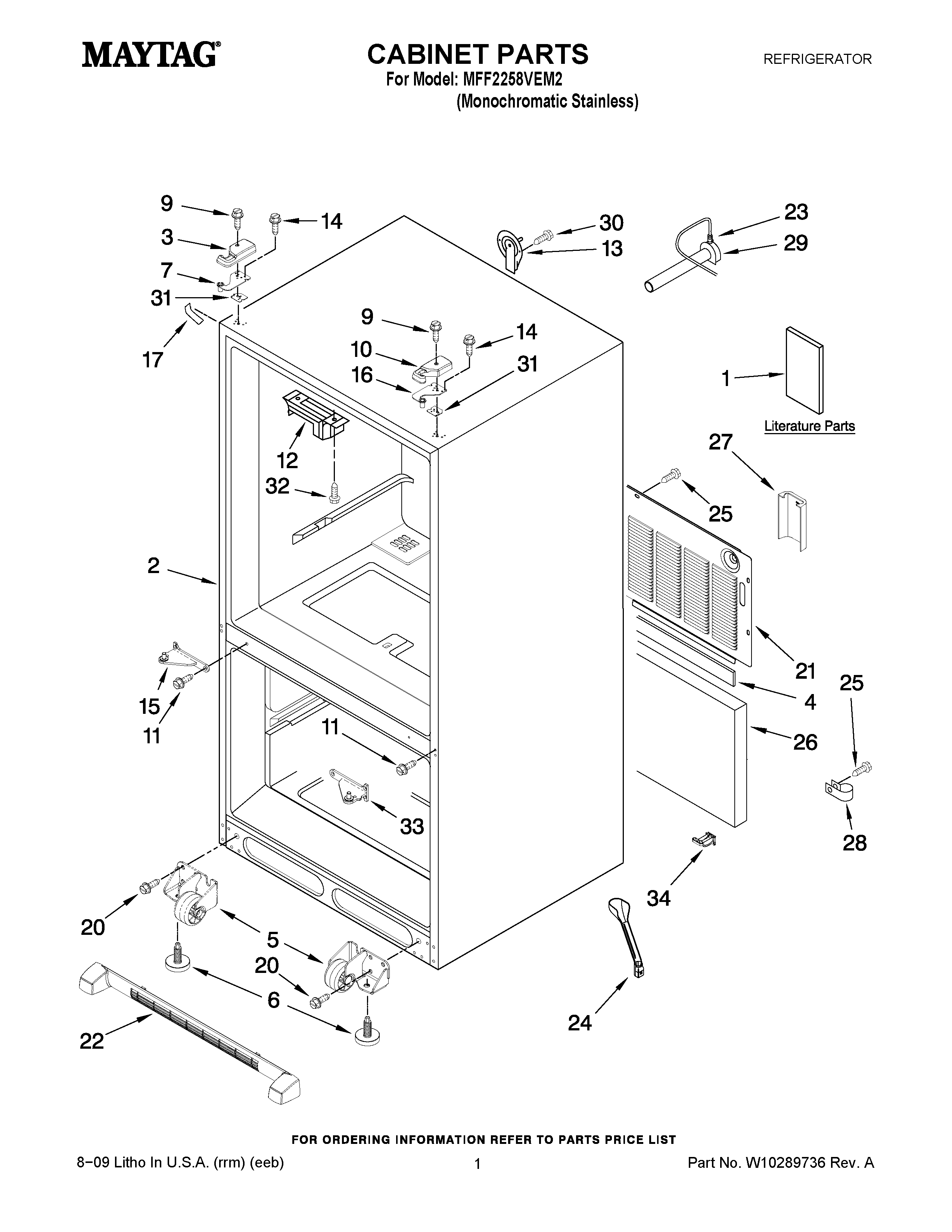

MFF2258VEM2 01 – CABINET PARTS

Products

Position	Product
1	MAY W10260549
1	Owners Manual
1	MAY W10255316
2	LINER (NOT A SERVICEABLE PART)
3	Cover, Left Hinge (Apollo Grey)
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (RIGHT)
5	ROLLER ASSY. (FRONT) (LEFT)
6	Brake, Foot
7	MAY 12963204ED
9	MAY 12992602
10	MAY 12962302AP
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (LT) (GREY)
16	MAY 12963205ED
17	COVER, CORNER (GREY)
20	Screw (8)
21	MAY W10210979
22	Grille, Toe (Apollo Grey)
23	CLIP
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	W10833902 Whirlpool Refrigerator Clamp
29	MAY 10463203SP
30	MAY 12990504
31	MAY 12999502
31	MAY 12999501
32	SCREW (2)
33	HINGE, CENTER (RT) (GREY)
34	MAY W10216614
