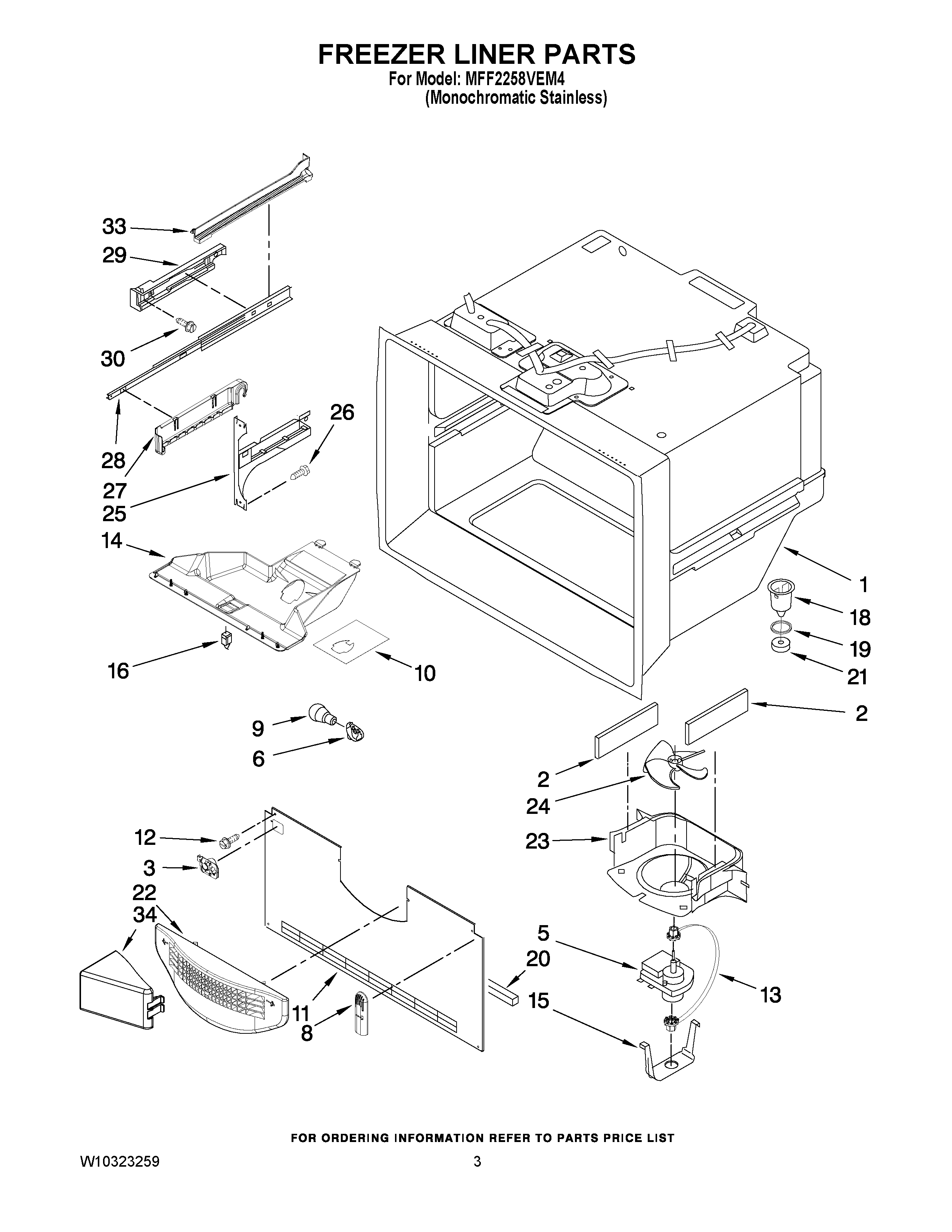

MFF2258VEM4 02 – FREEZER LINER PARTS

MFF2258VEM4 02 – FREEZER LINER PARTS

Written by

in

MFF2258VEM4 02 – FREEZER LINER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
5MAY W10128551
6Socket, Light
8MAY 12815301
9Bulb, Light (2)
10FOIL-FZ LIGHT
11MAY W10308415
12SCREW (10)
13MAY W10121318
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
18MAY D7753903
19MAY M0500703
20Gasket, Bottom
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25BRACKET, DOOR (LEFT)
25BRACKET, DOOR (RIGHT)
26Screw (8)
27CRADLE-BASKET (LEFT HAND)
27CRADLE-BASKET (RIGHT HAND)
28MAY W10120018
29MAY W10149390
29MAY W10149391
30Screw (6)
33RACK-SIDE (LEFT)
33RACK-SIDE (RIGHT)
34MAY W10157765
