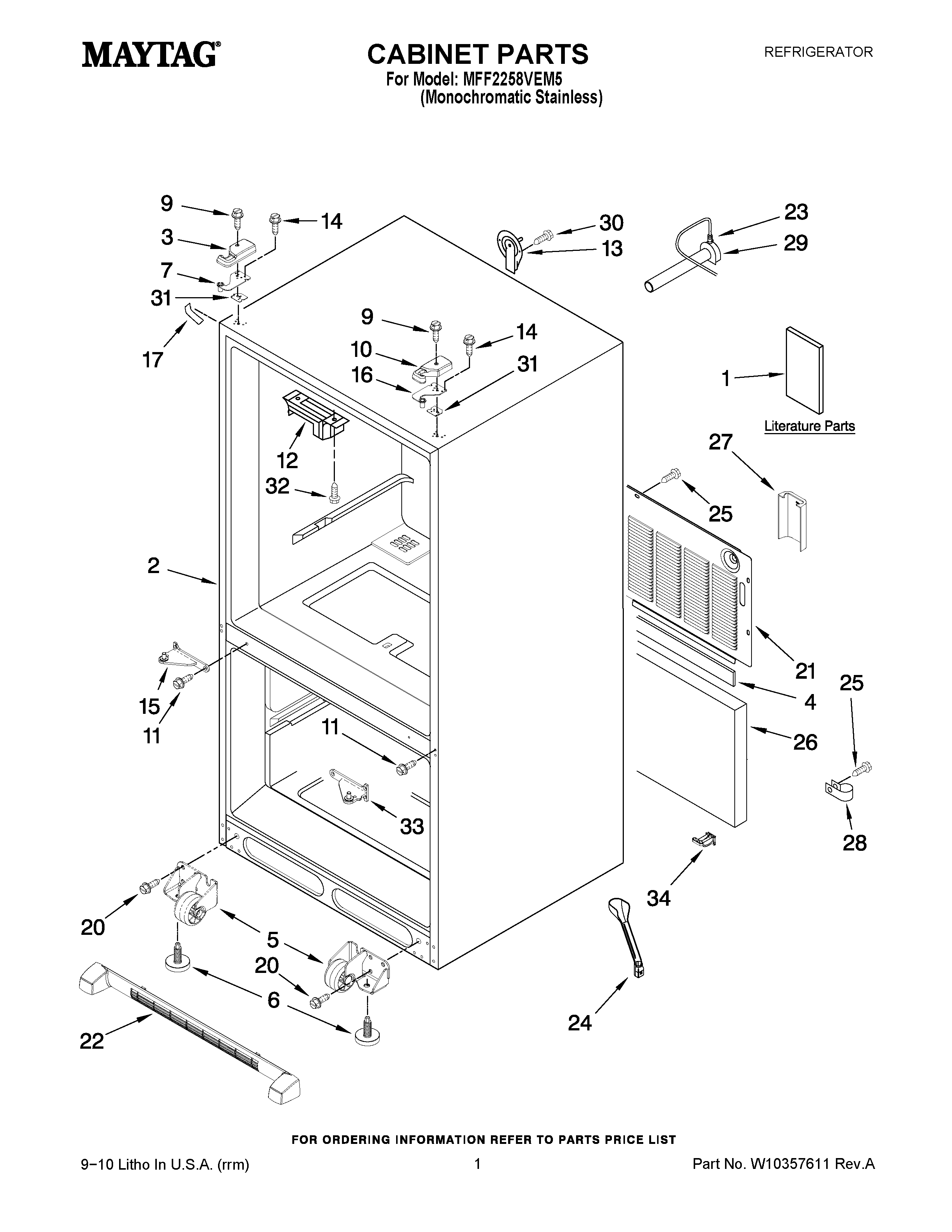

MFF2258VEM5 01 – CABINET PARTS

MFF2258VEM5 01 – CABINET PARTS

Written by

in

MFF2258VEM5 01 – CABINET PARTS

Products

PositionProduct
1OWNERS MANUAL
1MAY W10260549
1MAY W10322959
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301AP
4MAY B5759655
5ROLLER ASSY. (FRONT) (RIGHT)
5ROLLER ASSY. (FRONT) (LEFT)
6Brake, Foot
7MAY 12963204ED
9MAY 12992602
10MAY 12962302AP
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15HINGE, CENTER (LT) (GREY)
16MAY 12963205ED
17COVER, CORNER (GREY)
20Screw (8)
21MAY W10210979
22Grille, Toe (Apollo Grey)
23CLIP
24MAY W10210988
25SCREW (10)
26Insulation, Sound
27GUARD-WATER VALVE
28CLAMP, TUBE
29MAY 10463203SP
30MAY 12990504
31MAY 12999502
31MAY 12999501
32Screw (4)
33HINGE, CENTER (RT) (GREY)
34MAY W10216614
