MFF2258VEM9 01 – CABINET PARTS – Aparts

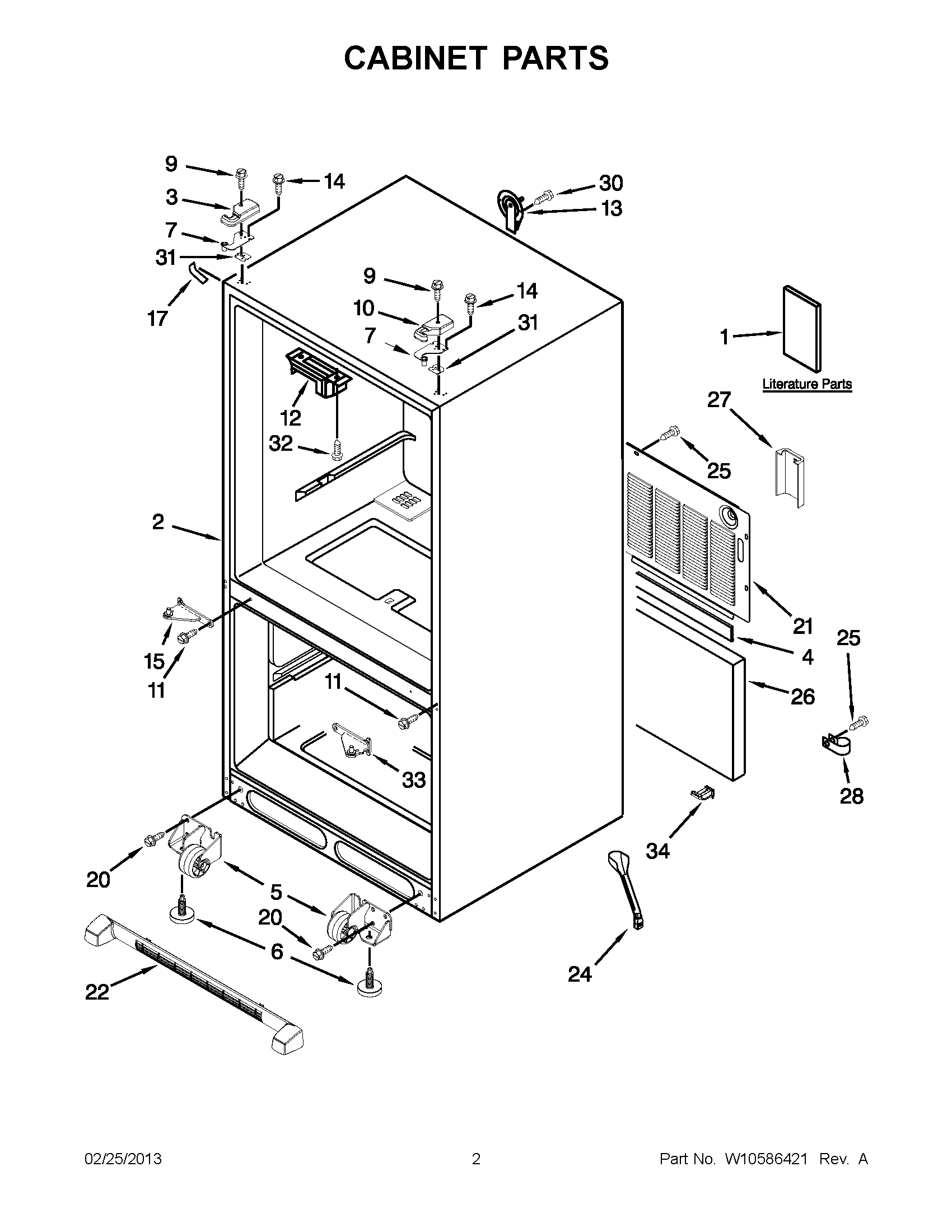

MFF2258VEM9 01 – CABINET PARTS

Products

Position	Product
1	MAY W10517966N
1	MAY W10366206
1	MAY W10260549
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301AP
4	MAY B5759655
5	ROLLER ASSEMBLY (LEFT HAND)
5	ROLLER ASSEMBLY (RIGHT HAND)
6	Brake, Foot
7	MAY 12963204ED
7	MAY 12963205ED
9	MAY 12992602
10	MAY 12962302AP
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	HINGE, CENTER (LT) (GREY)
17	COVER, CORNER (GREY)
20	Screw (8)
21	MAY W10210979
22	MAY W10236194N
24	TUBE-DRAIN
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	CLAMP, TUBE
30	MAY 12990504
31	MAY 12999502
31	MAY 12999501
32	Screw (4)
33	HINGE, CENTER (RT) (GREY)
34	MAY W10485986
