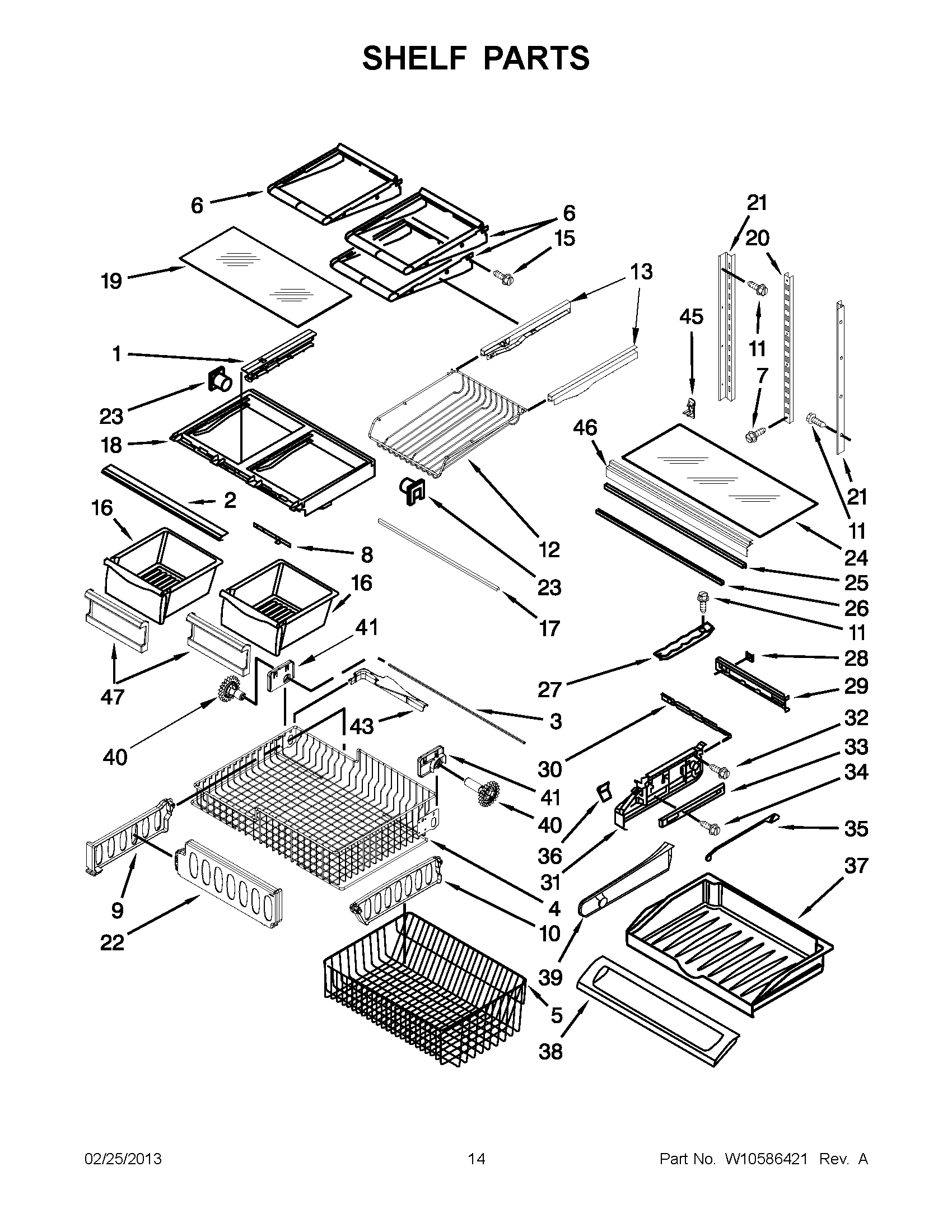

MFF2258VEM9 07 – SHELF PARTSadmin2025-04-26T09:12:06+00:00MFF2258VEM9 07 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | MAY 12530701N |
| 2 | MAY W10231343N |
| 3 | MAY 12812905WD |
| 4 | BASKET, UPPER |
| 5 | MAY W10503183N |
| 6 | MAY 12463509 |
| 7 | MAY W10215666 |
| 8 | MAY 12530805SP |
| 9 | Divider, Upper Basket |
| 10 | DIVIDER, LOWER BASKET |
| 11 | MAY 12990513 |
| 12 | RACK-CAN |
| 13 | GLIDE, LEFT |
| 13 | GLIDE, RIGHT |
| 15 | SCREW |
| 16 | MAY 12530505SP |
| 17 | BRACE, CRISPER FRAME |
| 18 | MAY W10568041 |
| 19 | MAY 12204822N |
| 20 | MAY W10273463 |
| 21 | MAY W10251969 |
| 22 | DIVIDER, UPPER |
| 23 | SUPPORT-LEFT |
| 23 | SUPPORT-RIGHT |
| 24 | MAY 12204820 |
| 25 | MAY W10528936 |
| 26 | MAY 12227301WD |
| 27 | TRACK, PANTRY |
| 28 | MAY 12656902 |
| 29 | MAY 13048301 |
| 30 | MAY 13048401 |
| 31 | MAY 13047801 |
| 31 | MAY 13047701 |
| 32 | MAY 12990504 |
| 33 | MAY W10235370 |
| 34 | SCREW (2) |
| 35 | MAY 13048201 |
| 36 | KNOB, TEMP CONTROL |
| 37 | MAY 13048501SP |
| 38 | MAY 12656820 |
| 39 | MAY 13048601SP |
| 40 | MAY W10474716 |
| 40 | MAY W10474715 |
| 41 | MOUNT-GEAR (RIGHT HAND) |
| 41 | MOUNT-GEAR (LEFT HAND) |
| 43 | MAY W10149389N |
| 45 | HOOK-LADDER (2) |
| 46 | MAY 13048801 |
| 47 | FRONT, CRISPER |
