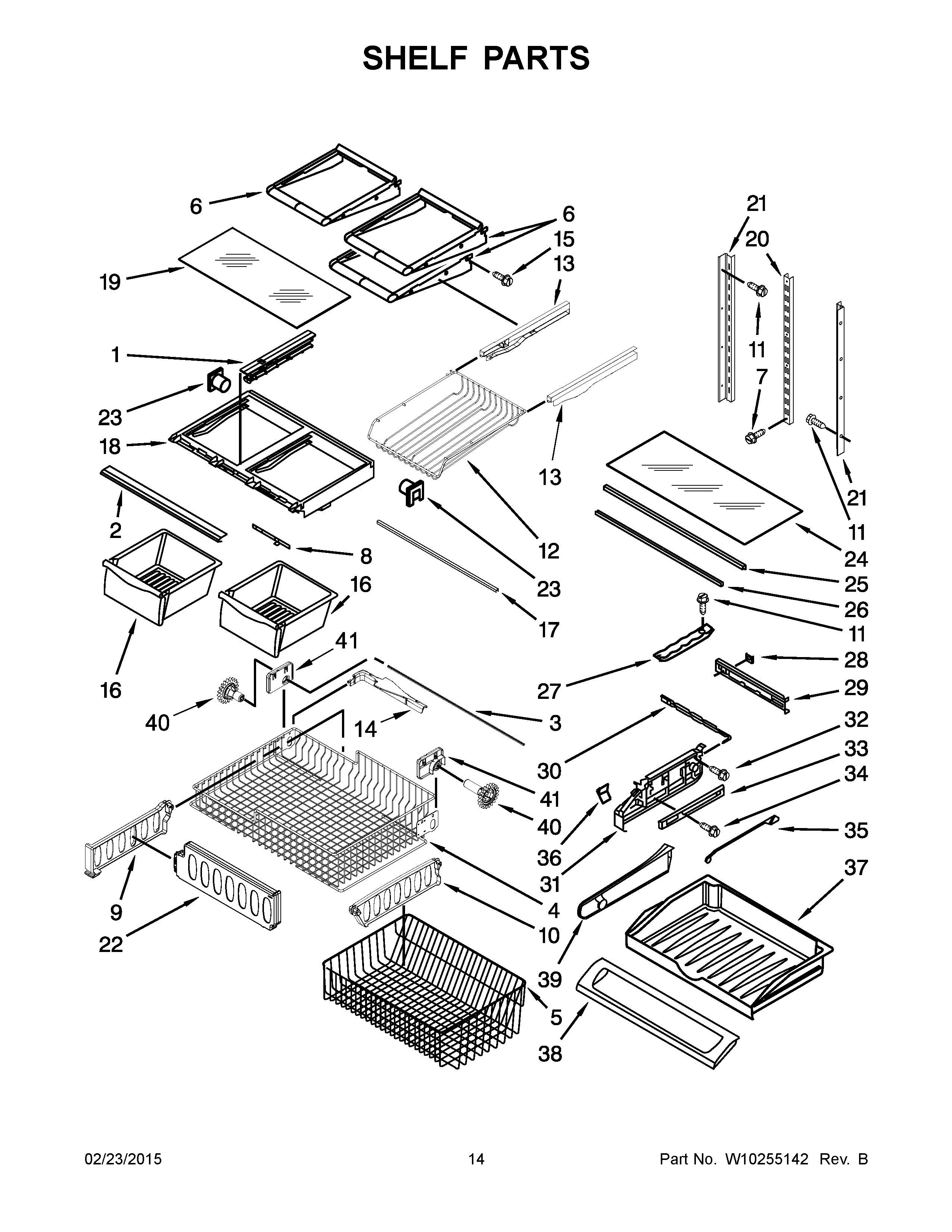

MFF2258VEW10 08 – SHELF PARTSadmin2025-04-26T09:10:27+00:00MFF2258VEW10 08 – SHELF PARTS
Products
| Position | Product |
|---|
| 1 | Rail, Center Crisper |
| 2 | TRIM, CRISPER |
| 3 | MAY 12812905WD |
| 4 | MAY W10169950 |
| 5 | MAY W10150038 |
| 6 | MAY 12463509 |
| 7 | MAY 12990515 |
| 8 | Slide, Humidity(2) |
| 9 | Divider, Upper Basket |
| 10 | MAY W10205416 |
| 11 | MAY 12990513 |
| 12 | MAY 12503803 |
| 13A | GLIDE, RACK (RIGHT) |
| 13 | GLIDE, RACK (LEFT) |
| 14 | MAY W10149389 |
| 15 | Screw (4) |
| 16 | PAN, CRISPER (2) |
| 17 | BRACE, CRISPER FRAME |
| 18 | Frame, Crisper |
| 19 | MAY 12204822 |
| 20 | MAY 12435807 |
| 21 | MAY 12710602 |
| 22 | DIVIDER-UPPER FZ |
| 23 | SUPPORT-LEFT |
| 23A | SUPPORT-RIGHT |
| 24 | MAY 12204820 |
| 25 | MAY 12655903 |
| 26 | MAY 12227301WD |
| 27 | TRACK, PANTRY |
| 28 | MAY 12656902 |
| 29 | MAY 13048301 |
| 30 | MAY 13048401 |
| 31A | MAY 13047701 |
| 31 | MAY 13047801 |
| 32 | MAY 12990504 |
| 33 | GLIDE, PANTRY |
| 34 | SCREW (2) |
| 35 | MAY 13048201 |
| 36 | KNOB, TEMP CONTROL |
| 37 | MAY 13048501SP |
| 38 | MAY 12656820 |
| 39 | MAY 13048601SP |
| 40A | MAY W10158749 |
| 40 | MAY W10146446 |
| 41A | MAY W10233899 |
| 41 | MAY W10233898 |
