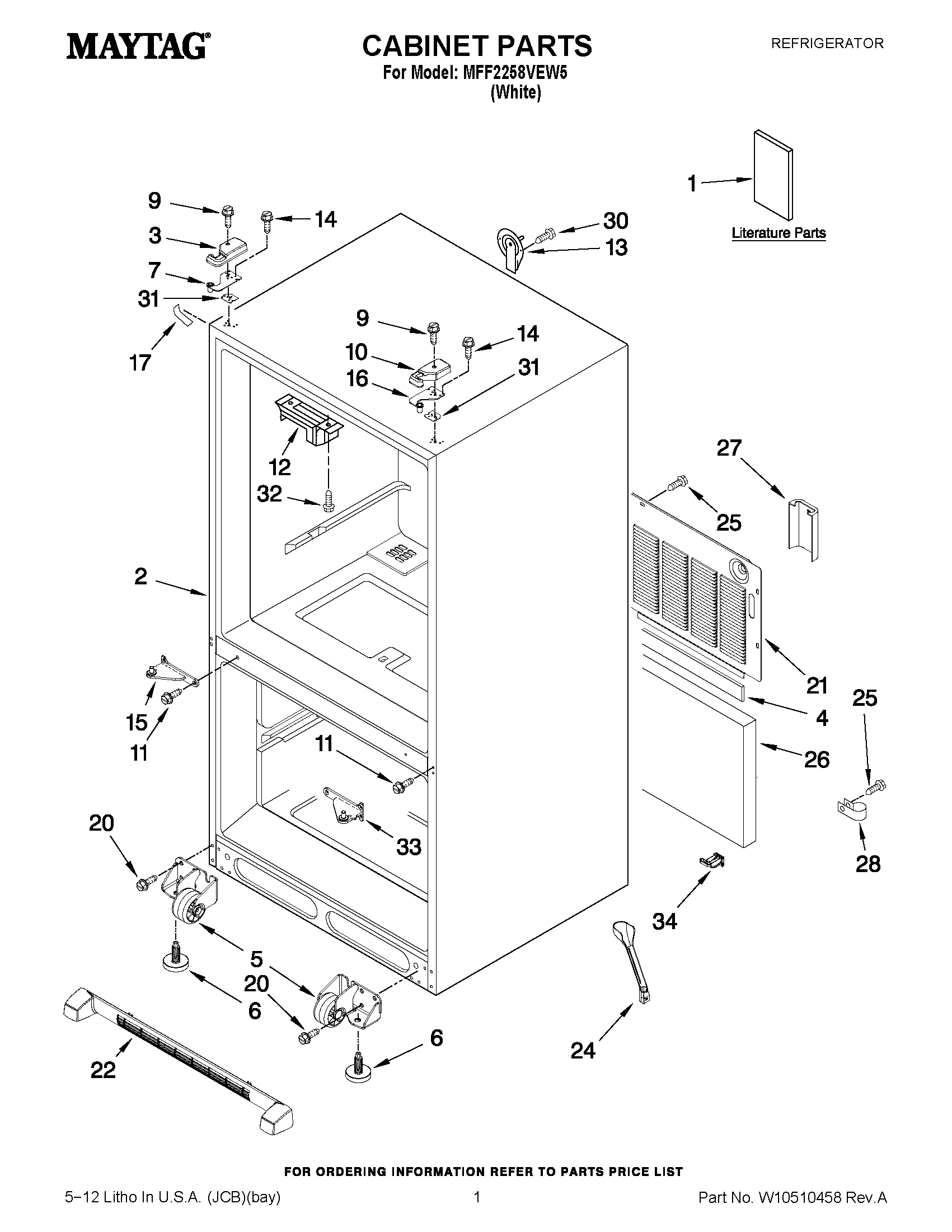

MFF2258VEW5 01 – CABINET PARTS

Products

Position	Product
1	MAY W10475386
1	MAY W10260549
1	MAY W10366206
2	LINER (NOT A SERVICEABLE PART)
3	MAY 12962301W
4	MAY B5759655
5	ROLLER ASSY. (FRONT) (LEFT)
5	ROLLER ASSY. (FRONT) (RIGHT)
6	Brake, Foot
7	MAY 12963204ED
9	MAY 12992602
10	MAY 12962302W
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15	Hinge, Center (LT) (White)
16	MAY 12963205ED
17	Cover, Corner (2) (White)
20	Screw (8)
21	MAY W10210979
22	GRILLE ASSEMBLY (INCLUDES CLIPS) (WHITE)
24	MAY W10210988
25	SCREW (10)
26	Insulation, Sound
27	GUARD-WATER VALVE
28	CLAMP, TUBE
30	MAY 12990504
31	MAY 12999501
31	MAY 12999502
32	Screw (4)
33	Hinge, Center (RT) (White)
34	MAY W10216614
