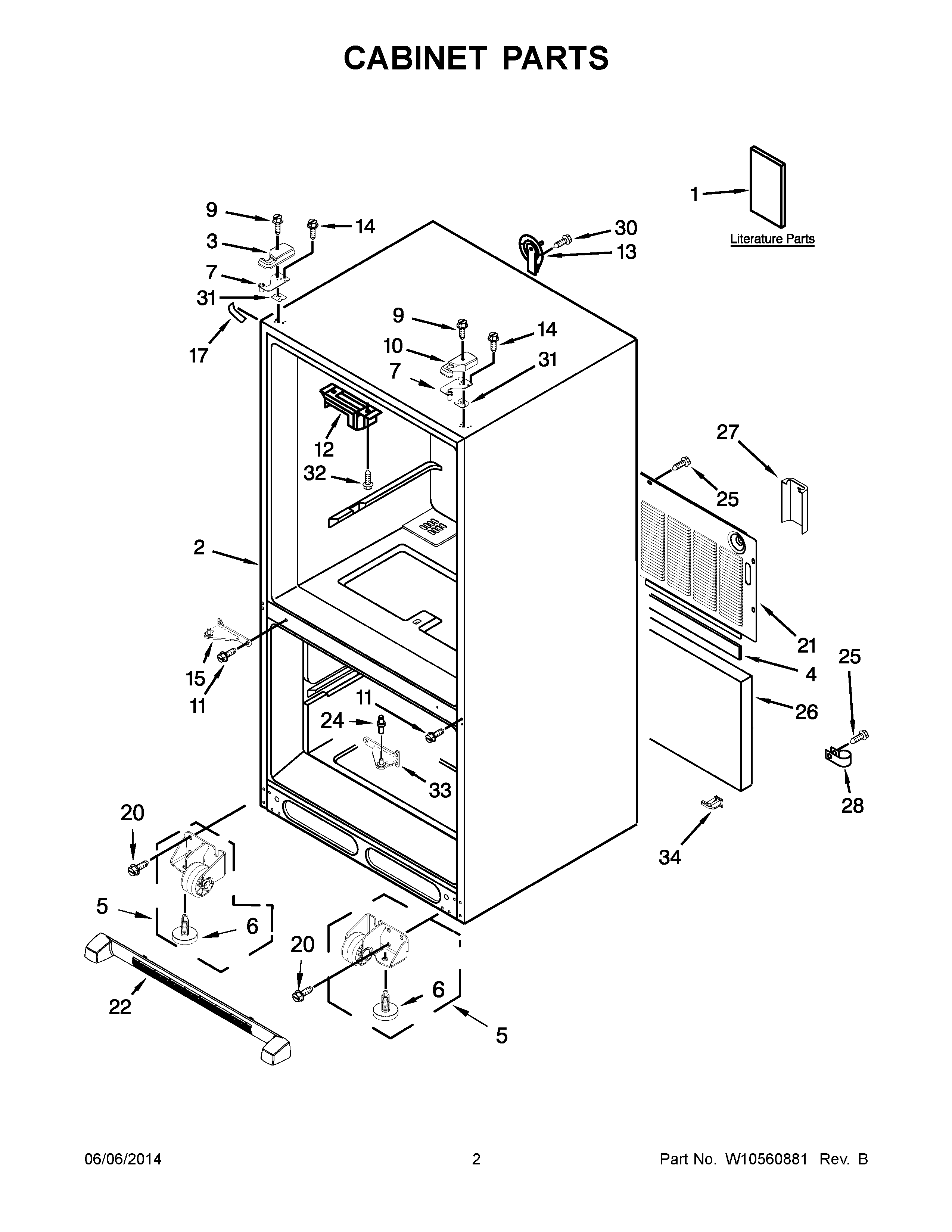

MFF2258VEW6 02 – CABINET PARTS

Products

PositionProduct
1MAY W10517966N
1MAY W10260549
1MAY W10366206
2LINER (NOT A SERVICEABLE PART)
3MAY 12962301W
4MAY B5759655
5ROLLER ASSEMBLY (LEFT HAND)
5ROLLER ASSEMBLY (RIGHT HAND)
6Brake, Foot
7MAY 12963205EDN
7MAY 12963204EDN
9MAY 12992602
10COVER, RIGHT HINGE (WHITE)
11MAY 12990101
12Block, Pivot
13MAY 12726003
14SCREW (6)
15Hinge, Center (LT) (White)
17Cover, Corner (2) (White)
20Screw (8)
21MAY W10210979
22ASSEMBLY, GRILLE (WHITE)
25SCREW (10)
26Insulation, Sound
27GUARD-WATER VALVE
28CLAMP, TUBE
30MAY 12990504
31MAY 12999502
32Screw (4)
33Hinge, Center (RT) (White)
34MAY W10485986
35MAY 10351006
