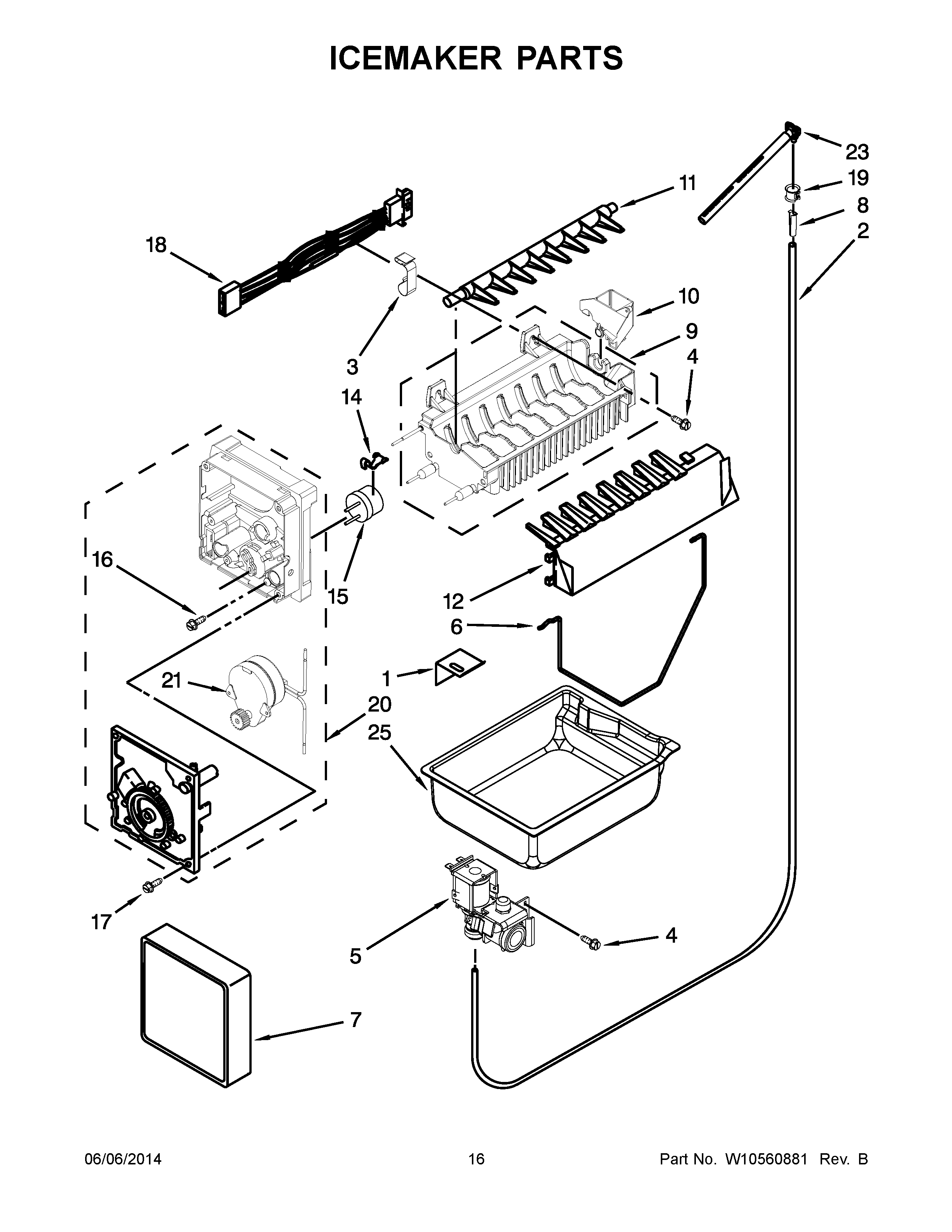

MFF2258VEW6 09 – ICEMAKER PARTS

Products

PositionProduct
1MAY 2256086
2MAY B5705333
3CLAMP, WIRE
4Screw (3)
5MAY W10498976
6ARM, SHUT OFF
7MAY W10377174
8MAY A3223101
9ASSEMBLY, MOLD AND HEATER
10MAY W10410073
11MAY W10318914
12ICE STRIPPER
14Clip
15MAY W10290336
16MAY 8533917
17Screw (3)
18MAY W10458985
19Clip
20ASSEMBLY, MODULE AND MOTOR
21LINER (NOT A SERVICEABLE PART)
23MAY 10463203
25MAY W10171529N
100ASSEMBLY, ICEMAKER (COMPLETE)
