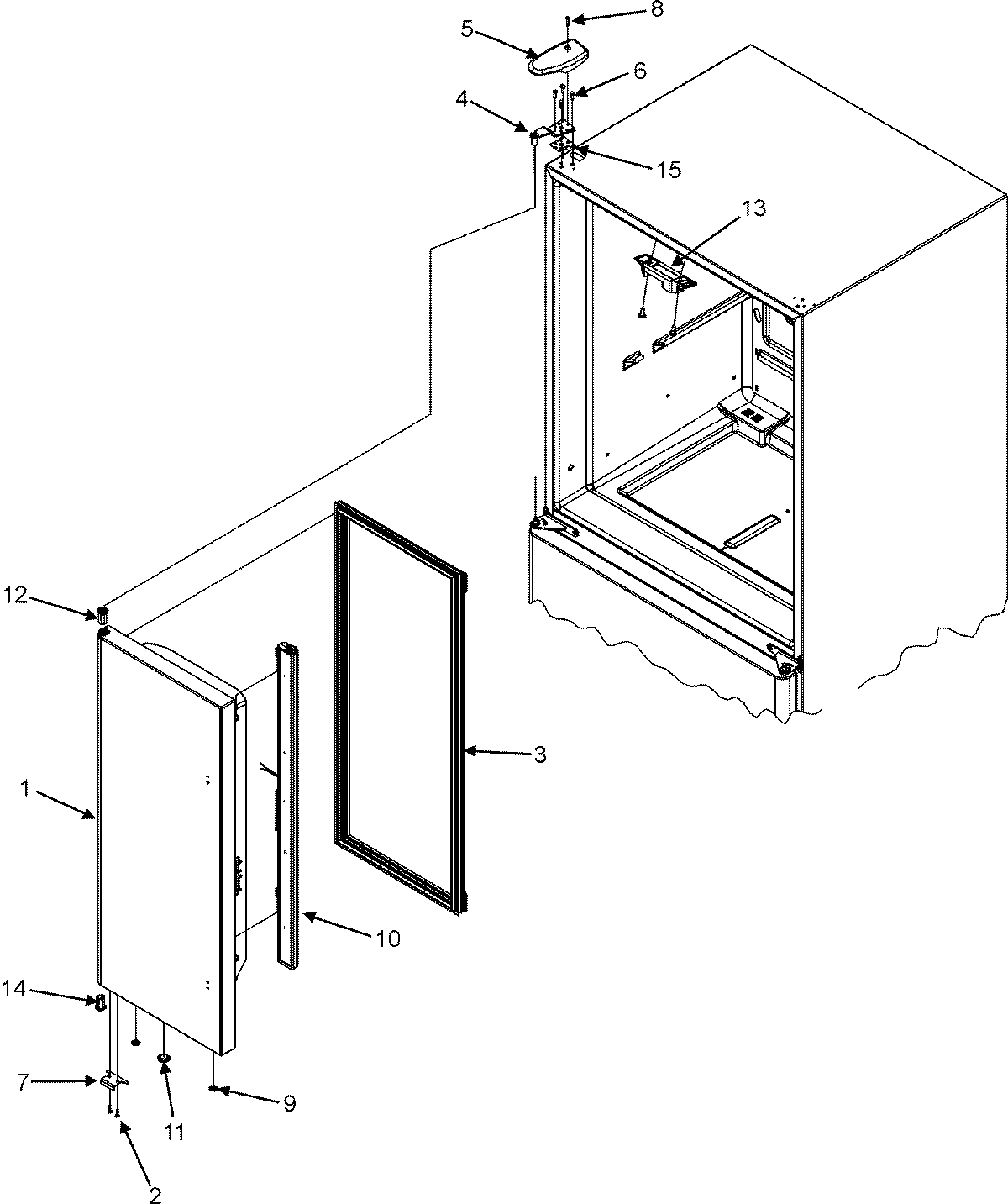

MFF2557HEQ 11 – LEFT REFRIGERATOR DOOR

MFF2557HEQ 11 – LEFT REFRIGERATOR DOOR

Written by

in

MFF2557HEQ 11 – LEFT REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67002711
2MAY M0211533
3W10830189 Whirlpool Refrigerator Door Gasket
4WP12566607ED Whirlpool Refrigerator Door Hinge
5COVER, TOP HINGE (LT-BSQ)
6MAY M0238731
767003781 Whirlpool Refrigerator Door Stop (BSQ)
8WP8281196 Whirlpool Screw
910712401 Whirlpool Refrigerator Vent Plug (White)
10RAIL-MULLN WHITE
10MAY 67004639
11MAY A3080002
12BUSHING, DOOR UPPER LEFT (WHITE)
13MAY M0214931
13WP67003405 Whirlpool Pivot Block
1467002722 Whirlpool Refrigerator White Door Bushing
15MAY 12579702
