MFF2557HES 07 – FREEZER SHELVES

MFF2557HES 07 – FREEZER SHELVES

Written by

in

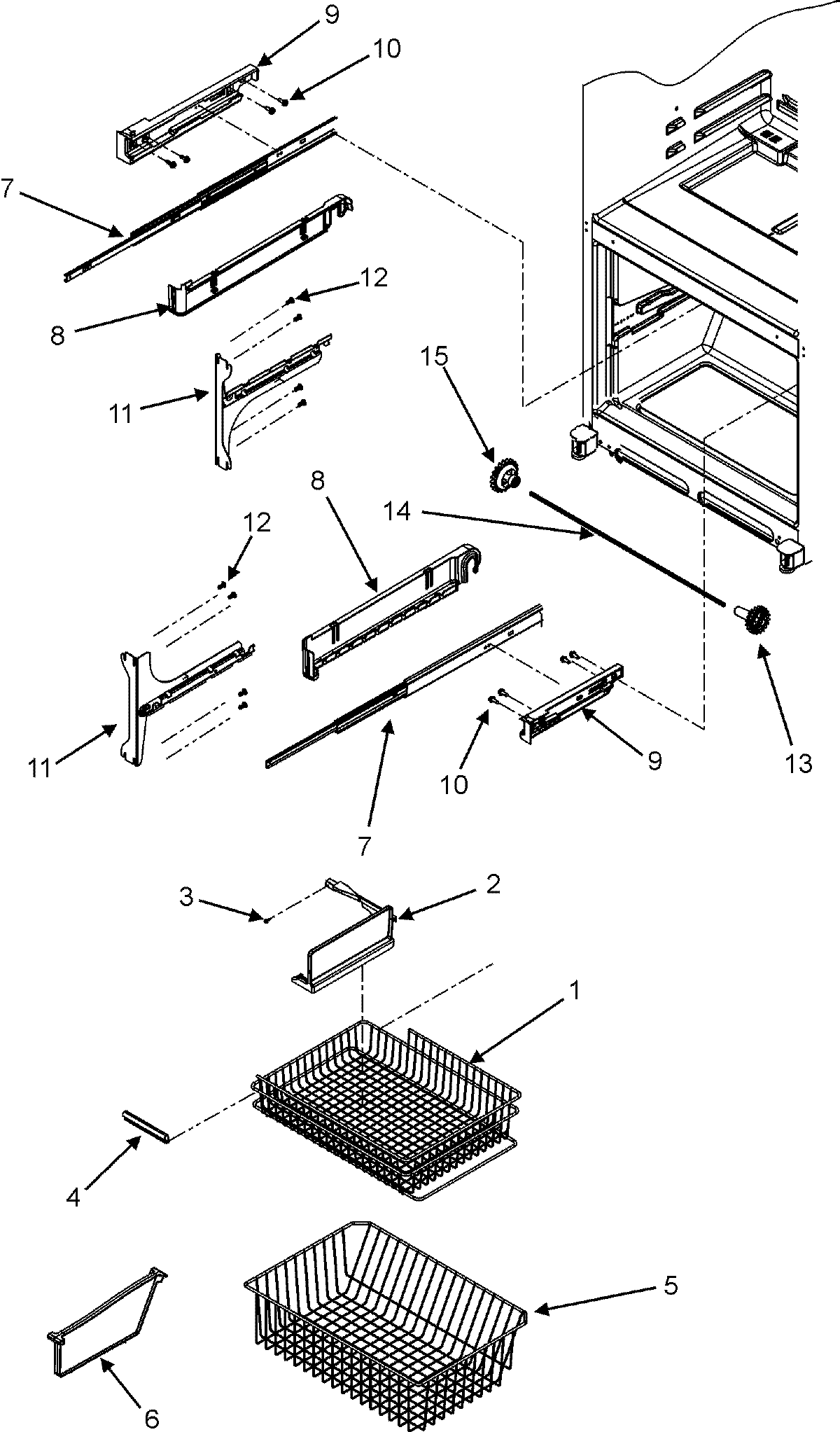

MFF2557HES 07 – FREEZER SHELVES

Products

PositionProduct
1MAY 67002765
2Divider, Upper Basket
3MAY 67001310
4HANDLE, BASKET/SHELF
5WPW10503184 Whirlpool Refrigerator Freezer Basket
6MAY 67004064
7MAY 67004065
8WPW10280608 Whirlpool Refrigerator Bracket
8WPW10280613 Whirlpool Refrigerator Bracket
9MAY 67004217
9MAY 67004218
10SCREW, SM
11BRACKET, DRAWER SLIDE (RT)
11BRACKET, DRAWER SLIDE (LT)
12MAY M0211018
13GEAR (LT)
14W11028221 Whirlpool Refrigerator Shaft
15GEAR (RT)
