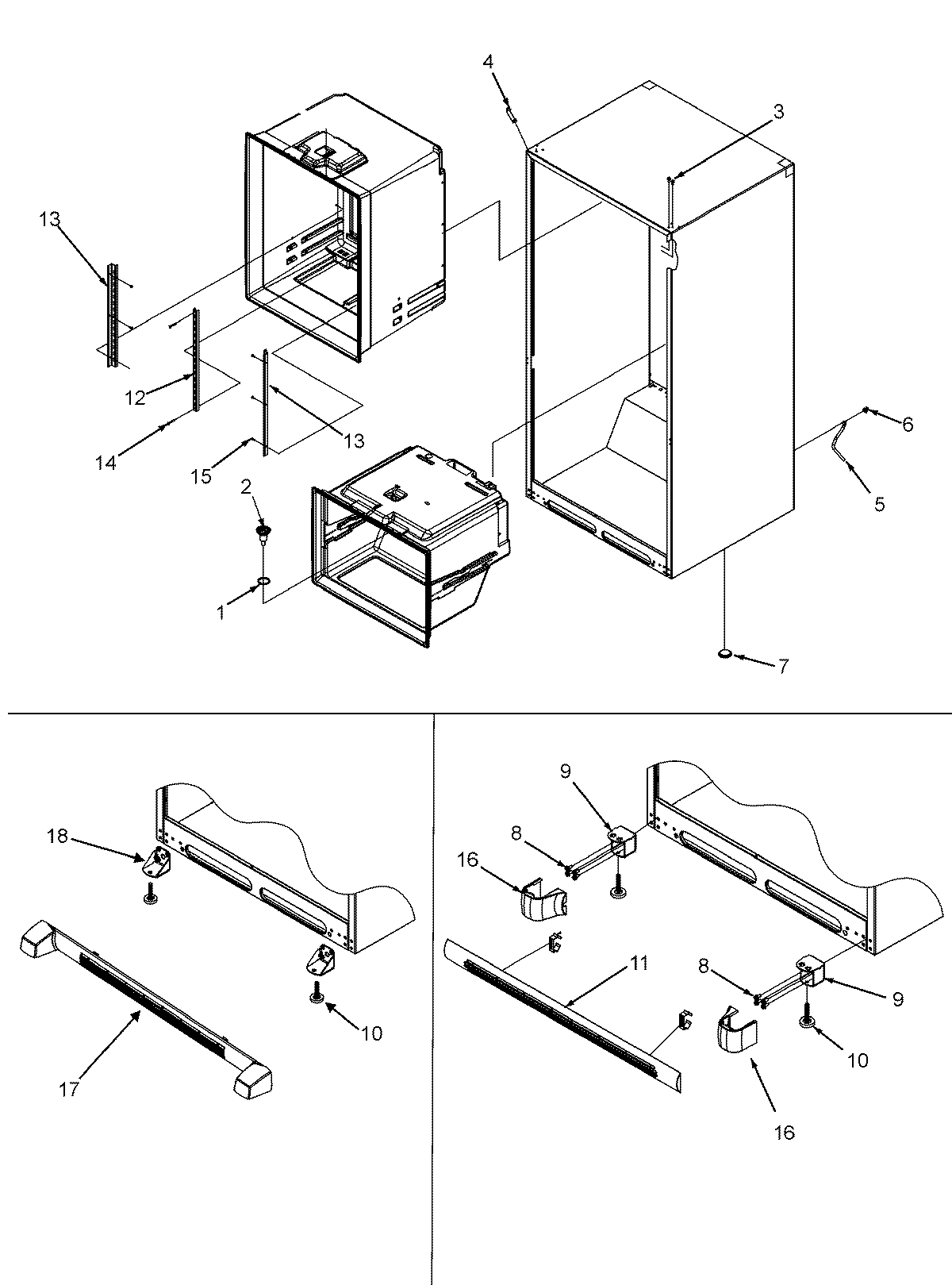

MFF2557HES 10 – INTERIOR CABINET & TOE GRILLE

MFF2557HES 10 – INTERIOR CABINET & TOE GRILLE

Written by

in

MFF2557HES 10 – INTERIOR CABINET & TOE GRILLE

Products

PositionProduct
1MAY M0500703
1Gasket
2MAY D7753903
3MAY A4539607
467003485 Whirlpool Refrigerator Corner Cover (Black)
5MAY 67001066
667001067 Whirlpool Refrigerator Drain Tube Clip
7A3076901 Whirlpool Refrigerator Plug
8MAY 67003858
9HINGE, BOTTOM E-CT (BLK)
10MAY 10354001
11WP67002224 Whirlpool Refrigerator Grille Assembly
11Clip, Grille
1267001073 Whirlpool Refrigerator Center Ladder
1367002489 Whirlpool Refrigerator Ladder L/R Side
14MAY M0231425
15SCREW, SM
16Cover, Lw Hinge (Black)
