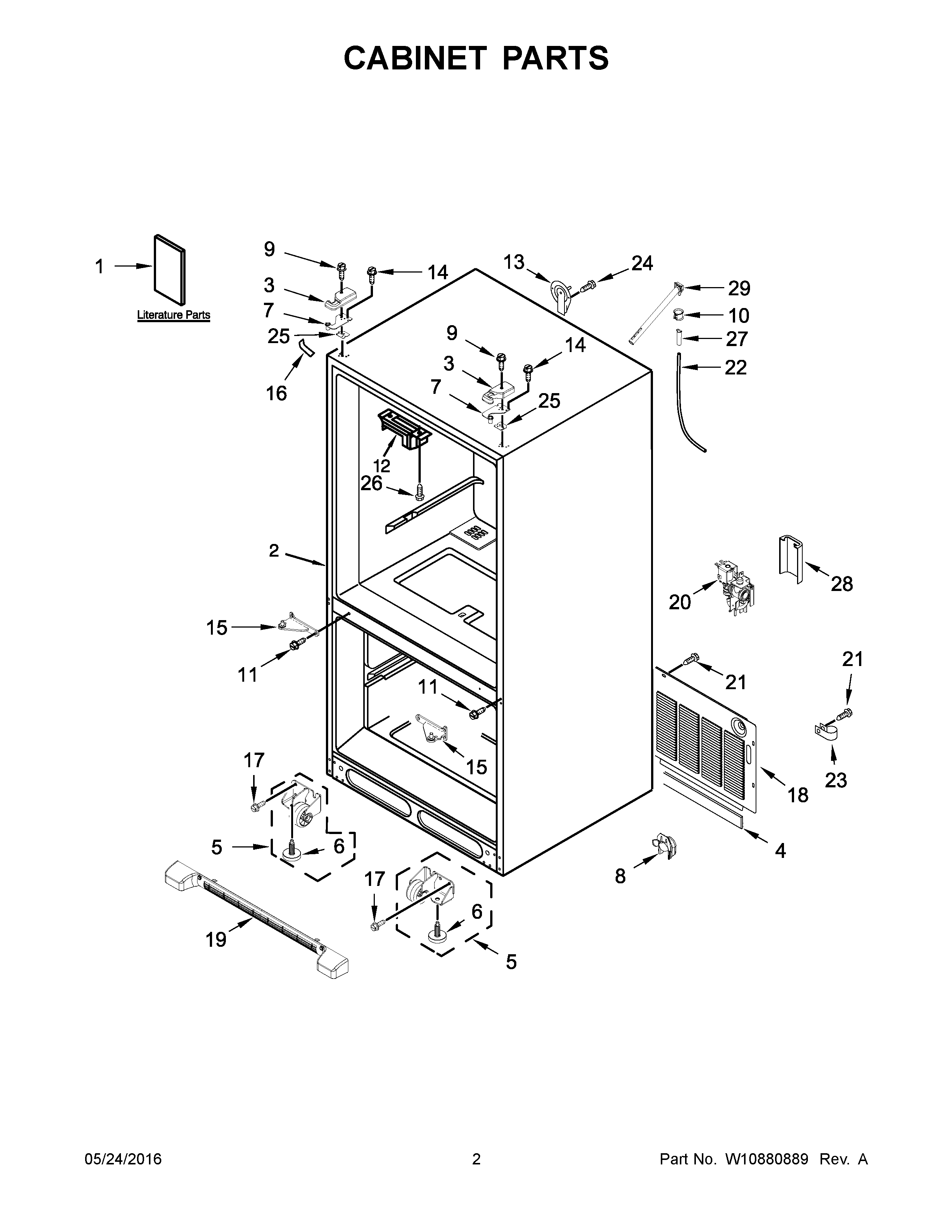

MFF2558FEE00 02 – CABINET PARTSadmin2025-04-26T09:11:08+00:00MFF2558FEE00 02 – CABINET PARTS
Products
| Position | Product |
|---|
| 1A | MAY W10847568 |
| 1 | MAY W10621529 |
| 1B | MAY W10517966N |
| 2 | LINER (NOT A SERVICEABLE PART) |
| 3B | COVER, TOP HINGE (LEFT) (GREY) |
| 3C | MAY 12962302W |
| 3D | MAY 12962302B |
| 3E | MAY 12962302AP |
| 3A | COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK) |
| 3 | MAY W10337634 |
| 4 | MAY B5759655 |
| 5 | ROLLER ASSEMBLY (LEFT HAND) |
| 5A | ROLLER ASSEMBLY (RIGHT HAND) |
| 6 | Brake, Foot |
| 7A | MAY 12963205ED |
| 7 | MAY 12963204ED |
| 8 | MAY W10485986 |
| 9 | MAY 12992602 |
| 10 | Clip |
| 11 | MAY 12990101 |
| 12 | Block, Pivot |
| 13 | MAY 12726003 |
| 14 | SCREW (6) |
| 15C | Hinge, Center (RT) (White) |
| 15 | Hinge, Center (LT) (White) |
| 15B | HINGE, CENTER (LT) (GREY) |
| 15D | HINGE, CENTER (BLACK, RIGHT ) |
| 15E | HINGE, CENTER (RT) (GREY) |
| 15A | HINGE, CENTER (BLACK, LEFT) |
| 16 | Cover, Corner (2) (White) |
| 16A | COVER, CORNER (BLACK) |
| 16B | COVER, CORNER (GREY) |
| 17 | MAY W10709365 |
| 18 | MAY W10211854 |
| 19 | GRILLE, TOE (WHITE) |
| 19B | MAY W10534155 |
| 19A | GRILLE, TOE (BLACK) |
| 20 | MAY W10498976 |
| 21 | SCREW (10) |
| 22 | MAY B5705333 |
| 23 | CLAMP, TUBE |
| 24 | MAY 12990504 |
| 25 | MAY 12999501 |
| 25A | MAY 12999502 |
| 26 | Screw (8) |
| 27 | MAY A3223101 |
| 28 | GUARD-WATER VALVE |
| 29 | MAY 10463203 |
