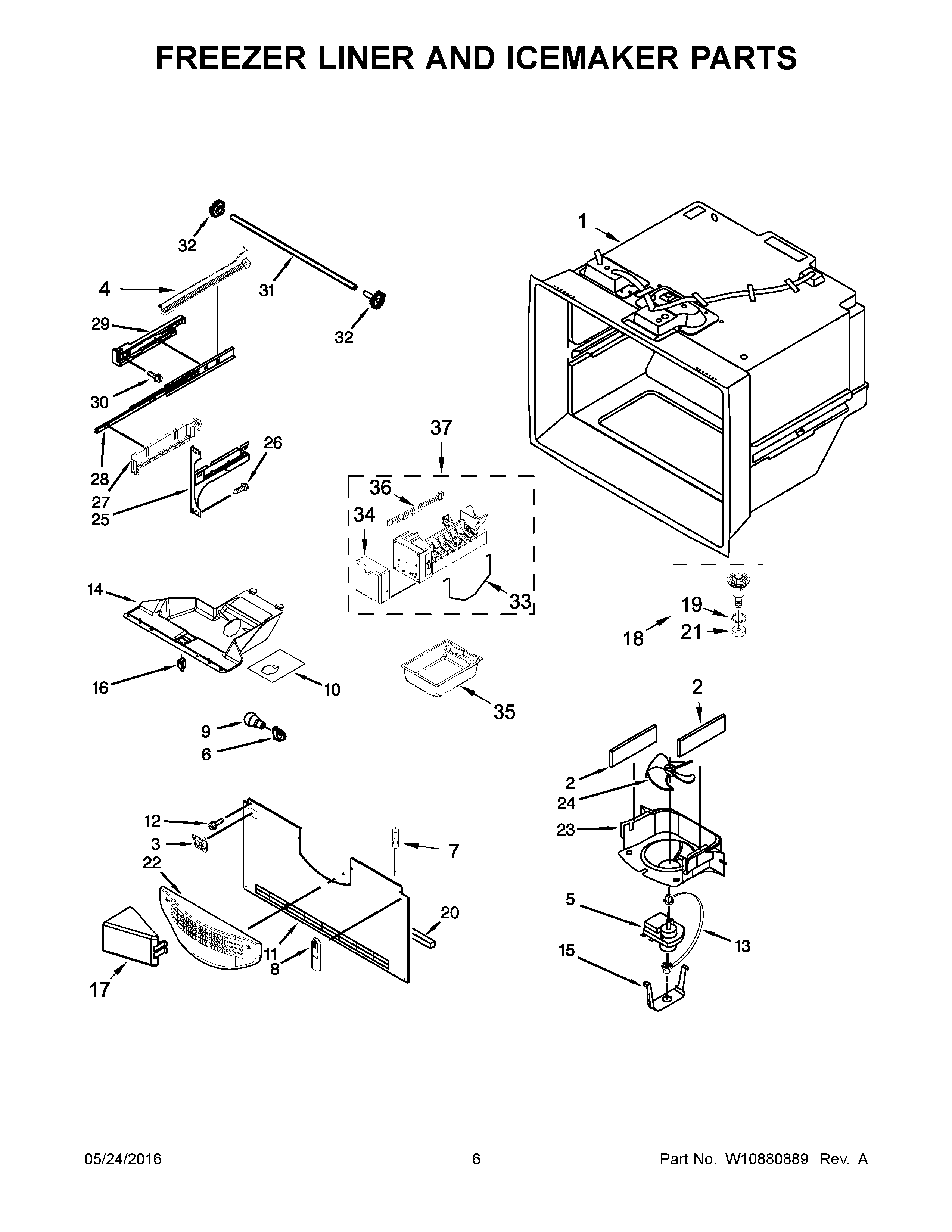

MFF2558FEE00 04 – FREEZER LINER AND ICEMAKER PARTS

Products

PositionProduct
1LINER (NOT A SERVICEABLE PART)
2Gasket, Bottom
3MAY 12932103
4AMAY W10516602
4MAY W10516603
5MAY W10128551
6W11447232 Whirlpool Refrigerator Socket
7MAY 12791409SP
8MAY 12815301
9MAY W10820003
10FOIL-FZ LIGHT
11MAY W10308416
12SCREW (10)
13MAY W10121318
14MODULE-FZ LIGHT
15CLIP, EVAP. MOTOR
16MAY 12466105
17MAY W10157765
18MAY W10662407
19MAY M0500703
20GASKET, BOTTOM
21Gasket
22Grille, Fz Air
23SHROUD, EVAP.FAN
24Blade, Fan (Evaporator)
25AMAY W10330993
25MAY W10330991
26Screw (8)
27ACRADLE-BASKET (RIGHT HAND)
27CRADLE-BASKET (LEFT HAND)
28MAY W10120018
29ADAPTER, SLIDE (LEFT HAND)
29AADAPTER, SLIDE (RIGHT HAND)
30Screw (6)
31MAY W10802332
3212002497 Whirlpool Refrigerator Drawer Gear Kit
33ARM-SHUT OFF
34COVER
35MAY W10740448N
36MAY W10793621
37ASSEMBLY, ICEMAKER (COMPLETE)
