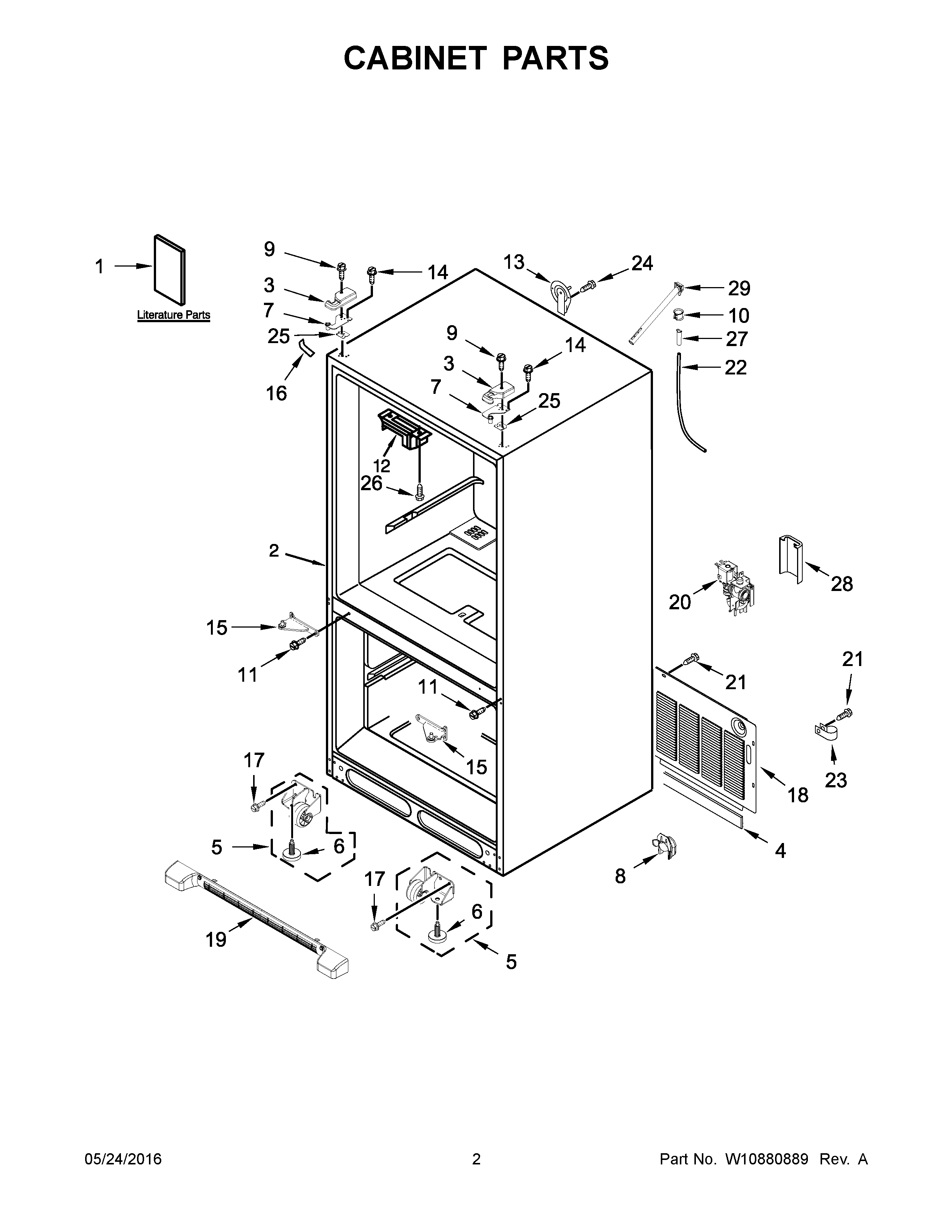

MFF2558FEH00 02 – CABINET PARTS

Products

Position	Product
1A	MAY W10847568
1	MAY W10621529
1B	MAY W10517966N
2	LINER (NOT A SERVICEABLE PART)
3B	COVER, TOP HINGE (LEFT) (GREY)
3C	MAY 12962302W
3D	MAY 12962302B
3E	MAY 12962302AP
3A	COVER, TOP HINGE LEFT HAND (INCLUDES FOIL) (BLACK)
3	MAY W10337634
4	MAY B5759655
5	ROLLER ASSEMBLY (LEFT HAND)
5A	ROLLER ASSEMBLY (RIGHT HAND)
6	Brake, Foot
7A	MAY 12963205ED
7	MAY 12963204ED
8	MAY W10485986
9	MAY 12992602
10	Clip
11	MAY 12990101
12	Block, Pivot
13	MAY 12726003
14	SCREW (6)
15C	Hinge, Center (RT) (White)
15	Hinge, Center (LT) (White)
15B	HINGE, CENTER (LT) (GREY)
15D	HINGE, CENTER (BLACK, RIGHT )
15E	HINGE, CENTER (RT) (GREY)
15A	HINGE, CENTER (BLACK, LEFT)
16	Cover, Corner (2) (White)
16A	COVER, CORNER (BLACK)
16B	COVER, CORNER (GREY)
17	MAY W10709365
18	MAY W10211854
19	GRILLE, TOE (WHITE)
19B	MAY W10534155
19A	GRILLE, TOE (BLACK)
20	MAY W10498976
21	SCREW (10)
22	MAY B5705333
23	CLAMP, TUBE
24	MAY 12990504
25	MAY 12999501
25A	MAY 12999502
26	Screw (8)
27	MAY A3223101
28	GUARD-WATER VALVE
29	MAY 10463203
