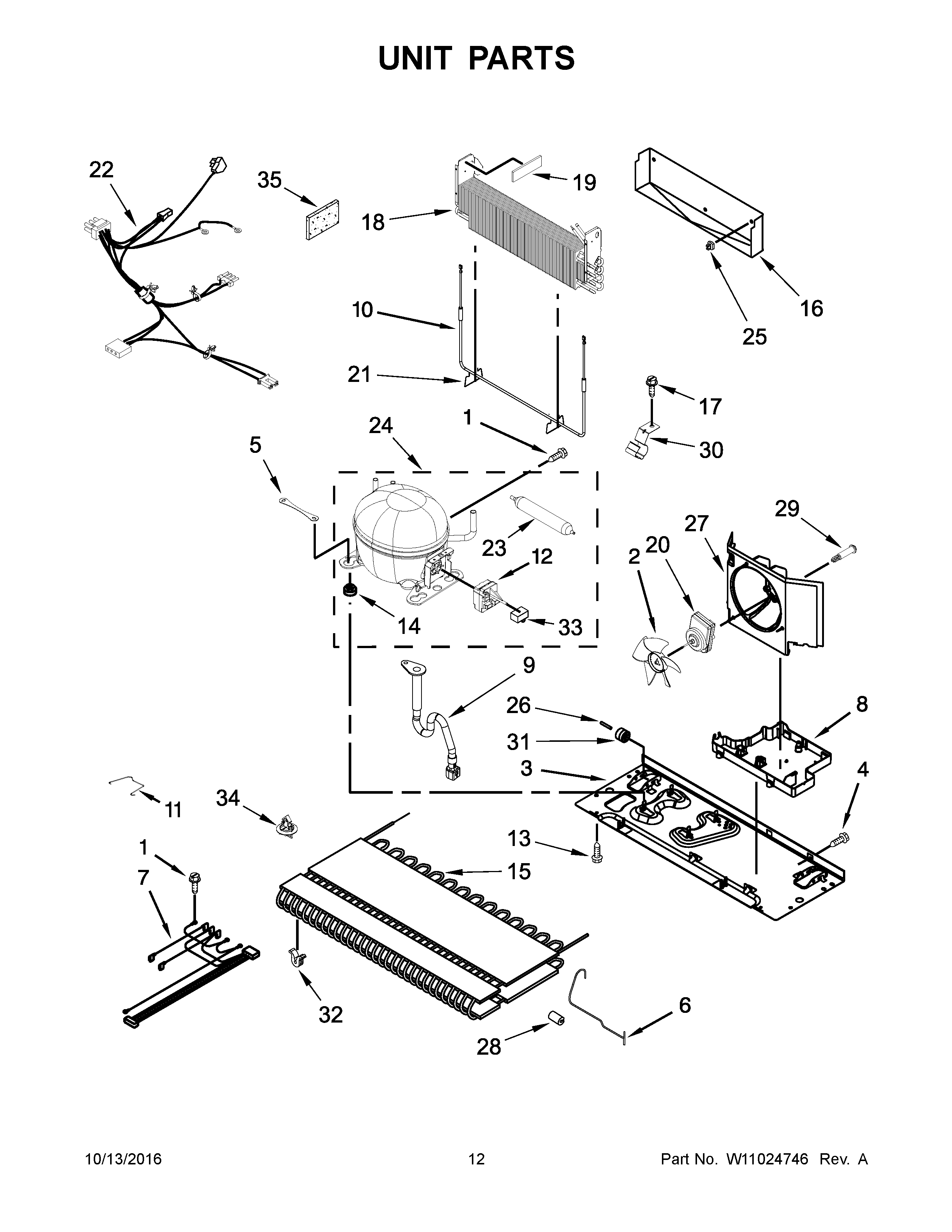

MFF2558FEW00 07 – UNIT PARTS

Products

Position	Product
NI	VALVE, ACCESS (3/8“)
NI	Valve, Access (5/8“)
NI	Valve, Access (5/16“)
NI	VALVE, ACCESS (1/4“)
NI	MAY 876764
NI	Valve, Access (1/2“)
NI	Valve, Access (3/4“)
NI	LINER (NOT A SERVICEABLE PART)
1	MAY 12992301
2	MAY 12825803
3	MAY W10480111
4	SCREW (10)
5	MAY W10236396
6	MAY W10233569
7	HARNESS, EVAPORATOR (INCLUDES HEATER)
8	MAY W10655368
9	EXTENSION, DRAIN TUBE
10	MAY 12729123
11	MAY W10216075
12	MAY W10796752
13	MAY 12992101
14	GROMMET
15	MAY W10346415
16	MAY W10292803
17	MAY 12990701
18	MAY W10317014
19	Gasket, Bottom
20	MAY W10609117
21	W11673433 Whirlpool Clip
22	MAY W10679216
23	Drier
24	MAY W10485433
25	MAY 10623002
26	Axle, Roller (2)
27	SHROUD
28	GROMMET, CONDENSER
29	MAY W10622701
30	MAY W10281329
31	Roller (2)
32	GROMMET, COND (4)
33	MAY W10350564
34	MAY W10815863
35	SEALER, INSULATION
